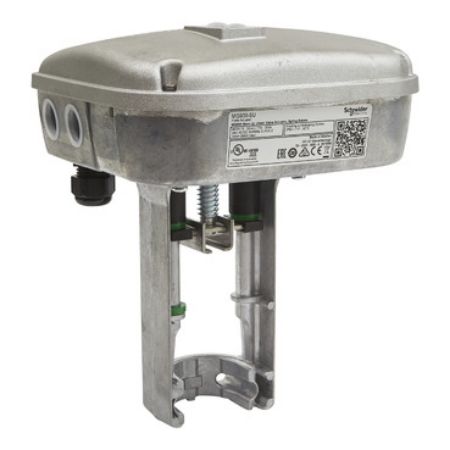

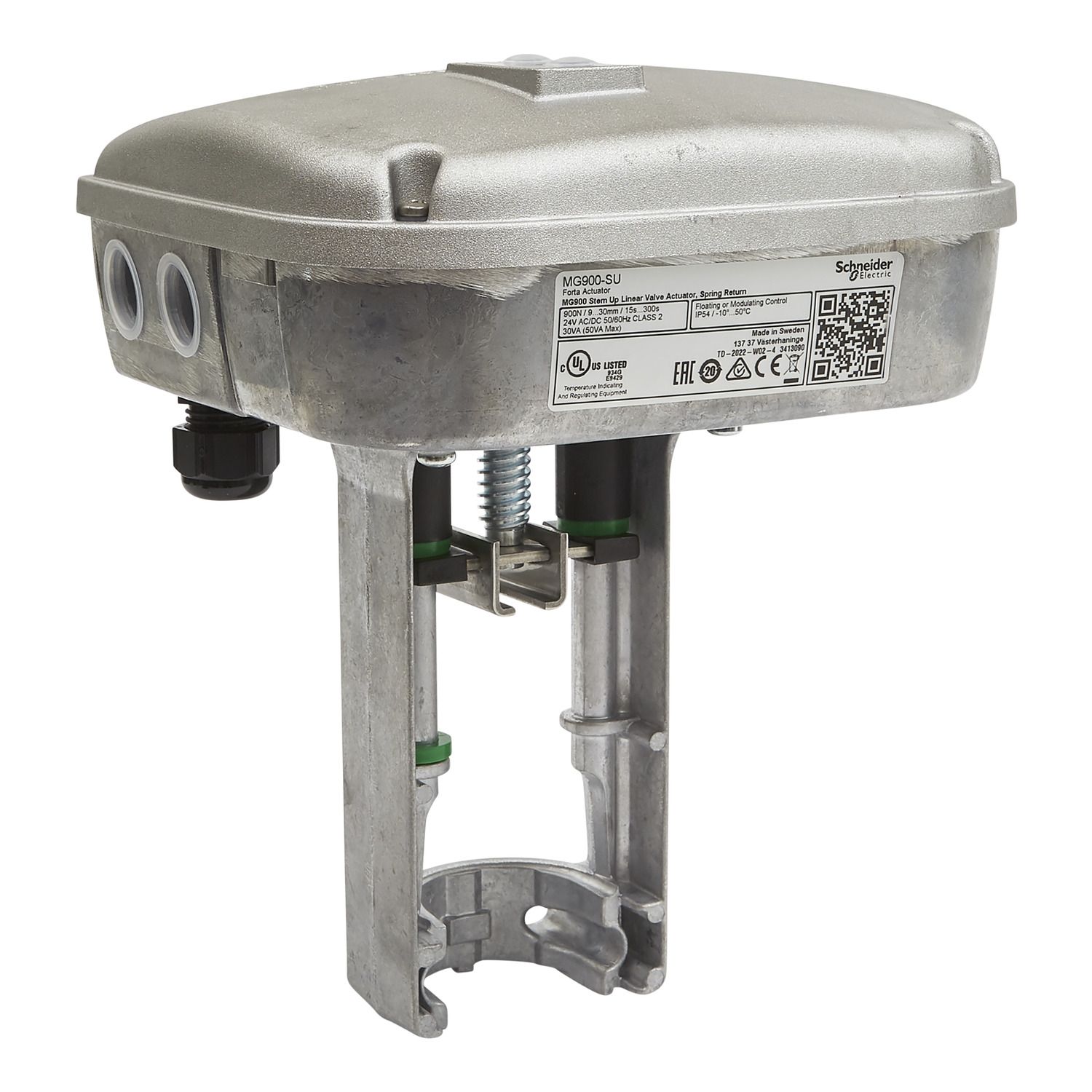

Picture of SpaceLogic MG900-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 900N, IP54
SKU:

MG900-SD

SpaceLogic MG900-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 900N, IP54

$1,357.06
Availability: Please contact our sales team on 1300 724 622.
SpaceLogic MG900-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 900N, IP54
  • Field selectable configuration
  • Selectable input signals: 0..10 Vdc, 2..10 Vdc, 0..5 Vdc, 2-6 Vdc, 5-10 Vdc, 6-10 Vdc
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) available as an optional accessory
  • Replaceable circuit board
  • High resolution / positional accuracy
  • One touch stroke calibration
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
The MG9 SR is a linear eletro-mechanicl actuator with spring return operation for the control of two-way and three way globe valves. The family of actuators utilise brushless DC motors and a high resolution control board allow a very fine fluid control in globe valves. The working range and end point switches of the actuator are adjusted automatically to the stroke of the valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the valve stroke. Spring return stem down (extend). Supply Voltage: 24 Vac. Force nomina: 9 N, enclosure rating: IP54. Position Feedback Output Signal: 2…1 Vdc, …5 Vdc. Stroke: 9-32 mm. Circuit board.

Products specifications

Attribute name Attribute value
Main
Force N 900 N
Switch function 2 SPDT (optional)
IP degree of protection IP54
Relative humidity 0-90 %
Ambient air temperature for storage -10-50 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Product destination globe valve
Control type automatic reset
Transformer rated power in VA 50 VA
Stroke length 9-30 mm
Power consumption in W 21 W
Analogue input range 0...10 V DC
Ambient air temperature for operation -10-50 °C
Hold-in power consumption in W 7-7 W
Stroke running time 15 s
Motor type brushless DC motor
Duty cycle 20 %
Product or component type actuator
Power consumption in VA 50 VA AC
Targeted region Australia., Asia Pacific., Europe
Force lbf 203 lbf
Actuator linear
Actuator model MG900
Control signal proportional/modulating, floating
Conduit connection gland for 6-9 mm O/D cable, 4 x 20 mm conduit hole
Leads and connections terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series MG900
Power loss return spring return
Feedback signal 2...10 V DC, 0...5 V DC
Stroke auto calibration True
Position indicator Stroke indicator on yoke
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.0 cm
Package 1 Width 31.5 cm
Package 1 Length 22.5 cm
Package 1 Weight 3.601 kg
