Picture of Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, Air NPT, Linear, N1
SKU:

MK-2690

Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, Air NPT, Linear, N1

$173.81 INC GST
Available for Shipping : 08-Dec-2025
Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, Air NPT, Linear, N1
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
Product Page Link
Product Data Sheet
Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, Air NPT, Linear, N1

Products specifications

Attribute name Attribute value
Main
Diaphragm effective area 6 in²
Material die cast aluminium: housing
IP degree of protection IP10
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-104.4 °C
Product destination globe valve
Control type manual override with 5/32 allen wrench
Product or component type actuator
Targeted region North America.
Actuator linear
Ambient air temperature for operation -28.8-104.4 °C
Power loss return spring return
Positioner False
Material diaphragm neoprene
Control signal proportional/modulating, 2-position (on/off)
Lead length 1/8 in
Stroke auto calibration False
Leads and connections air NPT
Control spring range 8...13 psig, 5...10 psig, 3...7 psig
Actuator type pneumatic
Actuator product series MK-2690
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 9.5 cm
Package 1 Length 8.3 cm
Package 1 Weight 0.454 kg

Related products

Picture of Pneumatic Relays, Positive Positioner Pneumatic Relay, Start Point Adjustable 1-12 PSIG, Span Adjustable 2-13 PSIG

Pneumatic Relays, Positive Positioner Pneumatic Relay, Start Point Adjustable 1-12 PSIG, Span Adjustable 2-13 PSIG

AK-42309-500
$684.36 INC GST
View Detail
Picture of Barber-Colman, Pneumatic Actuator Valve Linkage Kit, assemble MK-2690 pneumatic actuator to VB-7xxx and VB-9xxx valves

Barber-Colman, Pneumatic Actuator Valve Linkage Kit, assemble MK-2690 pneumatic actuator to VB-7xxx and VB-9xxx valves

AV-400
$64.89 INC GST
View Detail
Picture of Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 5.5 Cv

Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 5.5 Cv

VB-7213-0-4-05
$338.39 INC GST
View Detail
Picture of Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 20 Cv

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 20 Cv

VB-7213-0-4-09
$476.90 INC GST
View Detail
Picture of Venta, Globe Valve, 1/2 in, 2-way, Straight Union NPT, Stem Up Closed, Brass, 4.4 cv

Venta, Globe Valve, 1/2 in, 2-way, Straight Union NPT, Stem Up Closed, Brass, 4.4 cv

VB-7221-0-4-04
$238.83 INC GST
View Detail
Picture of Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 2.2 Cv

Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 2.2 Cv

VB-7223-0-4-03
$333.33 INC GST
View Detail
Picture of Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 4.4 Cv

Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 4.4 Cv

VB-7223-0-4-04
$342.82 INC GST
View Detail

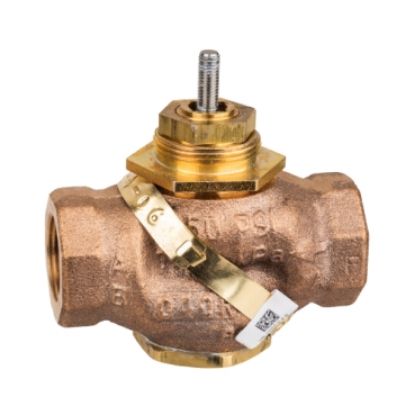

Picture of Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up closed, brass trim, 7.5 Cv
