Picture of Act (MK-6621): Pneu, Prop, 8-13 PSIG, SR, Air NPT, Linear, N1
SKU:

MK-6621

Act (MK-6621): Pneu, Prop, 8-13 PSIG, SR, Air NPT, Linear, N1

$962.66 INC GST
Available for Shipping : 12-Jan-2026
Act (MK-6621): Pneu, Prop, 8-13 PSIG, SR, Air NPT, Linear, N1
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Product Page Link
Product Data Sheet
Act (MK-6621): Pneu, Prop, 8-13 PSIG, SR, Air NPT, Linear, N1

Products specifications

Attribute name Attribute value
Main
Product destination globe valve
Control type manual override with 5/32 allen wrench
Product or component type actuator
Targeted region North America.
Diaphragm effective area 50 in²
Material die cast aluminium: housing
IP degree of protection IP10
Ambient air temperature for storage -40-104.4 °C
Actuator linear
Ambient air temperature for operation -28.8-104.4 °C
Stroke auto calibration False
Power loss return spring return
Leads and connections air NPT
Positioner False
Control spring range 8...13 psig
Actuator type pneumatic
Material diaphragm neoprene
Control signal proportional/modulating
Actuator product series MK-6600
Lead length 1/8 in
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.7 cm
Package 1 Width 25.0 cm
Package 1 Length 32.9 cm
Package 1 Weight 1.383 kg

Related products

Picture of Pneumatic Relays, Positive Positioner Pneumatic Relay, Start Point Adjustable 1-12 PSIG, Span Adjustable 2-13 PSIG

Pneumatic Relays, Positive Positioner Pneumatic Relay, Start Point Adjustable 1-12 PSIG, Span Adjustable 2-13 PSIG

AK-42309-500
$684.36 INC GST
View Detail
Picture of Valve Linkage Kits: MK-66X1, MK-68X1, and MK-6911 as well as the obsolete MK-47X1 Acts

Valve Linkage Kits: MK-66X1, MK-68X1, and MK-6911 as well as the obsolete MK-47X1 Acts

AV-430
$338.39 INC GST
View Detail
Picture of Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 5.5 Cv

Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 5.5 Cv

VB-7213-0-4-05
$338.39 INC GST
View Detail
Picture of Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 20 Cv

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 20 Cv

VB-7213-0-4-09
$476.90 INC GST
View Detail
Picture of Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 2.2 Cv

Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 2.2 Cv

VB-7223-0-4-03
$333.33 INC GST
View Detail
Picture of Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 4.4 Cv

Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 4.4 Cv

VB-7223-0-4-04
$342.82 INC GST
View Detail
Picture of Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up closed, brass trim, 7.5 Cv

Venta, Globe Valve, 3/4 in, 2-way, straight threaded NPT, stem up closed, brass trim, 7.5 Cv

VB-7223-0-4-06
$395.94 INC GST
View Detail

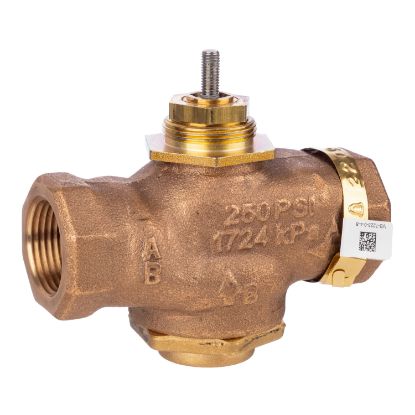

Picture of Venta, Globe Valve, 1 in, 2-way, straight threaded NPT, stem up closed, brass trim, 14 Cv
