Picture of Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1
SKU:

MK-6811

Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1

$920.92 INC GST
Available for Shipping : 12-Jan-2026
Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Product Page Link
Product Data Sheet
Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1

Products specifications

Attribute name Attribute value
Main
Product destination globe valve
Control type manual override with 5/32 allen wrench
Product or component type actuator
Targeted region North America.
Diaphragm effective area 50 in²
Material die cast aluminium: housing
IP degree of protection IP10
Ambient air temperature for storage -40-104.4 °C
Actuator linear
Ambient air temperature for operation -28.8-104.4 °C
Stroke auto calibration False
Power loss return spring return
Leads and connections air NPT
Positioner False
Control spring range 5...10 psig
Actuator type pneumatic
Material diaphragm neoprene
Control signal proportional/modulating
Actuator product series MK-6800
Lead length 1/8 in
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.384 cm
Package 1 Width 27.178 cm
Package 1 Length 32.258 cm
Package 1 Weight 5.860 kg

Related products

Picture of Pneumatic Relays, Positive Positioner Pneumatic Relay, Start Point Adjustable 1-12 PSIG, Span Adjustable 2-13 PSIG

Pneumatic Relays, Positive Positioner Pneumatic Relay, Start Point Adjustable 1-12 PSIG, Span Adjustable 2-13 PSIG

AK-42309-500
$684.36 INC GST
View Detail
Picture of Linkage Kit: For Assembling MP-9000 Series Acts on 4 to 6" VB-9x13 Valve Bodies

Linkage Kit: For Assembling MP-9000 Series Acts on 4 to 6" VB-9x13 Valve Bodies

AV-495
$217.58 INC GST
View Detail

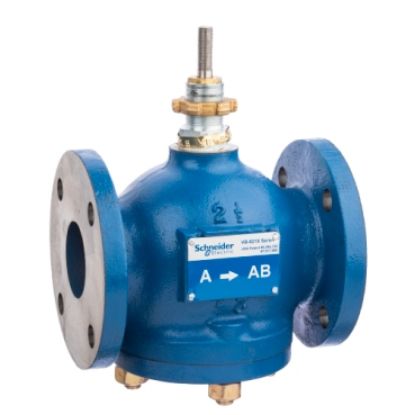

Picture of Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up open, brass trim, 56 Cv, balanced plug technology

Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up open, brass trim, 56 Cv, balanced plug technology

VB-8213-0-5-12
$2,147.97 INC GST
View Detail
Picture of Schneider Electric, Globe Valve, 3 in, 2-way, flanged cast iron body, stem up open, brass trim, 85 Cv, balanced plug technology

Schneider Electric, Globe Valve, 3 in, 2-way, flanged cast iron body, stem up open, brass trim, 85 Cv, balanced plug technology

VB-8213-0-5-13
$2,218.81 INC GST
View Detail
Picture of Schneider Electric, Globe Valve, 4 in, 2-way, flanged cast iron body, stem up open, brass trim, 145 Cv, balanced plug technology

Schneider Electric, Globe Valve, 4 in, 2-way, flanged cast iron body, stem up open, brass trim, 145 Cv, balanced plug technology

VB-8213-0-5-14
$3,134.67 INC GST
View Detail

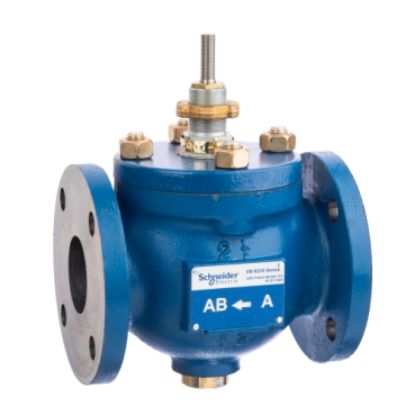

Picture of Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up closed, brass trim, 56 Cv, balanced plug technology
