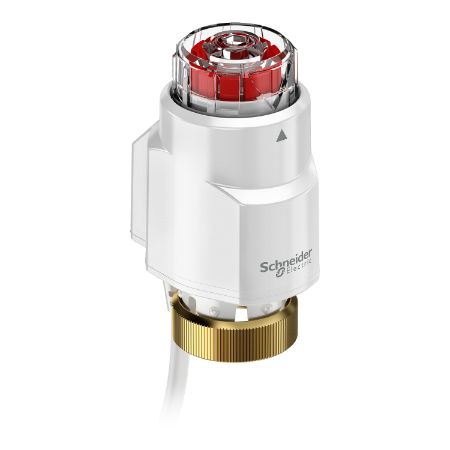

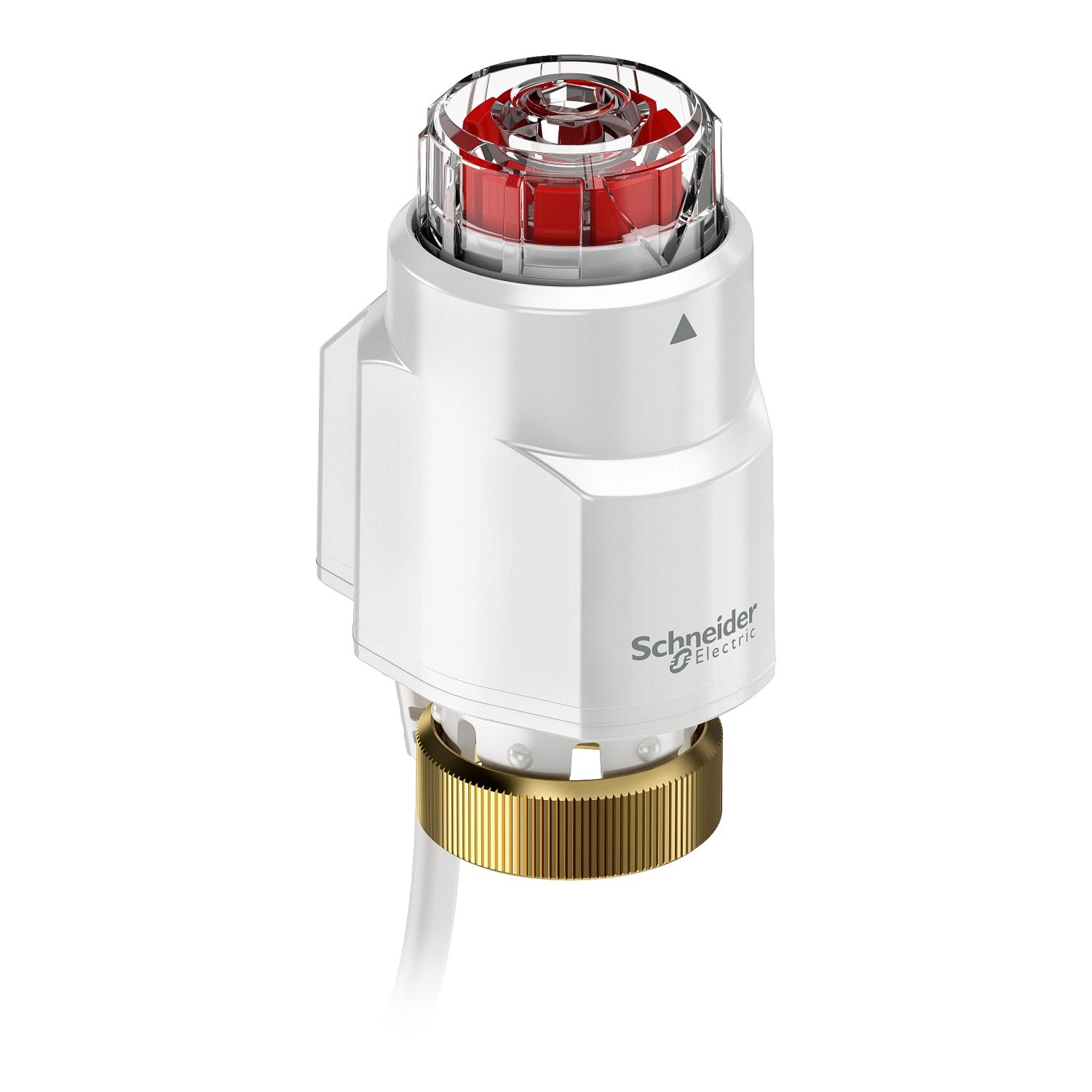

Picture of MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 230Vac, 120N, IP44
SKU:

MP120NC-230T

MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 230Vac, 120N, IP44

$67.07 INC GST
Available for Shipping : 23-Jan-2025
MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 230Vac, 120N, IP44
  • Use with RP-C controller in PWM mode for efficient low cost modulating control
  • Silent operation
  • Twisted Manual Override Cap Design Allows Flow through the valve
  • See through Position indication in Manual Override CAP
  • For VP228E / VP229E PIBCV Valves
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
The MP120 is a small thermoelectric valve actuator in zone applications for time-controlled two-point and pulse-widthmodulated (PWM) regulation of the SpaceLogic PIBCV valves, from DN10 to DN32. The MP120 has a silent low power operation with a manual override operation for easy flushing. No mounting tools required (easily mounted using valve adapter). Low power consumption – allowing many actuators to be driven from the same controller, Water-protected housing design in all mounting positions. Power Supply: 230 Vac +1%...-15%. Stem Force: 12 N, Normally Closed (stem down). Protection standard IP44 in all mounting positions. Max. stroke 8 mm. M3 x 1.5 valve connection.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in W 2-2 W
Product destination pressure independent control valves
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Complementary
Force N 120 N
Material polycarbonate: housing
[Us] rated supply voltage 220 V AC
Control type automatic reset
Stroke length 6.5-6.5 mm
Power consumption in W 2 W
Force lbf 27 lbf
Actuator linear
Environment
IP degree of protection IP44
Relative humidity 0-95 % RH, non-condensing
Ambient air temperature for storage -45-60 °C
Ambient air temperature for operation 2-50 °C
Control signal 2-position (on/off)
Lead length 1.5 m
Leads and connections removable cable
Actuator type thermoelectric
Actuator product range SmartX Actuator
Actuator product series MP120
Position indicator stroke indicator in top cap
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 5.0 cm
Package 1 Length 5.0 cm
Package 1 Weight 120.0 g
Unit Type of Package 2 2
Number of Units in Package 2 21
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.71 kg
