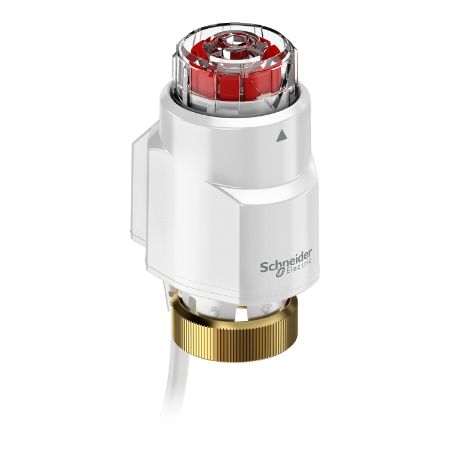

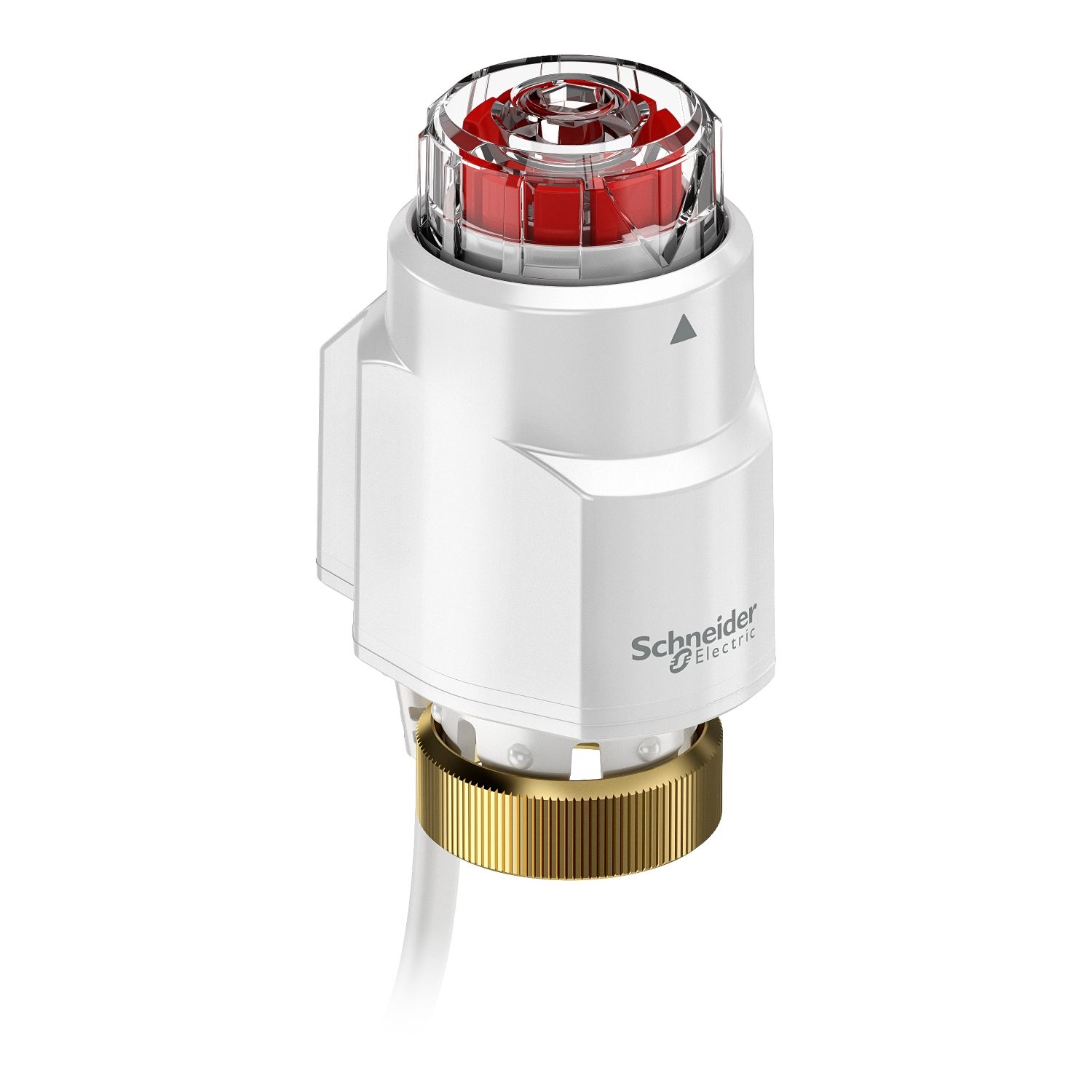

Picture of MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 24Vac, 120N, IP45
SKU:

MP120NC-24T

MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 24Vac, 120N, IP45

Please Contact Sales to buy this Product. click here
MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 24Vac, 120N, IP45
  • Use with RP-C controller in PWM mode for efficient low cost control
  • Silent operation
  • Twisted Manual Override Cap Design Allows Flow through the valve
  • See through Position indication in Manual Override CAP
  • For VP228E / VP229E PIBCV Valves
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
The MP120 is a small thermoelectric valve actuator in zone applications for time-controlled two-point and pulse-widthmodulated (PWM) regulation of the SpaceLogic PIBCV valves, from DN10 to DN32. The MP120 has a silent low power operation with a manual override operation for easy flushing. No mounting tools required (easily mounted using valve adapter). Low power consumption – allowing many actuators to be driven from the same controller, Water-protected housing design in all mounting positions. Power Supply: 24 Vac/dc +/- 2%. Stem Force: 12 N, Normally Closed (stem down). Protection standard IP44 in all mounting positions. Max. stroke 8 mm. M3 x 1.5 valve connection.
