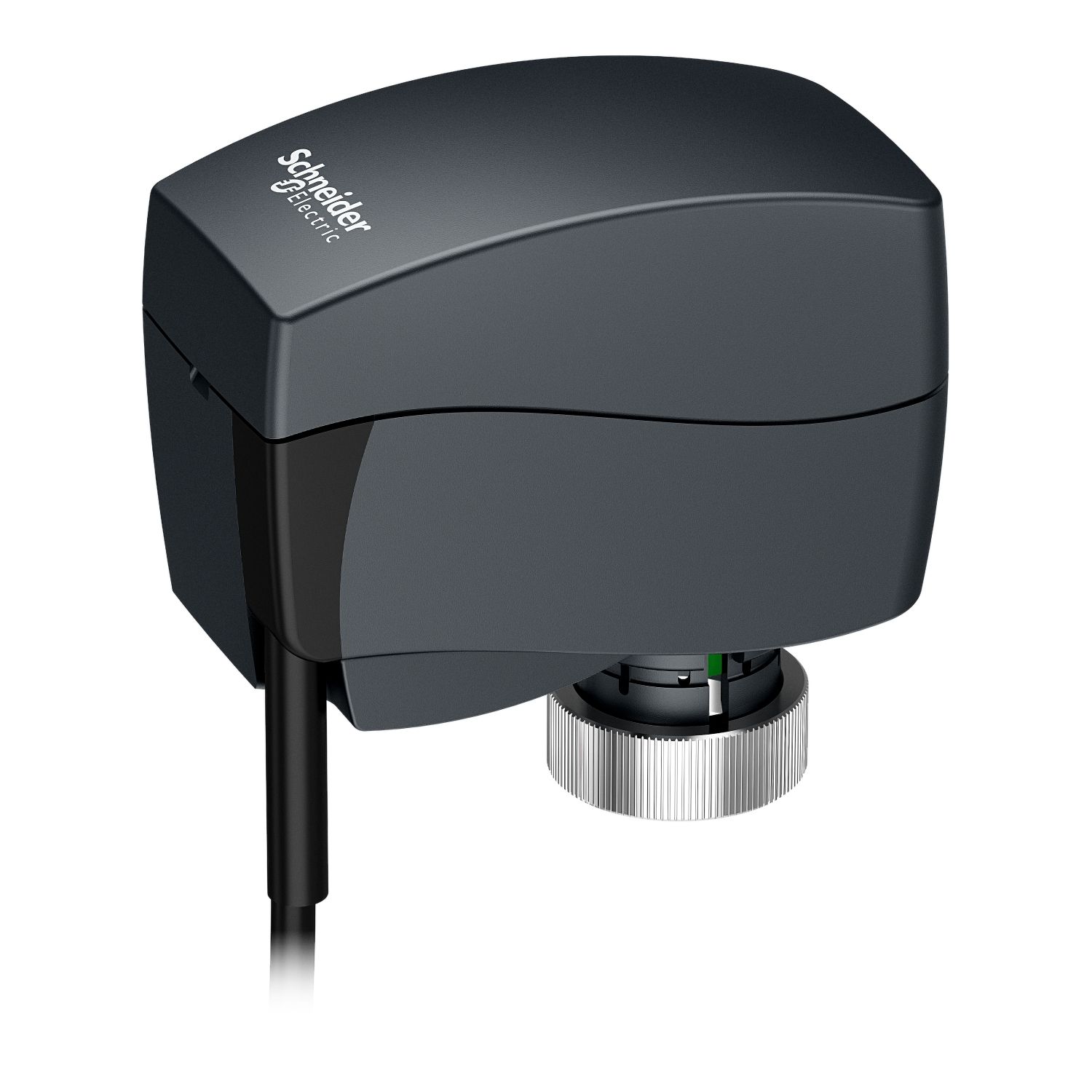

Picture of SpaceLogic MP130 PIBCV Actuator, Floating, Non-Spring Return, 24Vac, 130N, 10m cable, IP42
SKU:

MP130-24F-10M

SpaceLogic MP130 PIBCV Actuator, Floating, Non-Spring Return, 24Vac, 130N, 10m cable, IP42

$255.56 INC GST
Available for Shipping : 20-Feb-2025
SpaceLogic MP130 PIBCV Actuator, Floating, Non-Spring Return, 24Vac, 130N, 10m cable, IP42
  • 3 Wire Floating Control (Increase/Decrease)
  • Compact construction
  • Manual Override
  • Quiet Operation
  • 10 m cable
  • Zero Power consumption when in standby
  • For VP228E / VP229E PIBCV Valves
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
The MP130-24F is 3 wire floating actuators used together with SpaceLogic PIBCV (DN1…32) automatic balance and control valves. Typical applications include temperature control on terminal units (fan-coils, chilled ceilings) and small air-handling units. Gap detection stem up position, 3 point version, Force switch-off at stem down position prevents overload of actuator and valve. Maintenance-free lifetime. Power Supply: 24 Vac +1%...-15%. Close of Force: 13 N. Protection code IP42, III safety extra-low voltage protection class. Max. Stroke 5.5 mm. LVD: 26/95/EC.

Products specifications

Attribute name Attribute value
Main
Product destination pressure independent control valves
Product or component type actuator
Power consumption in VA 1 VA AC
Targeted region Australia., Asia Pacific., Europe
Complementary
Force N 130 N
Material polycarbonate: housing
Stroke running time 24 s
[Us] rated supply voltage 24 V AC
Electrical insulation class class III
Control type automatic reset
Stroke length 5.5-5.5 mm
Force lbf 30 lbf
Actuator linear
Environment
IP degree of protection IP42
Relative humidity 0-80 % RH, non-condensing
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 0-55 °C
Power loss return non-spring return
Actuator model MP130
Control signal floating
Lead length 10 m
Stroke auto calibration True
Leads and connections integral cable
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series MP130
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 12.1 cm
Package 1 Length 14.1 cm
Package 1 Weight 300.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.809 kg
