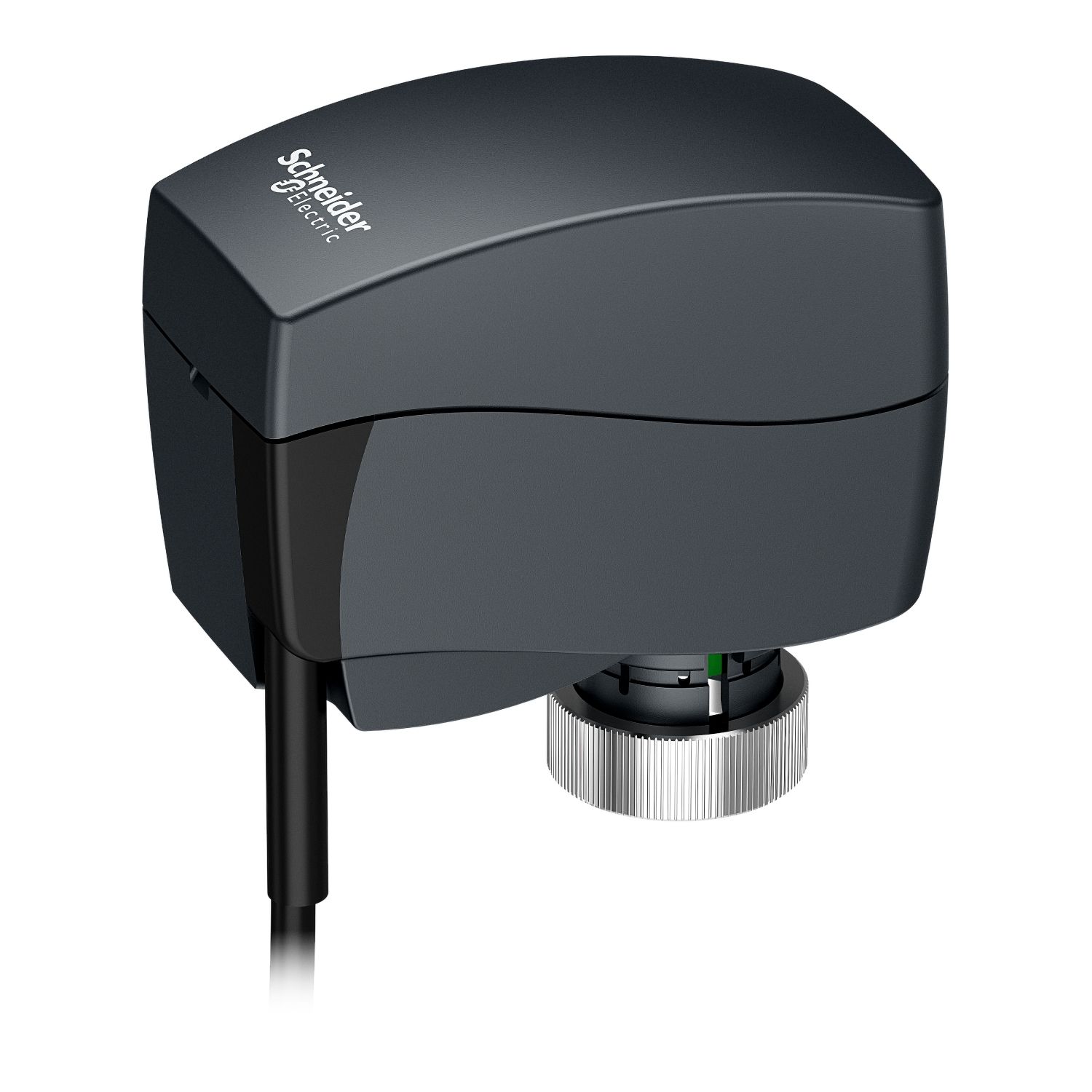

Picture of SpaceLogic MP130 PIBCV Actuator, Two Position, Non-Spring Return, 24Vac, 130N, IP43
SKU:

MP130-24T

SpaceLogic MP130 PIBCV Actuator, Two Position, Non-Spring Return, 24Vac, 130N, IP43

Please Contact Sales to buy this Product. click here
SpaceLogic MP130 PIBCV Actuator, Two Position, Non-Spring Return, 24Vac, 130N, IP43
  • Two position control
  • Low voltage 24 Vac Power supply
  • Compact construction
  • Manual Override
  • Quiet Operation
  • 1.5 m cable
  • For VP228E / VP229E PIBCV Valves
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Declaration of conformity
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
The MP130-24T is 2-point three-wire actuators used with SpaceLogic PIBCV DN 10…32 valves. The actuator can be used with fan coil units, induction units, small reheaters, recoolers and zone applications in which hot/cold water is the controlled medium. The actuator factory default setting is spindle fully retracted. 2 point three-wire actuatr, force switch-off at stel down position prevents overload of actuator and valve, Maintenance-free lifetime. Power Supply: 24 Vac +1%...-15%. Close of Force: 2 N. Protection code IP42. Max. Stroke 5.5 mm. LVD: 26/95/EC.

Products specifications

Attribute nameAttribute value
Main
Product destinationpressure independent control valves
Product or component typeactuator
Power consumption in VA1 VA AC
Targeted regionAsia Pacific., Australia., Europe
Complementary
Force N200 N
Materialpolycarbonate: housing
Stroke running time12 s
[Us] rated supply voltage24 V AC
Electrical insulation classclass III
Stroke length5.5-5.5 mm
Force lbf45 lbf
Actuatorlinear
Environment
IP degree of protectionIP42
Relative humidity0-80 % RH, non-condensing
Ambient air temperature for storage-40-70 °C
Ambient air temperature for operation0-55 °C
Power loss returnnon-spring return
Control signal2-position (on/off)
Lead length1.5 m
Actuator typeelectric
Actuator product rangeSmartX Actuator
Actuator product seriesMP130
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width12.1 cm
Package 1 Length14.1 cm
Package 1 Weight300.0 g
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.585 kg
