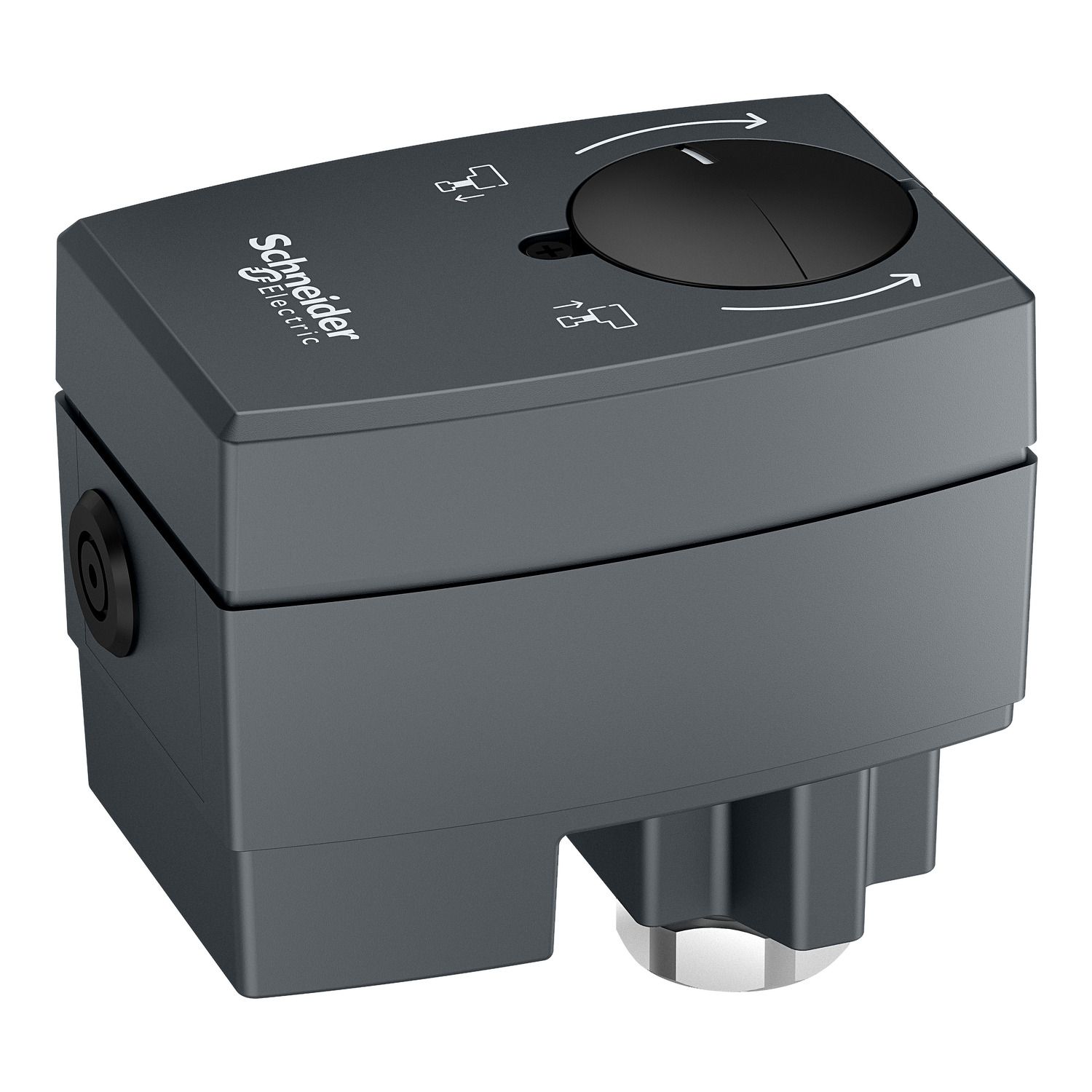

Picture of SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.
SKU:

MP300-SRU

SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.

Please Contact Sales to buy this Product. click here
SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.
  • For VP228E / VP229E PIBCV Valves
  • Without Power, the actuator spring drives the valve open
  • Multi-Signal input control
  • Suitable for use on hot media temperatures (120 °C / 248°F)
  • Sound Power level 40 dB (not recommended for hotel room applications)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Declaration of conformity
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
MP300-SR actuators with Floating and Proportional control are low voltage motoric actuators for the SpaceLogic PIBCV DN1-32 Valves. The actuator has a spring return safety function that provides for an open or close valve in the event of power loss. The Spring return safety function should not be used for two position control. The advanced design incorporates load related ‘switchoff’ to ensure that actuators and valves are not exposed to overload. Power Supply: 24 Vac, +1…-15%. Closing Force: 3 N, Up - Normally Open. Grade of enclosure IP54. Max stroke 5.5 mm.

Products specifications

Attribute nameAttribute value
Main
Product destinationpressure independent control valves
Product or component typeactuator
Power consumption in VA9 VA AC
Targeted regionAustralia., North America., Asia Pacific., Europe
Complementary
Force N300 N
Switch functionNo
[Us] rated supply voltage24 V AC
Electrical insulation classclass III
Control typeautomatic reset
Stroke length5.5-5.5 mm
Analogue input range0...10 V DC
Materialpolycarbonate: housing
Stroke running time14 s
Force lbf68 lbf
Actuatorlinear
Environment
IP degree of protectionIP54
Relative humidity0-95 % RH, non-condensing
Ambient air temperature for operation0-55 °C
Control signalproportional/modulating, floating
Conduit connectionconduit connector plate
Leads and connectionsterminal block
Actuator typeelectric
Actuator product rangeSmartX Actuator
Actuator product seriesMP300-SR
Power loss returnspring return
Feedback signal2...10 V DC, 0...10 V DC
Stroke auto calibrationFalse
Additional featuresvalve stroke length selection, LED status indicator
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.6 cm
Package 1 Width12.8 cm
Package 1 Length13.0 cm
Package 1 Weight800.0 g
Unit Type of Package 22
Number of Units in Package 23
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight3.237 kg
