SKU:

MS40-7043

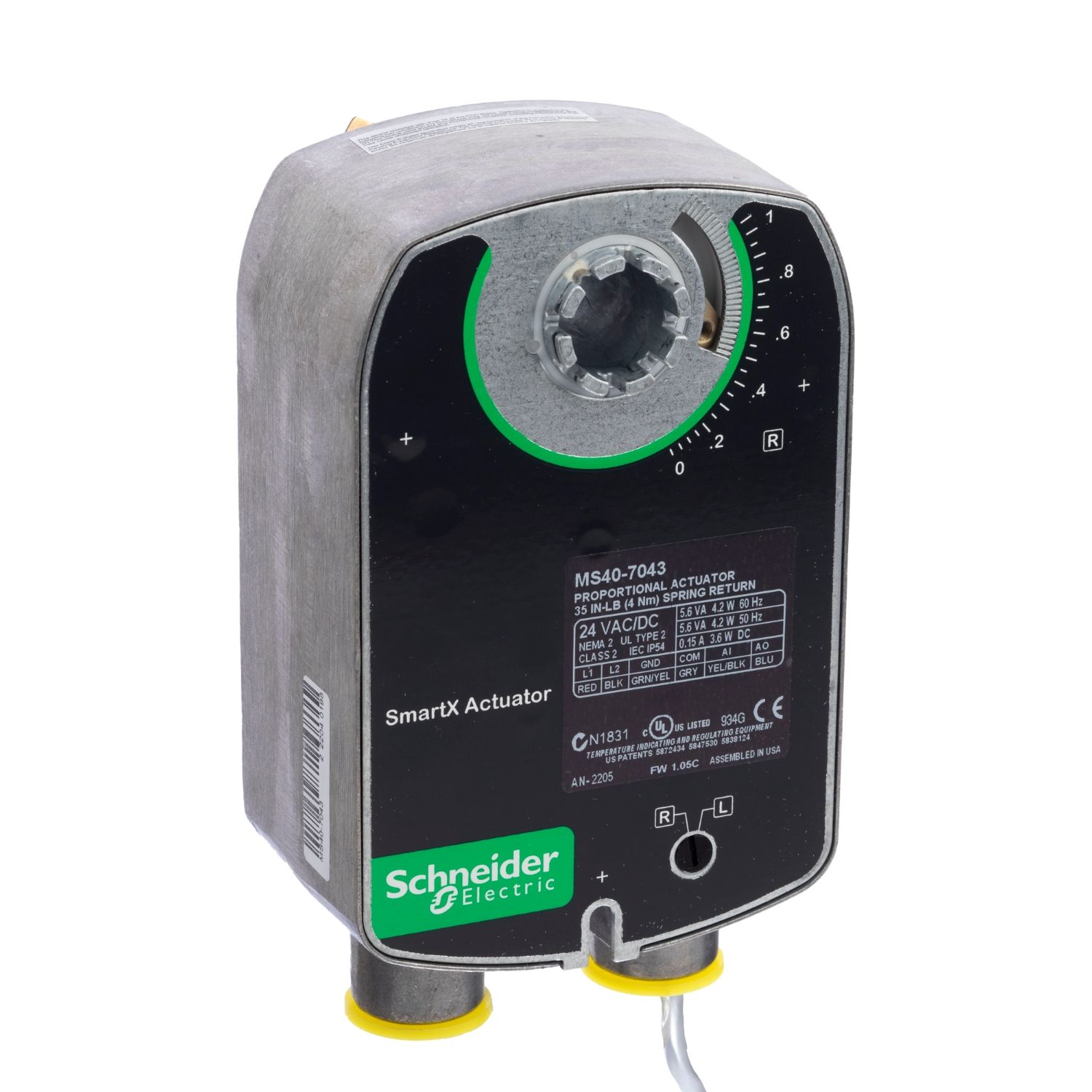

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 35 lb-in, NEMA 2

$903.21 INC GST

Qty:

Available for Shipping : 08-Dec-2025

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 35 lb-in, NEMA 2

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Environmental Disclosure

Circularity Profile

Instruction sheet

Product Page Link

Product Data Sheet

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 35 lb-in, NEMA 2

Attribute name	Attribute value
Main
Product destination	globe valve, dampers
Control type	manual override with 5/32 allen wrench
Product or component type	actuator
Power consumption in VA	5.6 VA AC
Targeted region	Australia., North America.
Switch function	No
Actuator rotation	95 °
Material	die cast aluminium: housing
IP degree of protection	IP11
Relative humidity	5-95 % non-condensing
Analogue input range	4...20 mA DC, 2...10 V DC
Motor type	brushless DC motor
Ambient air temperature for storage	-40-71 °C
NEMA degree of protection	NEMA 2
Actuator	rotary
[Us] rated supply voltage	22...30 V DC, 24 V AC/DC
Ambient air temperature for operation	-30-60 °C
Electrical insulation class	class II
Tightening torque	4 N.m, 35 lb.in

Conduit connection	1/2"
Power loss return	spring return
Leads and connections	plenum
Feedback signal	2...10 V DC
Actuator type	electric
Actuator product range	SmartX Actuator
Control signal	proportional/modulating
Actuator product series	Mx4x-7xxx
Lead length	3 ft
Position indicator	Stroke indicator on bracket
Rotational range adjustment	40...95°
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.1 cm
Package 1 Width	27.3 cm
Package 1 Length	12.1 cm
Package 1 Weight	2.041 kg
