SKU:

MS41-6043

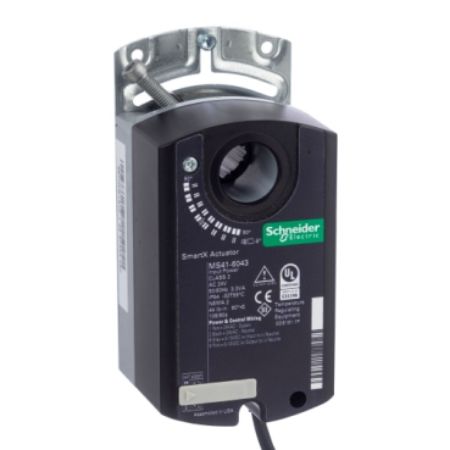

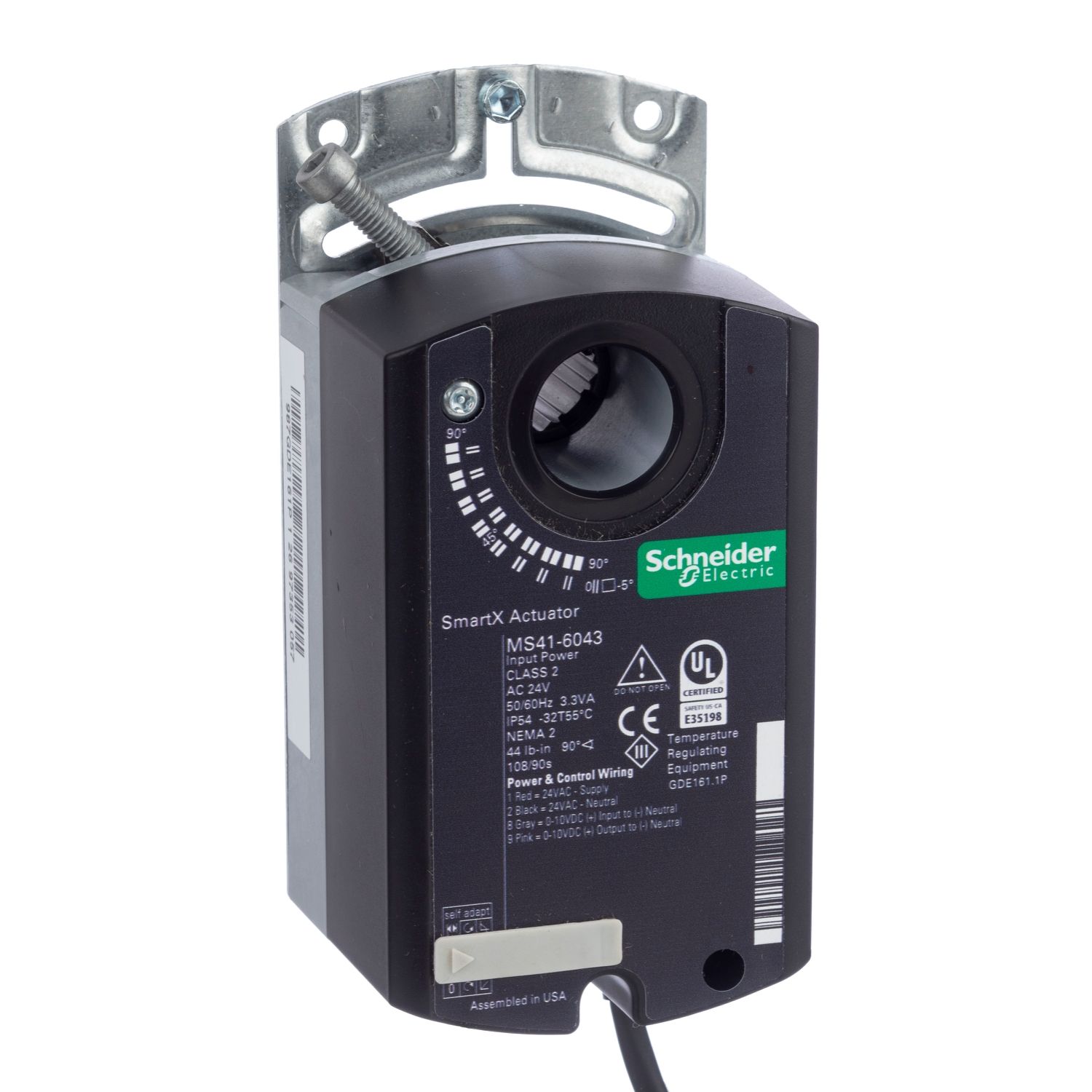

SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2

$477.54 INC GST

Qty:

Available for Shipping : 24-Aug-2026

SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2

Manufacturer: Schneider Electric

Delivery date: 24-Aug-2026

Instruction sheet

Product Page Link

Product Data Sheet

SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2

Attribute name	Attribute value
Main
Hold-in power consumption in VA	1.2-1.2 VA AC
Switch function	No
Material	polymer: housing
IP degree of protection	IP11
Relative humidity	5-95 % non-condensing
Motor type	AC synchronous servo motor
Ambient air temperature for storage	-40-70 °C
NEMA degree of protection	NEMA 2
[Us] rated supply voltage	24 V AC
Electrical insulation class	class II
Product destination	globe valve, dampers
Control type	automatic reset
Product or component type	actuator
Power consumption in VA	3.3 VA AC
Targeted region	Australia., North America.
Power consumption in W	3 W
Actuator rotation	95 °
Analogue input range	0...10 V DC
Actuator	rotary
Ambient air temperature for operation	-31.6-54.4 °C
Tightening torque	5 N.m, 44 lb.in

Power loss return	non-spring return
Feedback signal	0...10 V DC
Control signal	proportional/modulating
Lead length	3 ft
Conduit connection	1/2"
Leads and connections	plenum
Actuator type	electric
Actuator product range	SmartX Actuator
Actuator product series	Mx4x-6xxx
Position indicator	pointer and scale from 0...90°
Rotational range adjustment	0...95°
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.382 cm
Package 1 Width	16.510 cm
Package 1 Length	26.162 cm
Package 1 Weight	771.106 g
