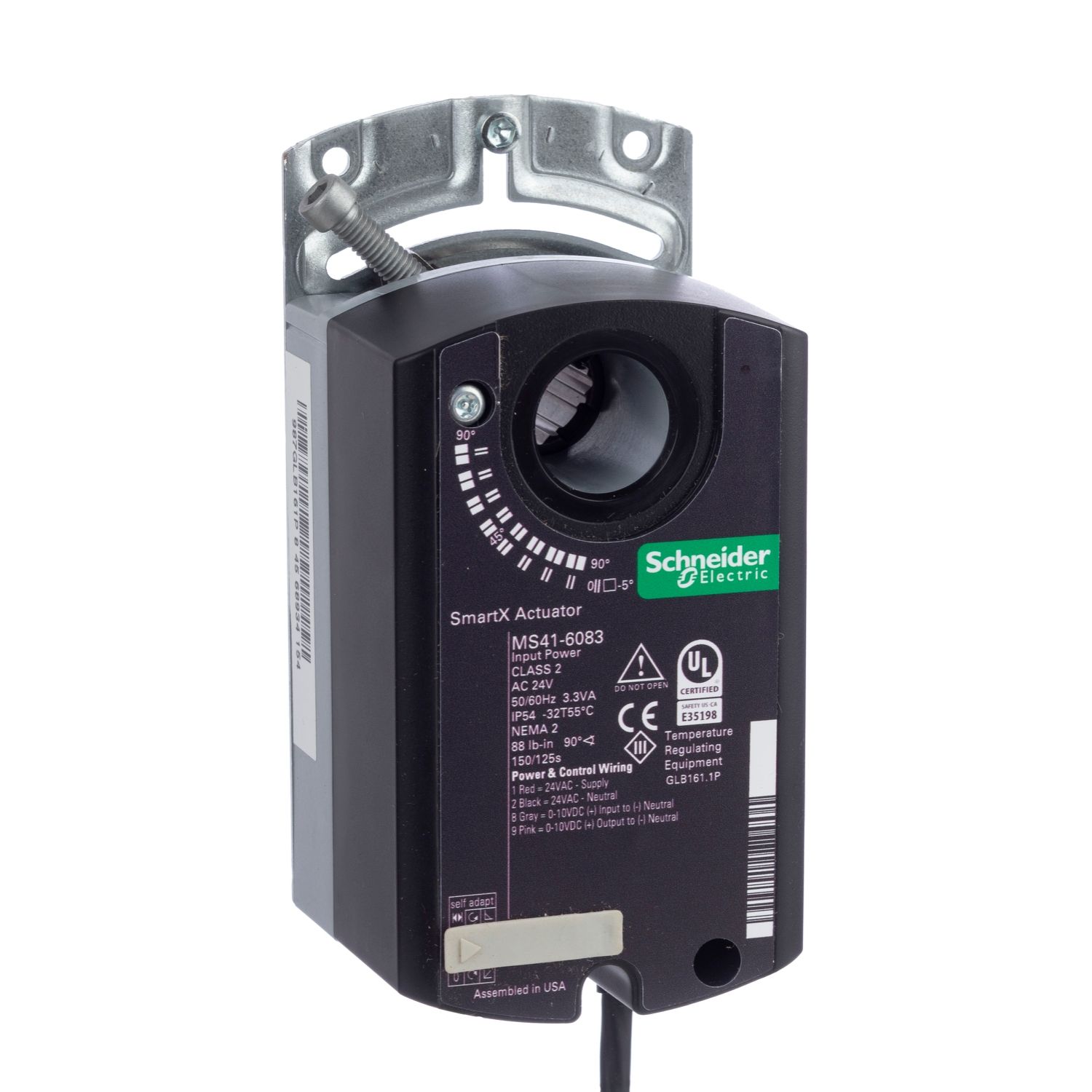

Picture of SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 88 lb-in, NEMA 2
SKU:

MS41-6083

SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 88 lb-in, NEMA 2

$619.72 INC GST
Available for Shipping : 08-Dec-2025
SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 88 lb-in, NEMA 2
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Instruction sheet
Product Page Link
Product Data Sheet
SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 88 lb-in, NEMA 2

Products specifications

Attribute name Attribute value
Main
Switch function No
Material polymer: housing
IP degree of protection IP11
Relative humidity 5-95 % non-condensing
Motor type AC synchronous servo motor
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 2
[Us] rated supply voltage 24 V AC
Electrical insulation class class II
Product destination globe valve,  dampers
Control type automatic reset
Product or component type actuator
Power consumption in VA 3.3 VA AC
Targeted region Australia., North America.
Actuator rotation 95 °
Analogue input range 0...10 V DC
Actuator rotary
Ambient air temperature for operation -31.6-54.4 °C
Tightening torque 10 N.m, 88 lb.in
Power loss return non-spring return
Feedback signal 0...10 V DC
Control signal proportional/modulating
Lead length 3 ft
Conduit connection 1/2"
Leads and connections plenum
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series Mx4x-6xxx
Position indicator pointer and scale from 0...90°
Rotational range adjustment 0...95°
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.5 cm
Package 1 Width 26.7 cm
Package 1 Length 7.6 cm
Package 1 Weight 771.0 g

Related products

Picture of Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 20 Cv

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, brass trim, 20 Cv

VB-7213-0-4-09
$476.90 INC GST
View Detail
Picture of Venta, Globe Valve, 1 in, 2-way, straight threaded NPT, stem up closed, brass trim, 14 Cv

Venta, Globe Valve, 1 in, 2-way, straight threaded NPT, stem up closed, brass trim, 14 Cv

VB-7223-0-4-08
$667.92 INC GST
View Detail
Picture of Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up closed, brass trim, 20 Cv

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up closed, brass trim, 20 Cv

VB-7223-0-4-09
$630.60 INC GST
View Detail
Picture of Venta, Globe Valve, 1-1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 28 Cv

Venta, Globe Valve, 1-1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 28 Cv

VB-7223-0-4-10
$913.33 INC GST
View Detail
Picture of Venta, Globe Valve, 2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 40 Cv

Venta, Globe Valve, 2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 40 Cv

VB-7223-0-4-11
$1,234.64 INC GST
View Detail

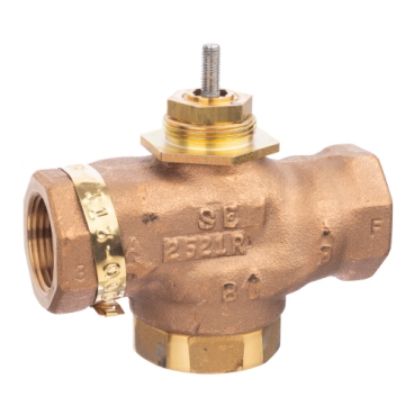

Picture of Venta, Globe Valve, 1 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 14 Cv
