SKU:

MS41-7073

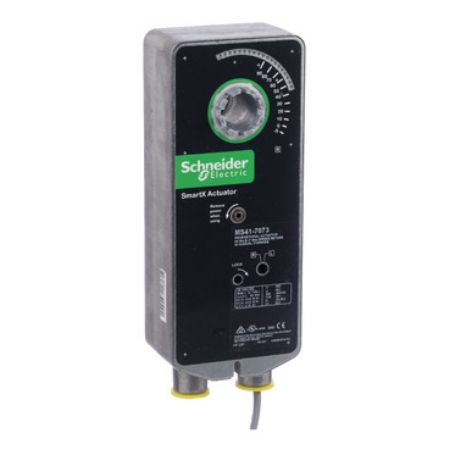

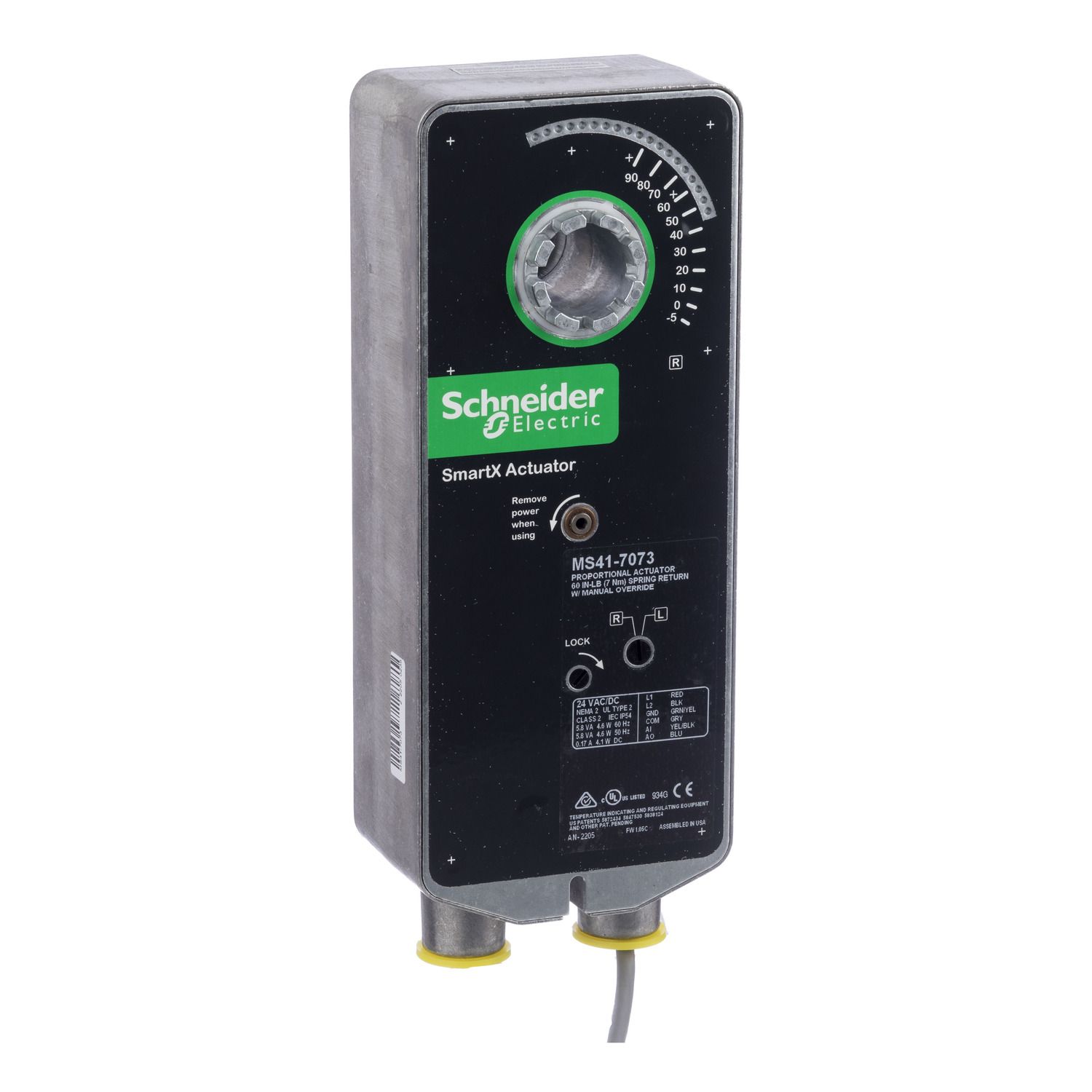

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 60 lb-in, NEMA 1 or 2

$1,006.94 INC GST

Qty:

Available for Shipping : 24-Aug-2026

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 60 lb-in, NEMA 1 or 2

Manufacturer: Schneider Electric

Delivery date: 24-Aug-2026

Environmental Disclosure

Circularity Profile

Instruction sheet

Product Page Link

Product Data Sheet

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 60 lb-in, NEMA 1 or 2

Attribute name	Attribute value
Main
Switch function	No
Hold-in power consumption in W	2.3-2.3 W
Material	die cast aluminium: housing
IP degree of protection	IP11, IP10
Relative humidity	5-95 % non-condensing
Motor type	brushless DC motor
Ambient air temperature for storage	-40-71 °C
NEMA degree of protection	NEMA 2, NEMA 1
[Us] rated supply voltage	22...30 V DC, 24 V AC/DC
Electrical insulation class	class II
Product destination	globe valve, dampers
Control type	automatic reset
Current consumption	170 mA
Product or component type	actuator
Power consumption in VA	5.8 VA AC
Targeted region	Australia., North America.
Power consumption in W	4.6 W
Actuator rotation	95 °
Analogue input range	4...20 mA DC, 2...10 V DC
Actuator	rotary
Ambient air temperature for operation	-30-60 °C
Tightening torque	7 N.m, 60 lb.in

Power loss return	spring return
Feedback signal	2...10 V DC
Control signal	proportional/modulating
Lead length	3 ft
Conduit connection	1/2"
Leads and connections	appliance
Actuator type	electric
Actuator product range	SmartX Actuator
Actuator product series	Mx4x-7xxx
Position indicator	-5°: normal or spring-return position, pointer and scale from -5...90°
Rotational range adjustment	30...95°
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.2 cm
Package 1 Width	11.6 cm
Package 1 Length	36.9 cm
Package 1 Weight	2.948 kg
