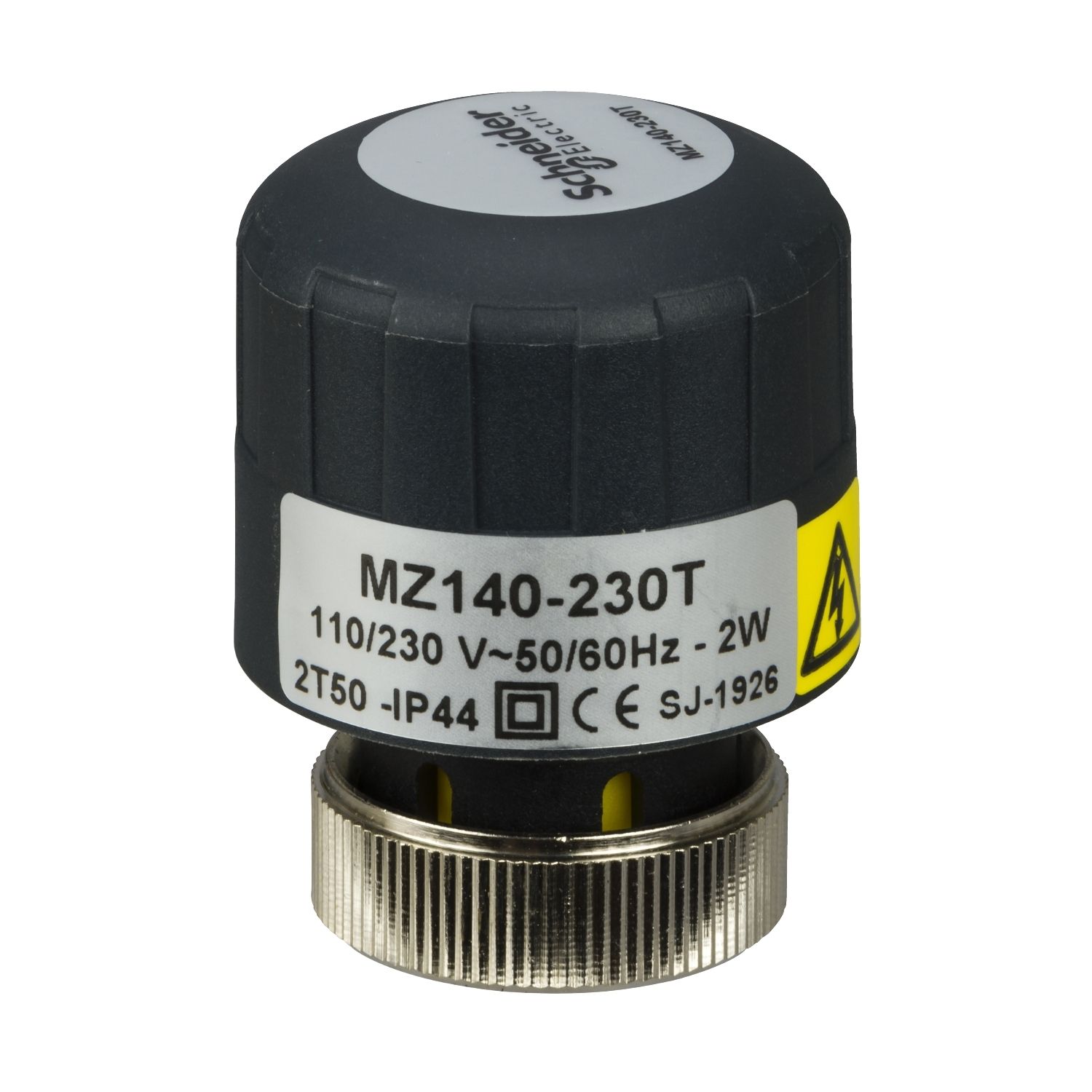

Picture of MZ140 Thermal Zone Valve Actuator, 2-Position, Normally closed, 110-230Vac, 140N, IP44
SKU:

MZ140-230T

MZ140 Thermal Zone Valve Actuator, 2-Position, Normally closed, 110-230Vac, 140N, IP44

$131.69
Available for Shipping : 14-Nov-2024
MZ140 Thermal Zone Valve Actuator, 2-Position, Normally closed, 110-230Vac, 140N, IP44
  • Very compact construction
  • Silent operation
  • Drives VZ208, VZ308, VZ408 short stroke linear zone valves
  • On/Off 2 position control but can be controlled proportionally under PWM
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
MZ14-T is a thermoelectric actuator designed to provide two position on/off control together with VZ*8* zone Valves. The Actuator without power is retracted to ensure the zone valve is in a closed state. With power, the actuator actuator stem is extended to open the valve. The compact construction provides a small footprint. Power Supply: 11 - 230 Vac. Stem force 14N. Protection class IP44 for vertical mounting. Max. stroke 4 mm. EMC 24/18/CE, LVD 26/95/CE.

Products specifications

Attribute name Attribute value
Main
Force N 140 N
Hold-in power consumption in VA 2-2 VA AC
IP degree of protection IP44
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -45-60 °C
[Us] rated supply voltage 110...230 V AC
Product destination zone valves
Control type manual override with 5/32 allen wrench
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Stroke length 4-4 mm
Power consumption in W 2 W
Force lbf 32 lbf
Actuator linear
Ambient air temperature for operation 2-50 °C
Power loss return spring return
Control signal 2-position (on/off)
Lead length 1.5 m
Connection valve coupling ring M30 x 1.5
Stroke auto calibration False
Leads and connections bipolar
Actuator type thermoelectric
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 10.0 cm
Package 1 Length 13.0 cm
Package 1 Weight 200.0 g
