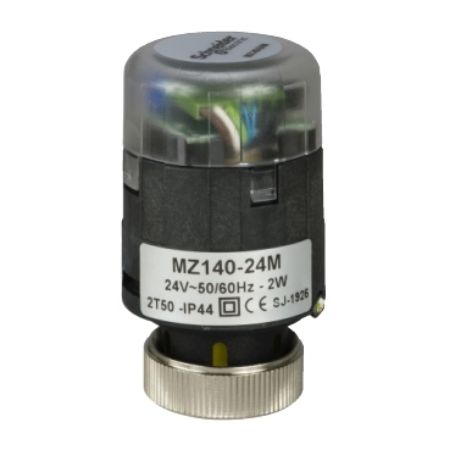

Picture of MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24Vac, 140N, IP41...IP44
SKU:

MZ140-24M

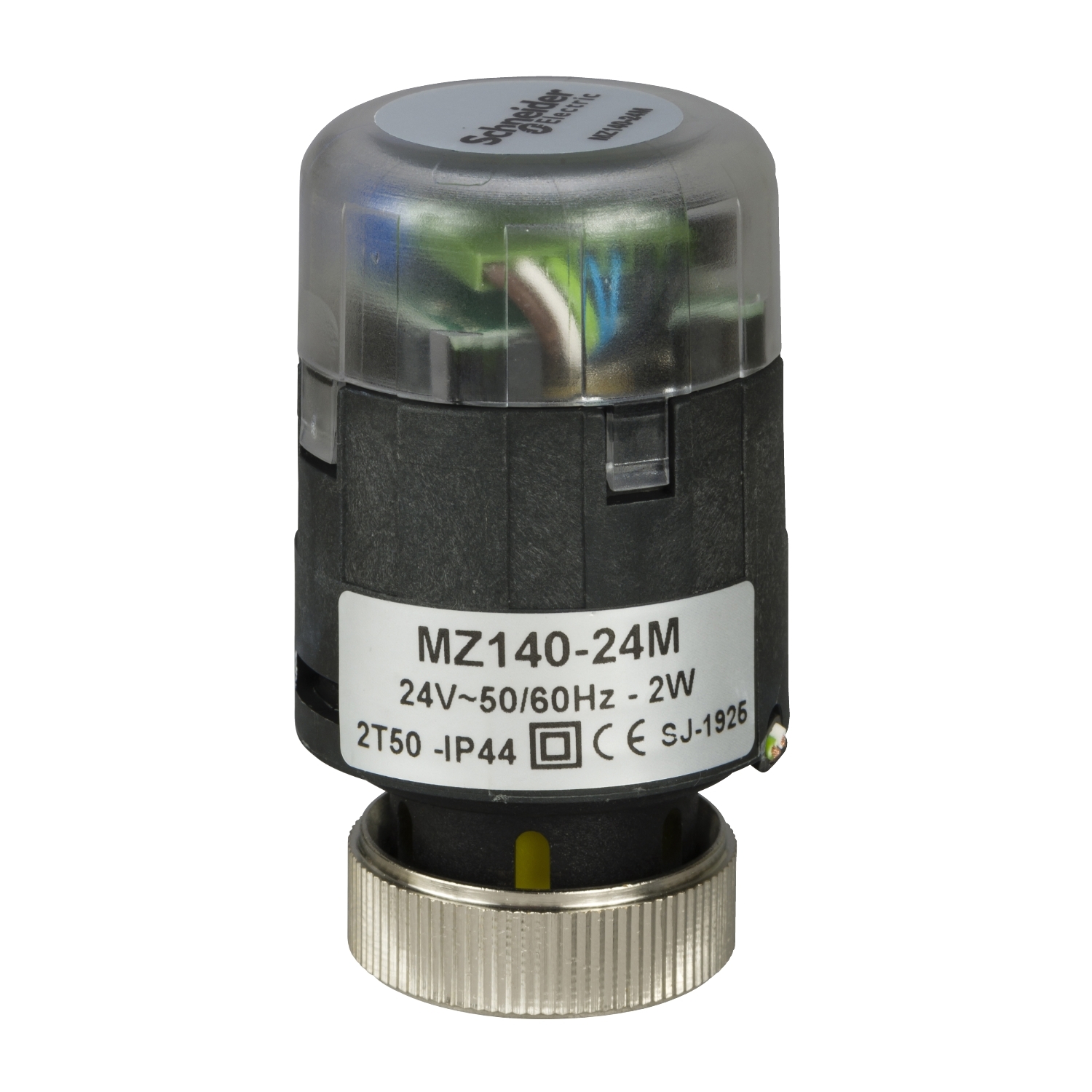

MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24Vac, 140N, IP41...IP44

Please Contact Sales to buy this Product. click here
MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24Vac, 140N, IP41...IP44
  • Very compact construction
  • Silent operation
  • Drives VZ208, VZ308, VZ408 short stroke linear zone valves
  • 2..10 Vdc control signal input
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
End of life manual
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
The MZ14-24M is a thermoelectric actuator designed to provide modulating control together with the VZ*8* zone valve. The MZ14-24M actuator at power off or Vdc control signal will ensure the VZ*8* zone valve is closed. With a control signal of 1 Vdc the actuator will fully open the valve. Nominal Power Supply 21.8…26.8 Vac. Stem force 14N. Protection class IP44 for vertical mounting, IP141 for Horizontal mounting. Stroke 2. 5 mm. EMC 244/18/CE, LVD 266/95/CE.

Products specifications

Attribute nameAttribute value
Main
Force N140 N
Hold-in power consumption in VA2-2 VA AC
IP degree of protectionIP44, IP41
Relative humidity5-95 % non-condensing
Ambient air temperature for storage-45-60 °C
[Us] rated supply voltage24 V AC
Product destinationzone valves
Control typemanual override with 5/32 allen wrench
Product or component typeactuator
Targeted regionAustralia., Asia Pacific., Europe
Stroke length4-4 mm
Power consumption in W2 W
Analogue input range2...10 V DC
Force lbf32 lbf
Actuatorlinear
Ambient air temperature for operation2-50 °C
Power loss returnspring return
Control signalproportional/modulating
Lead length1.5 m
Connection valvecoupling ring M30 x 1.5
Stroke auto calibrationFalse
Actuator typethermoelectric
Position indicatorStroke indicator on bracket
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width10.0 cm
Package 1 Length13.0 cm
Package 1 Weight200.0 g
