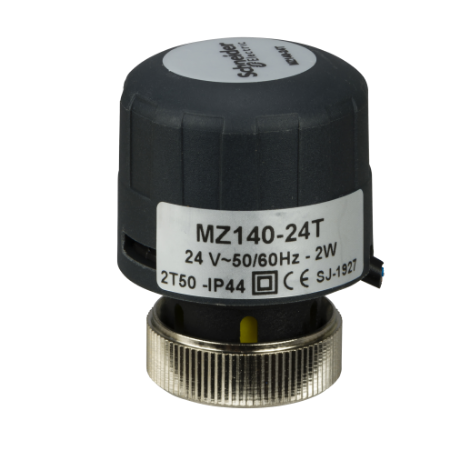

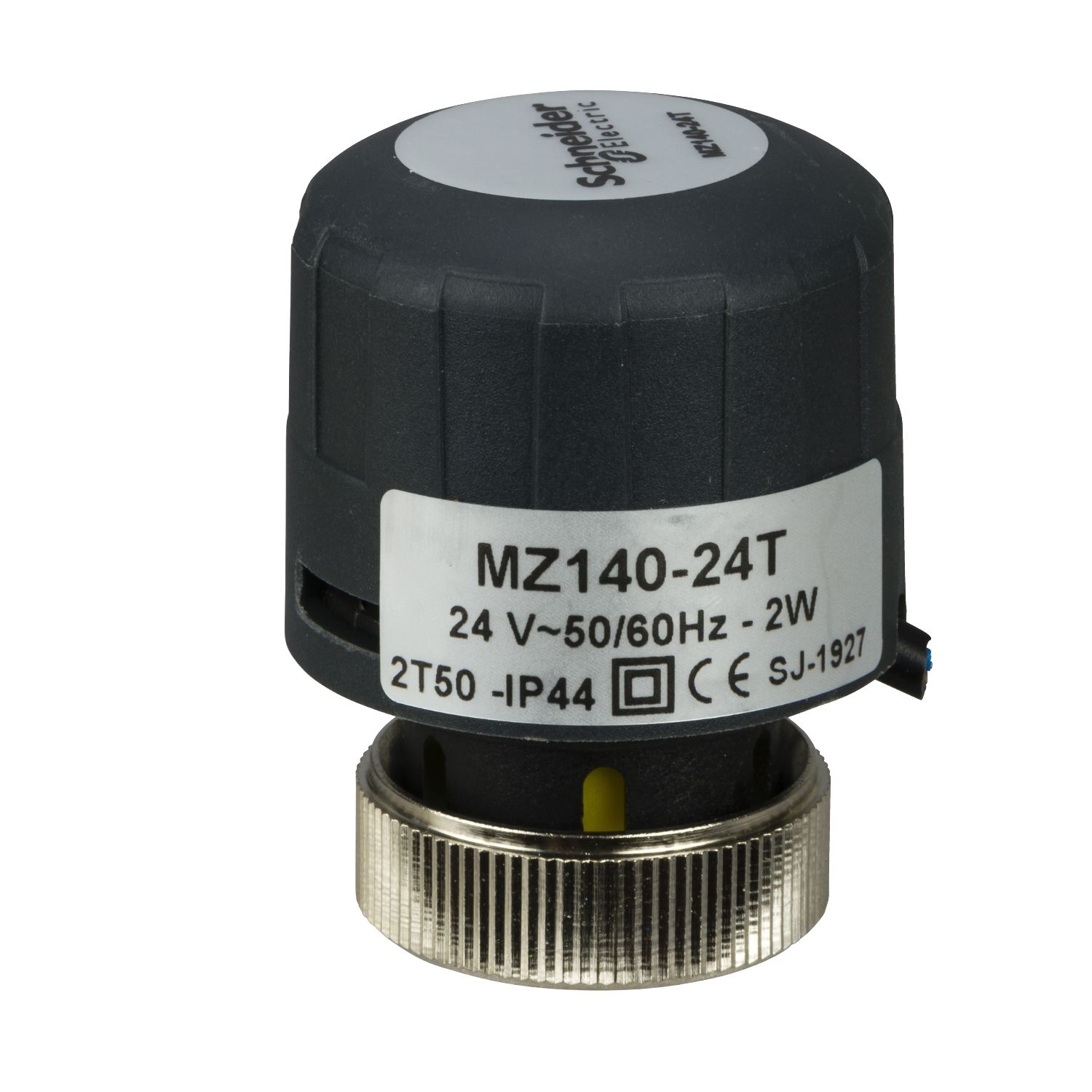

Picture of MZ140 Thermal Zone Valve Actuator, 2-Position, Normally Closed, 24Vac, 140N, IP44
SKU:

MZ140-24T

MZ140 Thermal Zone Valve Actuator, 2-Position, Normally Closed, 24Vac, 140N, IP44

Please Contact Sales to buy this Product. click here
MZ140 Thermal Zone Valve Actuator, 2-Position, Normally Closed, 24Vac, 140N, IP44
  • Very compact construction
  • Silent operation
  • Drives VZ208, VZ308, VZ408 short stroke linear zone valves
  • On/Off 2 position control but can be controlled proportionally under PWM
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
MZ14-T is a thermoelectric actuator designed to provide two position on/off control together with VZ*8* zone Valves. The Actuator without power is retracted to ensure the zone valve is in a closed state. With power, the actuator actuator stem is extended to open the valve. The compact construction provides a small footprint. Power Supply: 24 Vac. Stem force 14N. Protection class IP44 for vertical mounting. Max. stroke 4 mm. EMC 24/18/CE, LVD 26/95/CE.

Products specifications

Attribute nameAttribute value
Main
Force N140 N
Hold-in power consumption in VA2-2 VA AC
IP degree of protectionIP44
Relative humidity5-95 % non-condensing
Ambient air temperature for storage-45-60 °C
[Us] rated supply voltage24 V AC
Product destinationzone valves
Control typemanual override with 5/32 allen wrench
Product or component typeactuator
Targeted regionAustralia., Asia Pacific., Europe
Stroke length4-4 mm
Power consumption in W2 W
Force lbf32 lbf
Actuatorlinear
Ambient air temperature for operation2-50 °C
Power loss returnspring return
Control signal2-position (on/off)
Lead length1.5 m
Connection valvecoupling ring M30 x 1.5
Stroke auto calibrationFalse
Leads and connectionsbipolar
Actuator typethermoelectric
Position indicatorStroke indicator on bracket
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width10.0 cm
Package 1 Length13.0 cm
Package 1 Weight200.0 g
