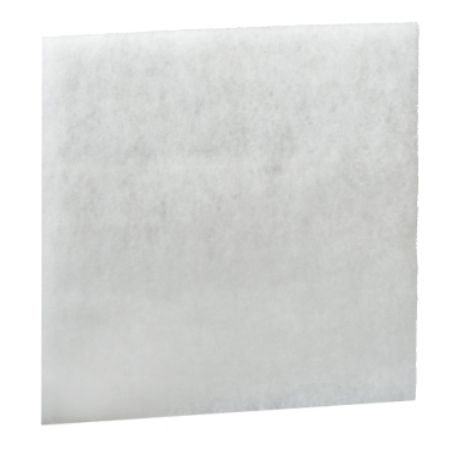

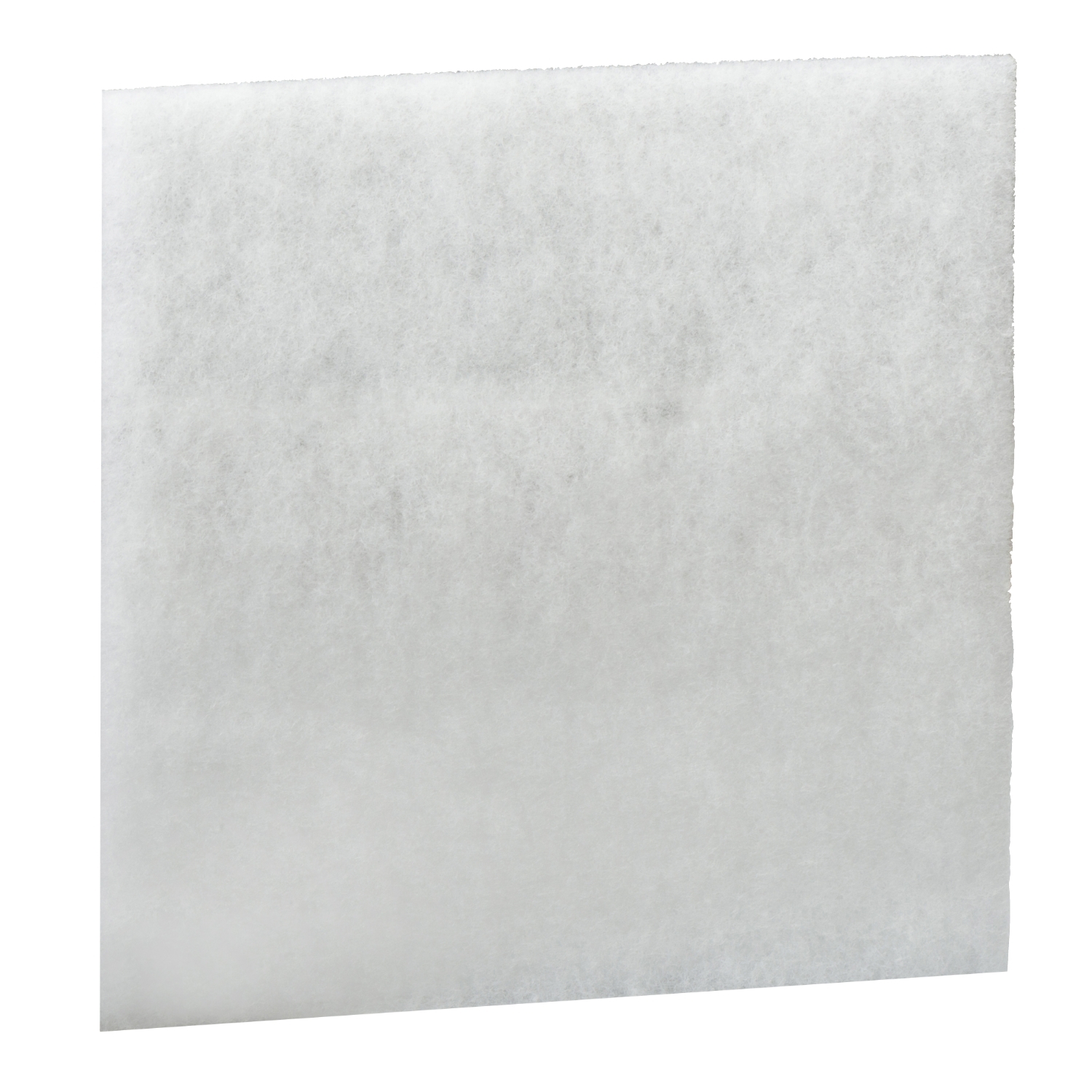

Picture of ClimaSys, Standard filter G2 for outlet grille or fan cut-out 291x291mm ext. dim 336x316x18mm
SKU:

NSYCAF291

ClimaSys, Standard filter G2 for outlet grille or fan cut-out 291x291mm ext. dim 336x316x18mm

$10.76
This product has a minimum quantity of 5
Available for Shipping : 24-Nov-2024
ClimaSys, Standard filter G2 for outlet grille or fan cut-out 291x291mm ext. dim 336x316x18mm
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
Set of 5 G2 filters for ClimaSys CV, Prisma P and Prisma G enclosures The product is to be mounted between enclosure and outlet grille The width is 316mm The height is 336mm The filter is 8mm thick Cut-out dimensions is 291 x 291mm This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Range ClimaSys
Product name ClimaSys CA
Product or component type filter
Accessory / separate part category thermal management accessory
Range compatibility Prisma Prisma G, Prisma Prisma P, ClimaSys ClimaSys CV
Complementary
Accessory / separate part destination outlet grille 336 x 316 mm
Quantity per set set of 5
Height 336 mm
Width 316 mm
Mounting location between enclosure and outlet grille
Thickness 8 mm
Cut-out dimensions 291 x 291 mm cut-out
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.0 cm
Package 1 Width 28.0 cm
Package 1 Length 28.0 cm
Package 1 Weight 12.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.0 cm
Package 2 Width 35.0 cm
Package 2 Length 33.0 cm
Package 2 Weight 85.0 g
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 167.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 34.0 kg
