SKU:

NSYCAG12LPH2

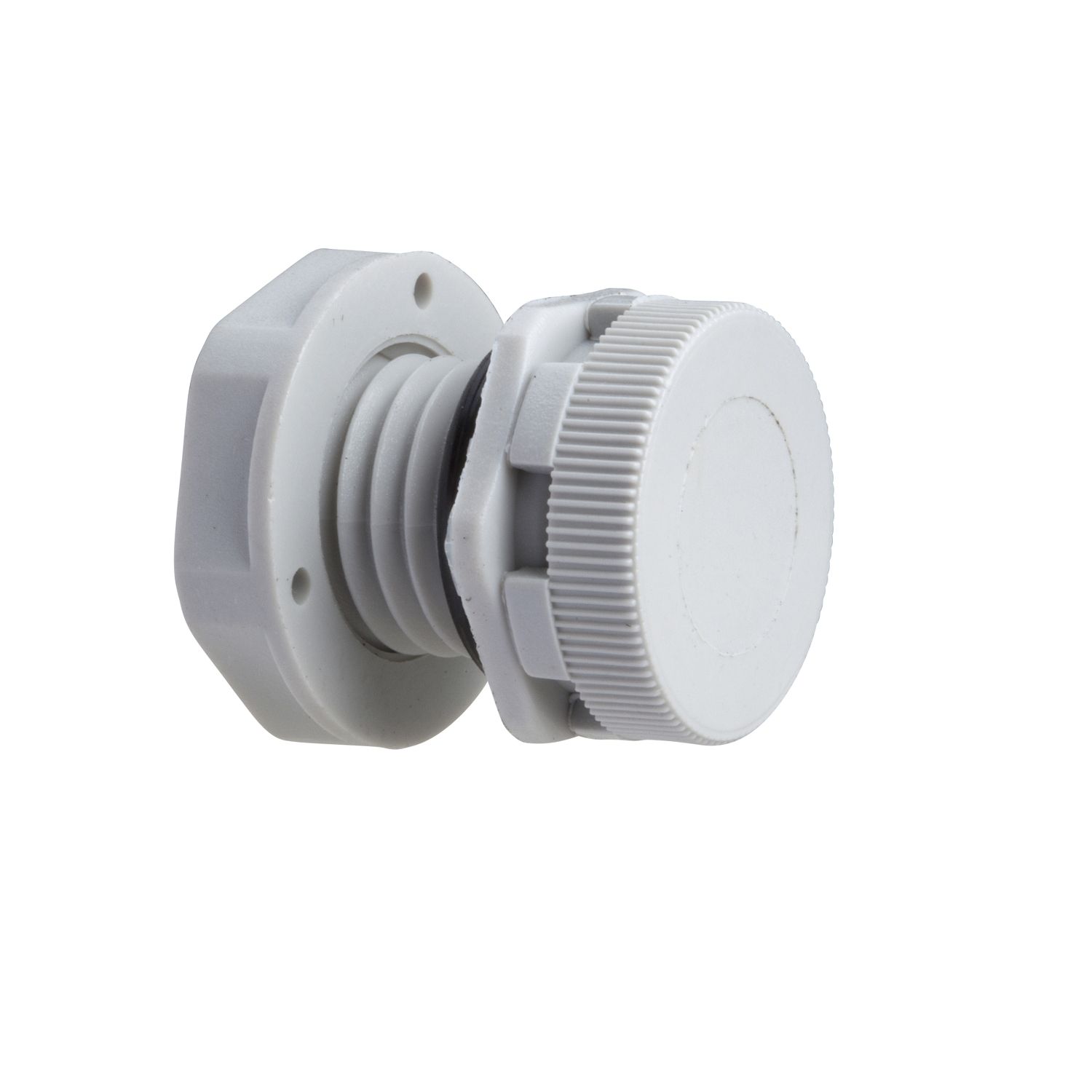

Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

$9.56
Available for Shipping : 25-Nov-2024
Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar
Manufacturer: Schneider Electric
Set of 10 water resistant pressure release valve 140 x 30mm for Thalassa PLS, Thalassa PLM, Thalassa TBS and Thalassa TBP enclosures The product is made from PA6-V2 and membrane is made from acrilic co-polymer The kit is made of 1 valve The width is 140mm Cut-out diameter is 10,2mm Ingress protection rating (according to IEC 60529) is IP68 Fixing by screws Flame retardance V2 Operating temperature is in the range of -40-150 °C Pressure difference is less than 0,1 bar Permeability is 120 l/h This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 10
Environmental characteristic water resistant
Range ClimaSys
Device composition 1 valve
Product name ClimaSys CA
Product or component type pressure release valve
Accessory / separate part category thermal management accessory
Fixing mode screwed
Range compatibility Thalassa Thalassa TBP, Thalassa Thalassa TBS, Thalassa Thalassa PLM, Thalassa Thalassa PLS
Complementary
Diameter 10.2 mm
Material PA6, membrane: acrilic co-polymer
Height 30 mm
Width 140 mm
Flame retardance V2
Permeability 120 l/h
Pressure difference < 0.1 bar
Ambient air temperature for operation -40-150 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 14.0 cm
Package 1 Length 12.0 cm
Package 1 Weight 4.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.0 cm
Package 2 Width 14.0 cm
Package 2 Length 12.0 cm
Package 2 Weight 40.0 g
