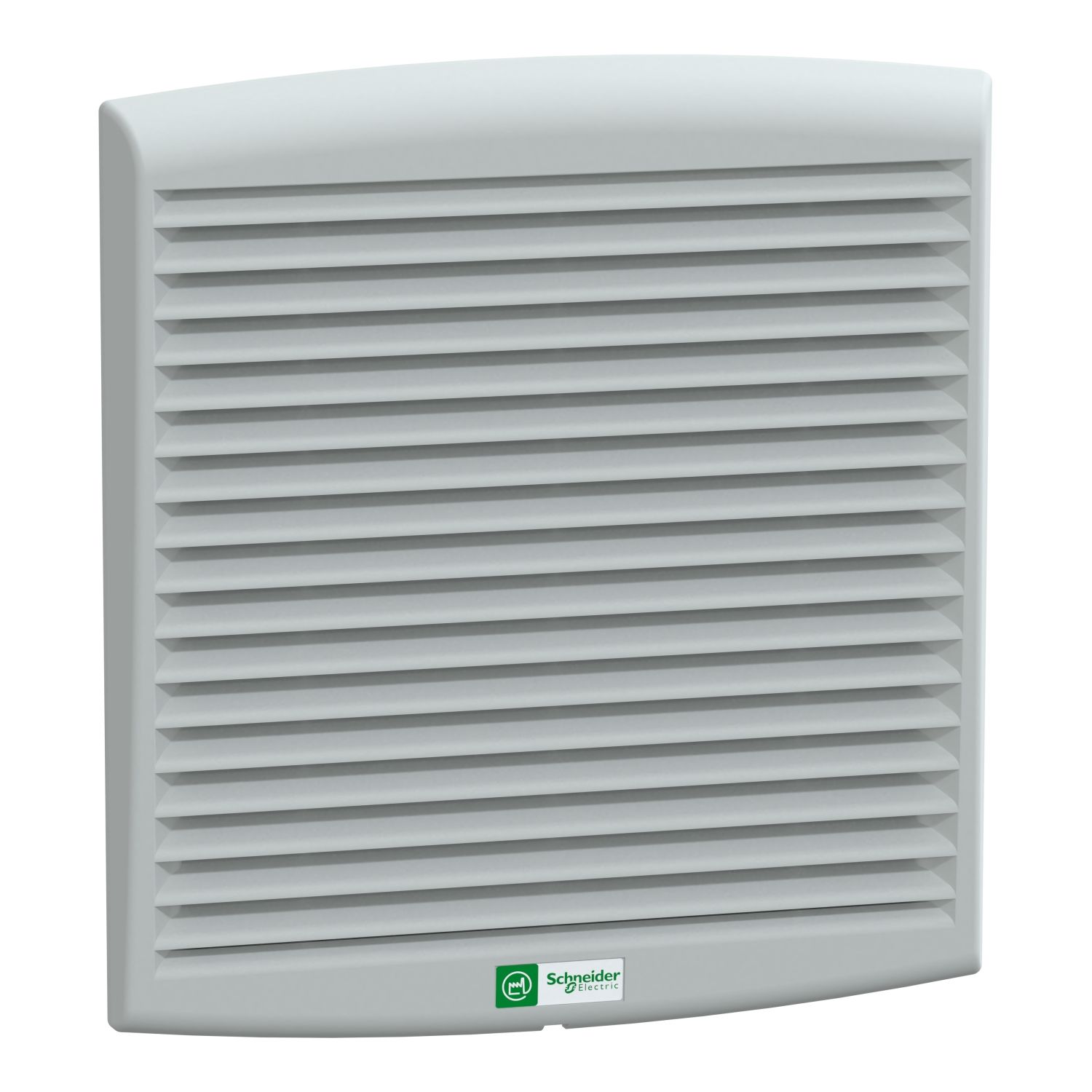

Picture of ClimaSys, Outlet grille plast cut out 223x223mm ext dim 268x248mm IP54
SKU:

NSYCAG223LPF

ClimaSys, Outlet grille plast cut out 223x223mm ext dim 268x248mm IP54

$140.44
Available for Shipping : 24-Nov-2024
ClimaSys, Outlet grille plast cut out 223x223mm ext dim 268x248mm IP54
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet
Prisma P outlet grille plastic. 222 x 223 mm cut-out. External is 268 x 248 mm. Thermal management accessory. Compatible with ClimaSys CV fan. Fixing mode by screws or clipped. Injected thermoplastic (ASA PC). Grey RAL 7035 external part. 1 x G2 M1 synthetic standard filter incld. IP54 Protection.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination ClimaSys ventilation system
Range ClimaSys
Device composition 1 G2 M1 synthetic standard filter, 1 external part, 1 support frame
Product name ClimaSys CA
Product or component type outlet grille
Accessory / separate part category thermal management accessory
Fixing mode clipped, by screws
Range compatibility ClimaSys ClimaSys CV fan, Prisma Prisma P
Complementary
Colour external part: grey (RAL 7035)
Height 268 mm external:
Width 248 mm external:
Cut-out dimensions 223 x 223 mm
Depth 18 mm external:
Material injected thermoplastic (ASA PC)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 25.5 cm
Package 1 Length 28 cm
Package 1 Weight 533 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 40 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.33 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 131 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 143 kg
