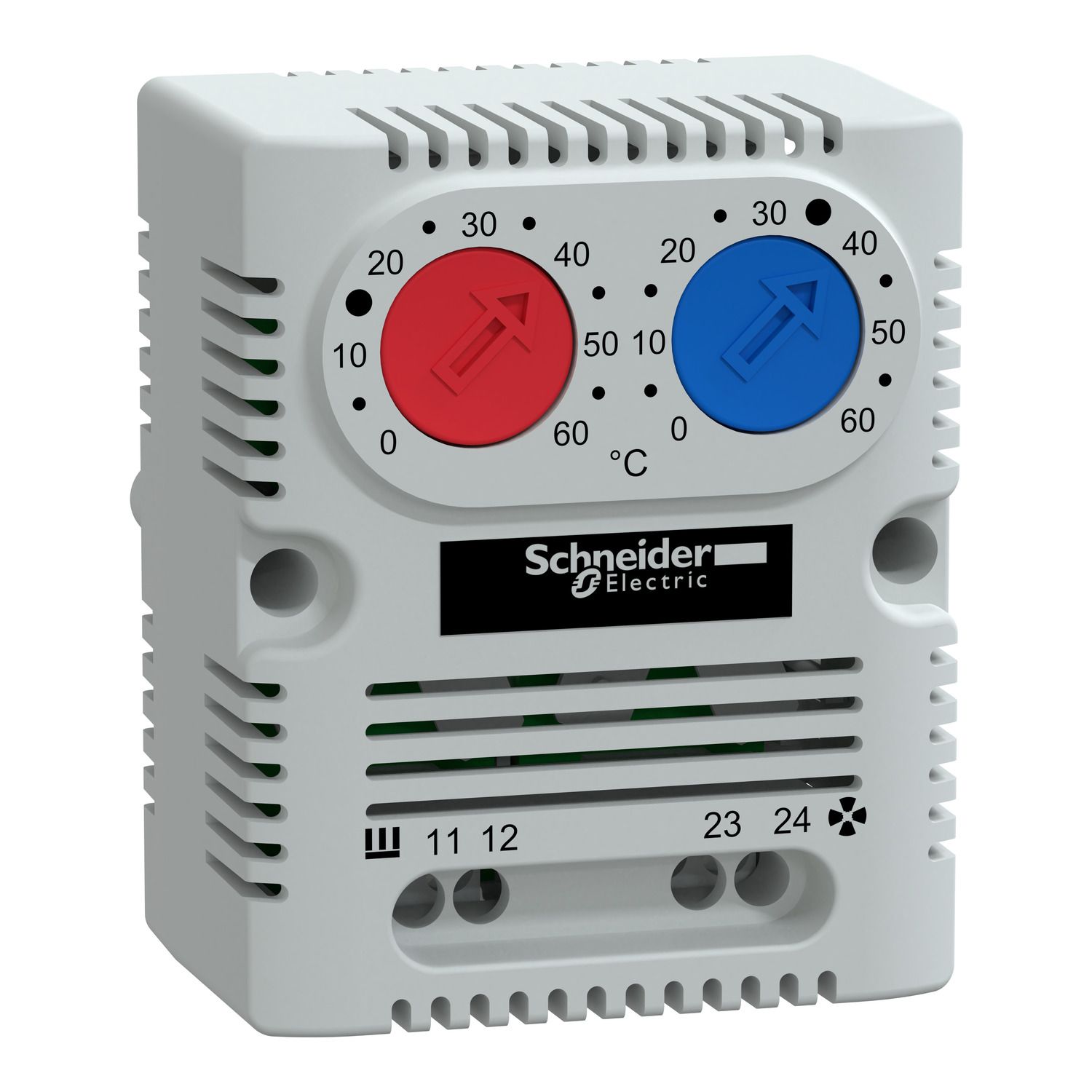

Picture of ClimaSys, ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C
SKU:

NSYCCOTHD

ClimaSys, ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C

$157.67
Available for Shipping : 01-Jan-2025
Product Selector
ClimaSys, ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Products specifications

Attribute name Attribute value
Main
Temperature setting range 0-60 °C
Range ClimaSys
Product name ClimaSys CC
Product or component type double thermostat
Information displayed temperature in °C
Complementary
Contact resistance 10 mOhm
IP degree of protection IP20
Compatibility code THERMOSTAT
Sensor type bimetal
Height 68 mm external:
Width 56 mm external:
Colour light grey
Mounting mode clipped
Flame retardance self-extinguishing conforming to UL94 (material V0)
Contacts type and composition 1 NO/NC
Electrical connection 4 terminals, clamping capacity: 2.5 mm²
Input voltage 250 V
Mounting location cross rails, 35 mm DIN rail, on mounting plate, Spacial upright
Depth 44 mm external:
Net weight 40 g
Material PC
Service life in cycles 100000 cycles
Number of outputs 1 ventilation function, 1 heating function
Ambient air temperature for operation -20-80 °C
Hysteresis 7 K +/- 0.4K
Maximum switching capacity 30 W DC, 15 A 120 V AC resistive, 10 A 250 V AC resistive, 2 A 120...250 V AC inductive pf: 0.6
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6 cm
Package 1 Width 7 cm
Package 1 Length 8 cm
Package 1 Weight 104 g
