SKU:

NSYCCOTHI

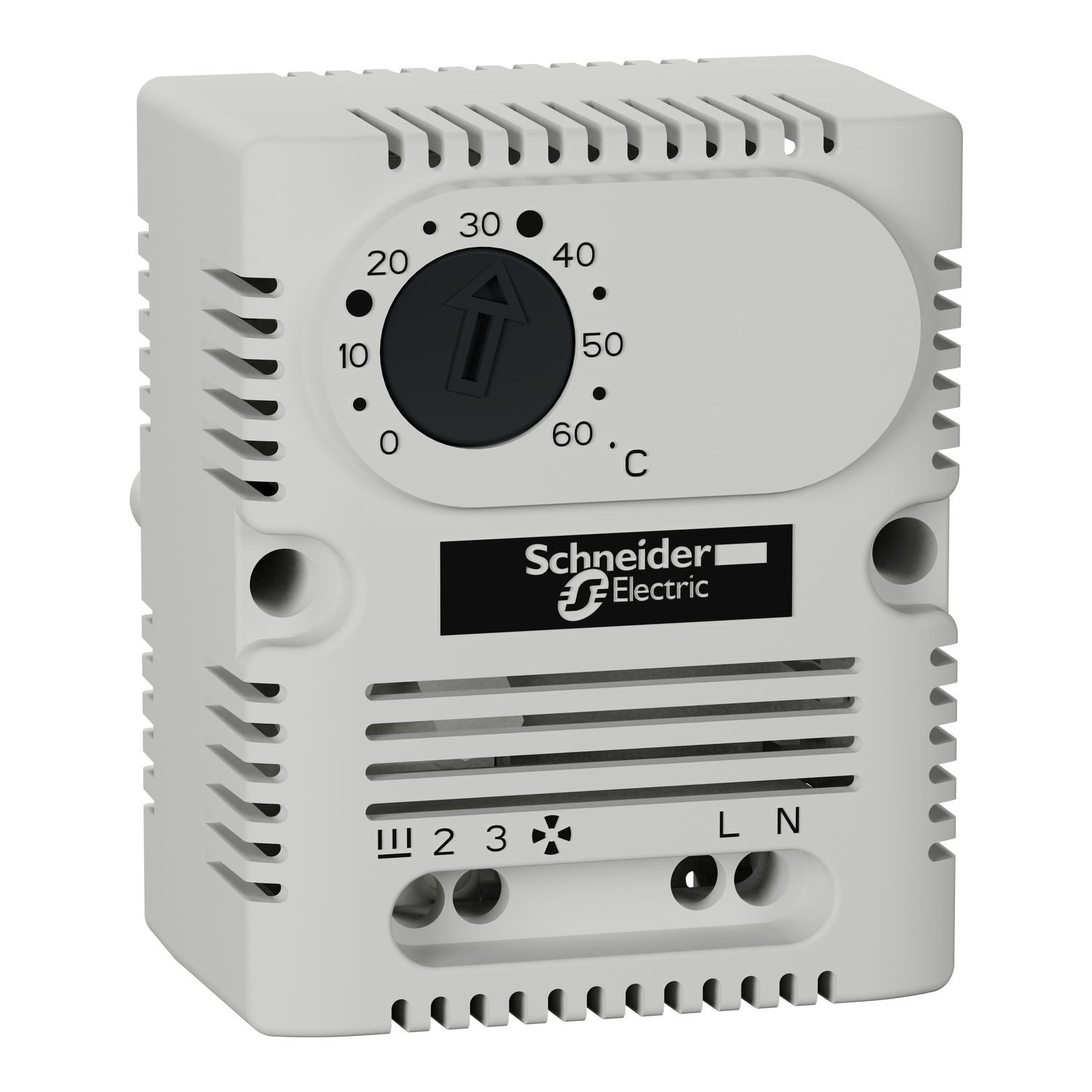

ClimaSys CC - thermostat 250V - range of temperature +5â€¦60Â°C - 1 NO/NC - Â°C

$154.04

Qty:

Available for Shipping : 10-Dec-2024

ClimaSys CC - thermostat 250V - range of temperature +5â€¦60Â°C - 1 NO/NC - Â°C

Manufacturer: Schneider Electric

Product environmental

User guide

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Temperature setting range	5-60 °C
Range	ClimaSys
Product name	ClimaSys CC
Product or component type	thermostat
Information displayed	temperature in °C
Complementary
Contact resistance	10 mOhm
IP degree of protection	IP20
Sensor type	bimetal
Height	68 mm external:
Width	56 mm external:
Colour	light grey
Mounting mode	clipped
Flame retardance	self-extinguishing conforming to UL94 (material V0)
Contacts type and composition	1 NO/NC
Electrical connection	4 terminals, clamping capacity: 2.5 mm²
Input voltage	250 V
Mounting location	Spacial upright, 35 mm DIN rail, on mounting plate, cross rails
Depth	44 mm external:
Net weight	100 g
Material	PC
Service life in cycles	100000 cycles
Number of outputs	1 ventilation function, 1 heating function
Ambient air temperature for operation	-20-80 °C
Hysteresis	7 K +/- 0.4K
Maximum switching capacity	10 A 250 V AC inductive, 30 W DC, 4 A 250 V AC inductive pf: 0.6
Product certifications	UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5 cm
Package 1 Width	5.5 cm
Package 1 Length	7 cm
Package 1 Weight	80 g
Unit Type of Package 2	2
Number of Units in Package 2	75
Package 2 Height	26 cm
Package 2 Width	41.5 cm
Package 2 Length	32.5 cm
Package 2 Weight	7.428 kg
Unit Type of Package 3	3
Number of Units in Package 3	3000
Package 3 Height	198 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	311 kg
