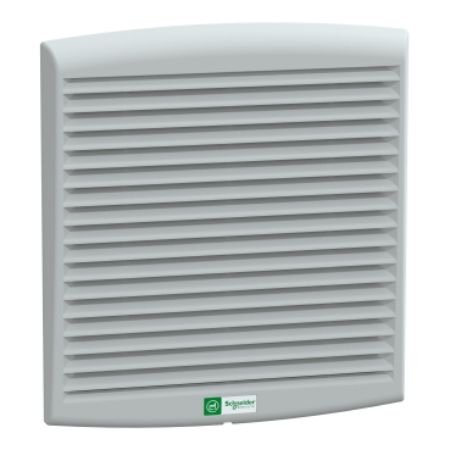

Picture of ClimaSys forced vent. IP54, 165m3/h, 115V, with outlet grille and filter G2
SKU:

NSYCVF165M115PF

ClimaSys forced vent. IP54, 165m3/h, 115V, with outlet grille and filter G2

$99.08 INC GST
Available for Shipping : 17-Feb-2025
ClimaSys forced vent. IP54, 165m3/h, 115V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
End of life manual
Declaration of conformity
Brochure
Instruction sheet
Product Page Link
Product Data Sheet
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 15,5 W 50 Hz and 14,4 W 60 Hz, and a free flow rate of 165 m3/h at 50 Hz and 193 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -20 to 60°C It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord It has an IP54 degree of protection and a noise level of 50-51 dB The cut-out dimensions of the fan are 223 x 223 mm This fan also comes with an anti-insect filter included

Products specifications

Attribute name Attribute value
Main
Input voltage 115 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 193 m3/h at 60 Hz, free flow rate with standard filter: 165 m3/h at 50 Hz
[Us] rated supply voltage 75...126 V
Complementary
Noise level 50-51 dB
Bearing type ball
[In] rated current 0.18-0.18 A 60 Hz, 0.2-0.2 A 50 Hz
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 268 mm external:
Width 248 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 223 x 223 mm
Depth 104 mm external:
Net weight 1.14 kg
Device composition 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 50 Pa flow rate 0 m³/h
Condition of use surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, outside temperature must be 5 °C lower than inside temperature
Power range 14.4 W 60 Hz, 15.5 W 50 Hz
Ambient air temperature for operation -20-60 °C
Connections - terminals Faston connector
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19 cm
Package 1 Width 25.5 cm
Package 1 Length 27.5 cm
Package 1 Weight 1.4 kg
Unit Type of Package 2 2
Number of Units in Package 2 120
Package 2 Height 120 cm
Package 2 Width 100 cm
Package 2 Length 170 cm
Package 2 Weight 178 kg
