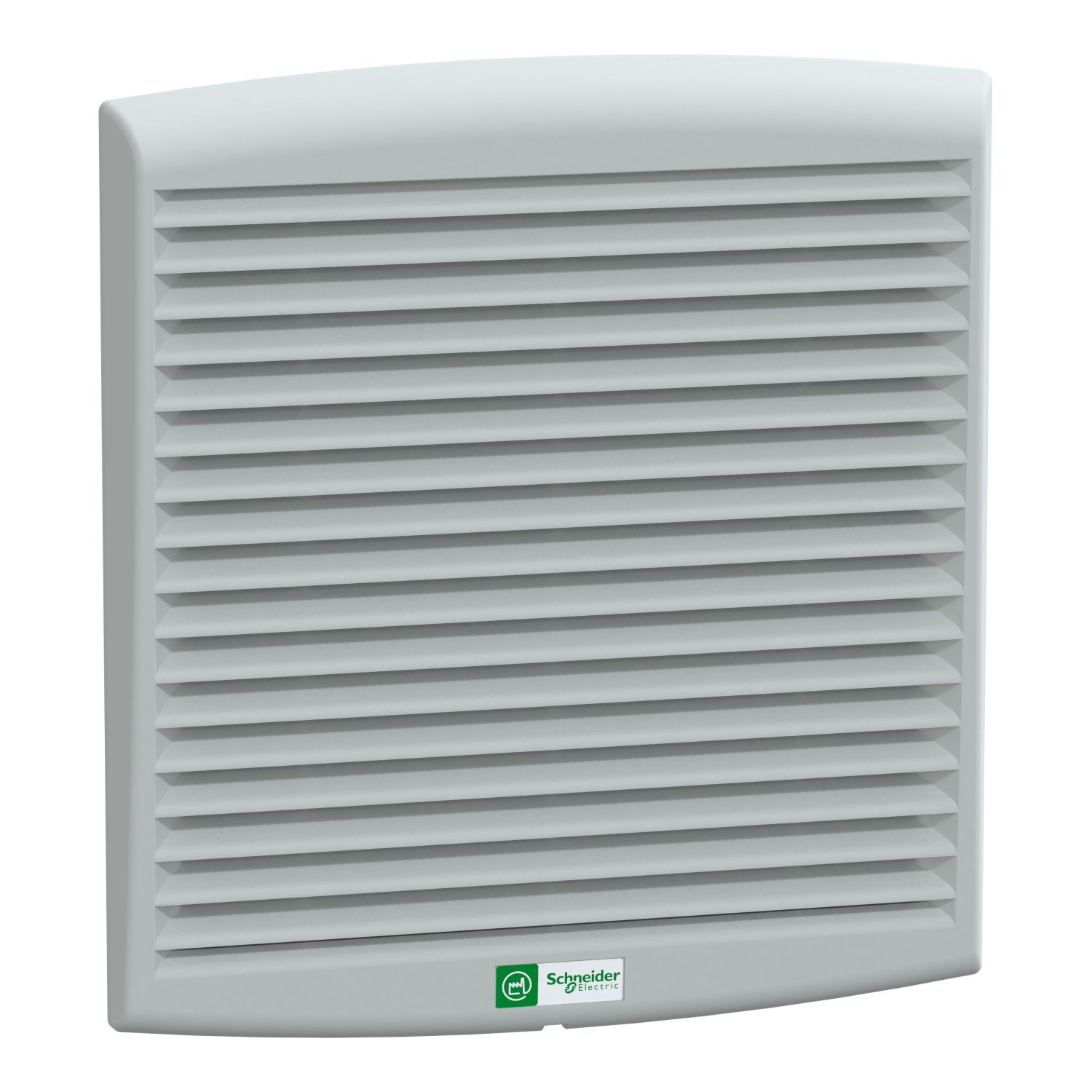

Picture of ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2
SKU:

NSYCVF165M24DPF

ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2

$99.08
ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Product environmental
User guide
Catalogue
End of life manual
Declaration of conformity
Brochure
Instruction sheet
Product Page Link
Product Data Sheet
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 8 W and a free flow rate of 188 m3/h It can be used in ambient air temperatures ranging from -10 to 70°C It has a power cable and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 50-51 dB The cut-out dimensions of the fan are 223 x 223 mm This fan also comes with an anti-insect filter included

Products specifications

Attribute nameAttribute value
Main
Input voltage24 V DC
RangeClimaSys
Product nameClimaSys CV
Product or component typefan
Type of ventilation filterstandard
Air flowfree flow rate with standard filter: 188 m3/h
[Us] rated supply voltage10...27.6 V
Complementary
Noise level50-51 dB
Bearing typeball
[In] rated current0.3-0.3 A
Colouroutlet grille: grey (RAL 7035)
IP degree of protectionIP54
Materialoutlet grille: injected thermoplastic (ASA PC)
Height268 mm external:
Width248 mm external:
Ambient air temperature for storage-40-70 °C
Cut-out dimensions223 x 223 mm
Depth104 mm external:
Net weight0.81 kg
Device composition1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure50 Pa flow rate 0 m³/h
Condition of useoutside temperature must be 5 °C lower than inside temperature, filter must be cleaned and replaced regularly, overfrequent filter replacement should be avoided, flow rates depends on the work point, see ProClima software, surrounding environment must be relatively clean
Power range8 W
Ambient air temperature for operation-10-70 °C
Connections - terminalscable
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height18.5 cm
Package 1 Width25.0 cm
Package 1 Length27.0 cm
Package 1 Weight1.068 kg
Unit Type of Package 22
Number of Units in Package 264
Package 2 Height120 cm
Package 2 Width80 cm
Package 2 Length120 cm
Package 2 Weight100 kg
