SKU:

NSYCVF165M48DPF

ClimaSys forced vent. IP54, 193m3/h, 48V DC, with outlet grille and filter G2

$99.08

Qty:

Available for Shipping : 05-Jan-2025

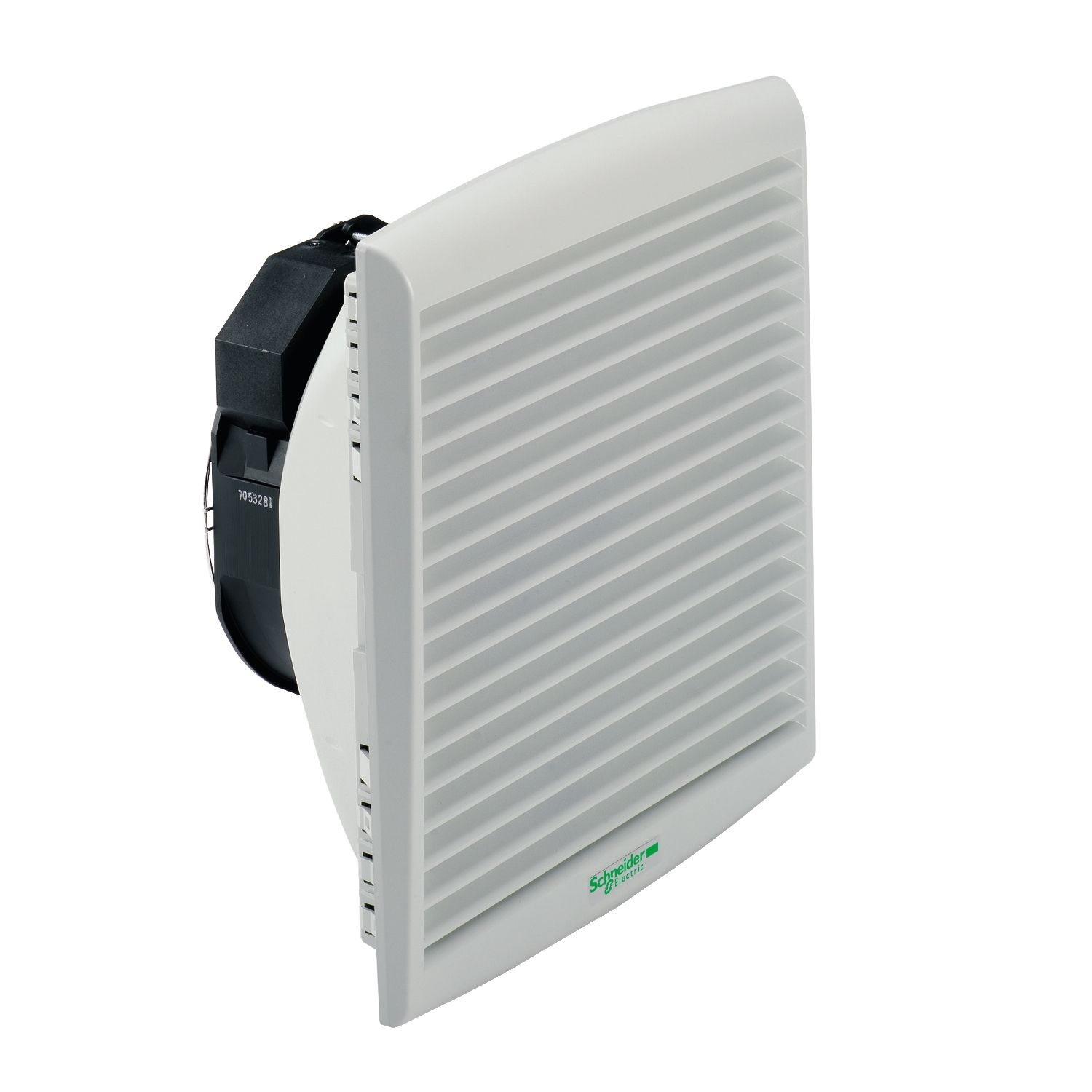

ClimaSys forced vent. IP54, 193m3/h, 48V DC, with outlet grille and filter G2

Manufacturer: Schneider Electric

Product environmental

User guide

End of life manual

Declaration of conformity

Brochure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Input voltage	48 V DC
Range	ClimaSys
Product name	ClimaSys CV
Product or component type	fan
Type of ventilation filter	standard
Air flow	free flow rate with standard filter: 193 m3/h
[Us] rated supply voltage	25...55.2 V
Complementary
Noise level	50-51 dB
Bearing type	ball
[In] rated current	0.18-0.18 A
Colour	outlet grille: grey (RAL 7035)
IP degree of protection	IP54
Material	outlet grille: injected thermoplastic (ASA PC)
Height	268 mm external:
Width	248 mm external:
Ambient air temperature for storage	-40-70 °C
Cut-out dimensions	223 x 223 mm
Depth	104 mm external:
Net weight	0.81 kg
Device composition	1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure	50 Pa flow rate 0 m³/h
Condition of use	flow rates depends on the work point, see ProClima software, filter must be cleaned and replaced regularly, overfrequent filter replacement should be avoided, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean
Power range	8.7 W
Ambient air temperature for operation	-10-70 °C
Connections - terminals	cable
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	18 cm
Package 1 Width	18.5 cm
Package 1 Length	25.5 cm
Package 1 Weight	1.054 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	40 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	4.216 kg
