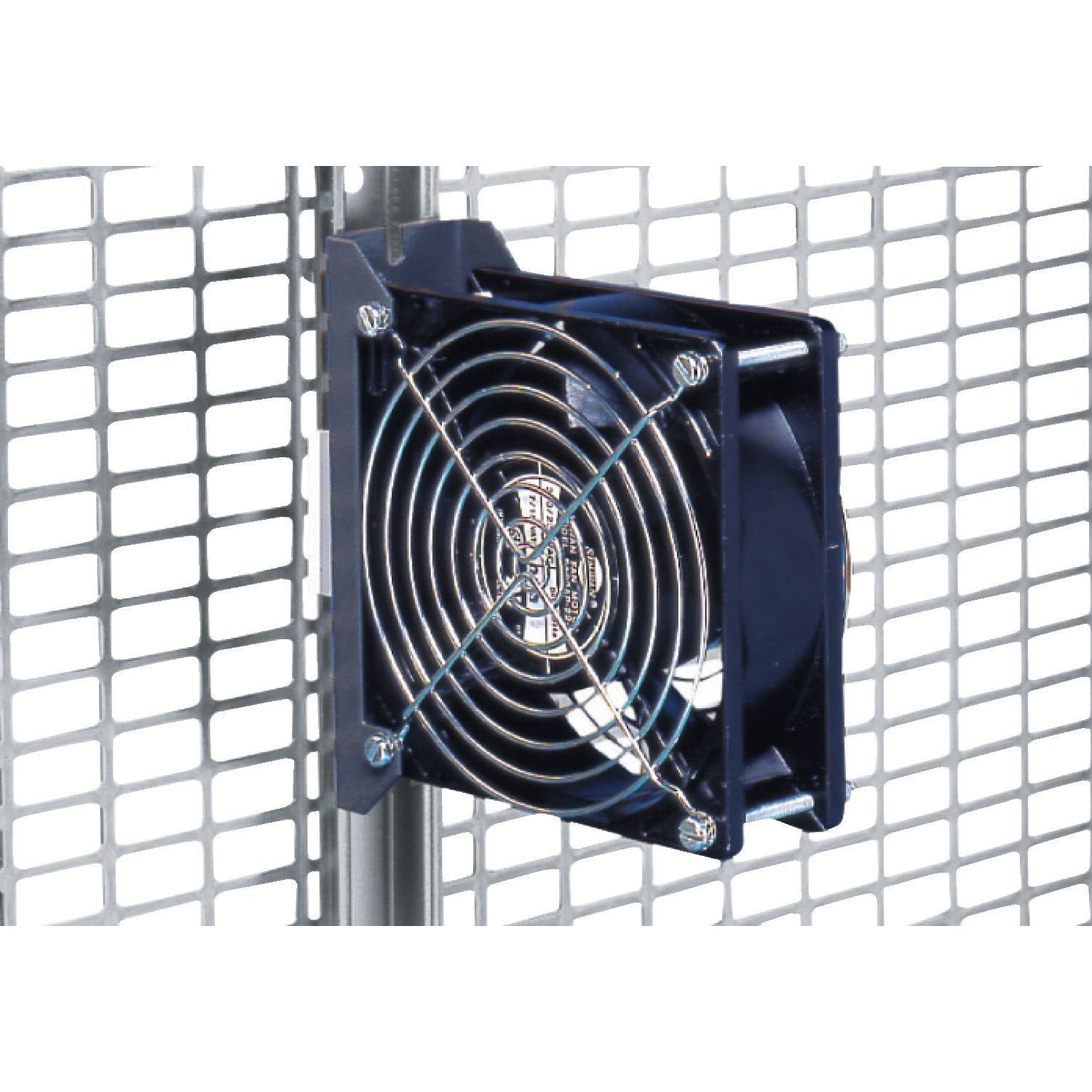

Picture of Climasys forced vent. 170 m3/h, 230V without grille
SKU:

NSYCVF170M230

Climasys forced vent. 170 m3/h, 230V without grille

$79.01
Available for Shipping : 01-Jan-2025
Climasys forced vent. 170 m3/h, 230V without grille
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
End of life manual
Declaration of conformity
Brochure
Product Page Link
Product Data Sheet
This product is a fan that is designed to provide reliable and efficient cooling It is made of steel and comes with two protective grilles on the front and rear surfaces, as well as a fixing collar It has a power range of 17 W and an input voltage of 230 V 50/60 Hz It has a noise level of 41-41 dB and a free flow rate of 170 m3/h at 50 Hz

Products specifications

Attribute name Attribute value
Main
Input voltage 230 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Range compatibility Prisma P
Air flow free flow rate: 170 m3/h at 50 Hz
Complementary
Noise level 41-41 dB
Material protective grille: steel
Height 119 mm external:
Width 119 mm external:
Depth 38 mm external:
Net weight 0.82 kg
Device composition 1 fixing collar, 2 protective grille: on the front and rear surfaces, 1 axial motor
Power range 17 W
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6 cm
Package 1 Width 15 cm
Package 1 Length 17 cm
Package 1 Weight 846 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 20 cm
Package 2 Width 40 cm
Package 2 Length 30 cm
Package 2 Weight 8.954 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75 cm
Package 3 Width 100 cm
Package 3 Length 120 cm
Package 3 Weight 300 kg
