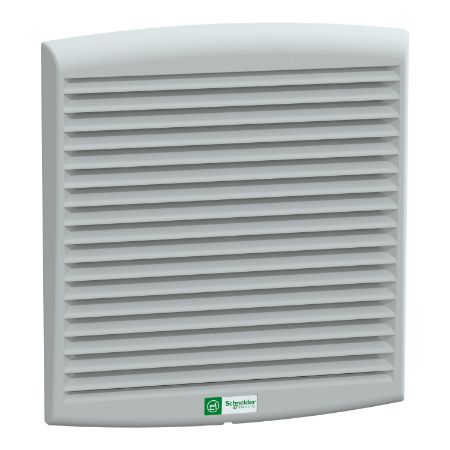

Picture of ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2
SKU:

NSYCVF300M115PF

ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2

$118.73
ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Product environmental
User guide
End of life manual
Declaration of conformity
Brochure
Instruction sheet
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 36 W 50 Hz, 36 W 60 Hz. Free flow rate with standard filter of 300 m3/h at 50 Hz and 300 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute nameAttribute value
Main
Input voltage115 V 50/60 Hz
RangeClimaSys
Product nameClimaSys CV
Product or component typefan
Type of ventilation filterstandard
Air flowfree flow rate with standard filter: 350 m3/h at 60 Hz, free flow rate with standard filter: 300 m3/h at 50 Hz
[Us] rated supply voltage75...126 V
Complementary
Noise level55-56 dB
Bearing typeball
[In] rated current0.32-0.32 A 60 Hz, 0.35-0.35 A 50 Hz
Colouroutlet grille: grey (RAL 7035)
IP degree of protectionIP54
Materialoutlet grille: injected thermoplastic (ASA PC)
Height268 mm external:
Width248 mm external:
Ambient air temperature for storage-40-70 °C
Cut-out dimensions223 x 223 mm
Depth116 mm external:
Net weight1.3 kg
Device composition1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure158 Pa flow rate 0 m³/h
Condition of useoverfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software
Power range36 W 60 Hz, 36 W 50 Hz
Ambient air temperature for operation-10-70 °C
Connections - terminalsFaston connector
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height18.5 cm
Package 1 Width25 cm
Package 1 Length27.5 cm
Package 1 Weight1.72 kg
Unit Type of Package 22
Number of Units in Package 264
Package 2 Height120 cm
Package 2 Width80 cm
Package 2 Length120 cm
Package 2 Weight126 kg
