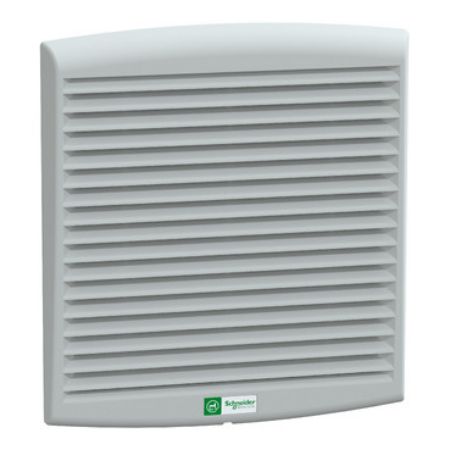

Picture of ClimaSys forced vent. IP54, 262m3/h, 24V DC, with outlet grille and filter G2
SKU:

NSYCVF300M24DPF

ClimaSys forced vent. IP54, 262m3/h, 24V DC, with outlet grille and filter G2

$339.73 INC GST
Available for Shipping : 18-Feb-2025
ClimaSys forced vent. IP54, 262m3/h, 24V DC, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
End of life manual
Declaration of conformity
Brochure
Instruction sheet
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 24V DC. 13 W 50 Hz. Free flow rate with standard filter of 262 m3/h at 50 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute name Attribute value
Main
Input voltage 24 V DC
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 262 m3/h
[Us] rated supply voltage 12...30 V
Complementary
Noise level 55-56 dB
Bearing type ball
[In] rated current 0.53-0.53 A
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 268 mm external:
Width 248 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 223 x 223 mm
Depth 103.4 mm external:
Net weight 1.1 kg
Device composition 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 158 Pa flow rate 0 m³/h
Condition of use surrounding environment must be relatively clean, filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided
Power range 13 W
Ambient air temperature for operation -10-70 °C
Connections - terminals cable
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.5 cm
Package 1 Width 25.0 cm
Package 1 Length 27.5 cm
Package 1 Weight 1.36 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 28.0 cm
Package 2 Width 41.0 cm
Package 2 Length 59.0 cm
Package 2 Weight 6.46 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 95.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 101.0 kg
