SKU:

NSYCVF300M48DPF

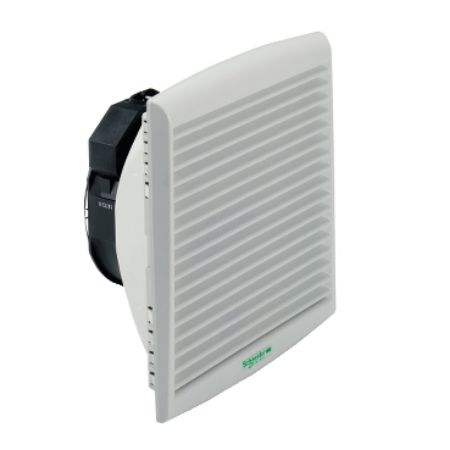

ClimaSys forced vent. IP54, 300m3/h, 48V DC, with outlet grille and filter G2

$186.54

Qty:

Available for Shipping : 05-Jan-2025

ClimaSys forced vent. IP54, 300m3/h, 48V DC, with outlet grille and filter G2

Manufacturer: Schneider Electric

Product environmental

User guide

End of life manual

Declaration of conformity

Brochure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Input voltage	48 V DC
Range	ClimaSys
Product name	ClimaSys CV
Product or component type	fan
Type of ventilation filter	standard
Air flow	free flow rate with standard filter: 262 m3/h
[Us] rated supply voltage	25...60 V
Complementary
Noise level	55-56 dB
Bearing type	ball
[In] rated current	0.24-0.24 A
Colour	outlet grille: grey (RAL 7035)
IP degree of protection	IP54
Material	outlet grille: injected thermoplastic (ASA PC)
Height	268 mm external:
Width	248 mm external:
Ambient air temperature for storage	-40-70 °C
Cut-out dimensions	223 x 223 mm
Depth	103.4 mm external:
Net weight	1.1 kg
Device composition	1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure	158 Pa flow rate 0 m³/h
Condition of use	overfrequent filter replacement should be avoided, outside temperature must be 5 °C lower than inside temperature, flow rates depends on the work point, see ProClima software, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean
Power range	11 W
Ambient air temperature for operation	-10-70 °C
Connections - terminals	cable
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	18 cm
Package 1 Width	25 cm
Package 1 Length	28 cm
Package 1 Weight	1.36 kg
Unit Type of Package 2	2
Number of Units in Package 2	50
Package 2 Height	100 cm
Package 2 Width	100 cm
Package 2 Length	120 cm
Package 2 Weight	83 kg
