SKU:

NSYCVF38M48DPF

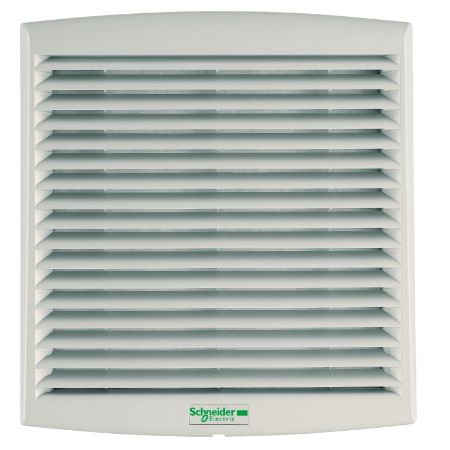

ClimaSys forced vent. IP54, 44m3/h, 48V DC, with outlet grille and filter G2

$73.06 INC GST

Qty:

Available for Shipping : 19-Feb-2025

ClimaSys forced vent. IP54, 44m3/h, 48V DC, with outlet grille and filter G2

Manufacturer: Schneider Electric

Product environmental

User guide

End of life manual

Declaration of conformity

Brochure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Input voltage	48 V DC
Range	ClimaSys
Product name	ClimaSys CV
Product or component type	fan
Type of ventilation filter	standard
Air flow	free flow rate with standard filter: 44 m3/h
[Us] rated supply voltage	36...56 V
Complementary
Noise level	40-41 dB
Bearing type	ball
[In] rated current	0.07-0.07 A
Colour	outlet grille: grey (RAL 7035)
IP degree of protection	IP54
Material	outlet grille: injected thermoplastic (ASA PC)
Height	137 mm external:
Width	117 mm external:
Ambient air temperature for storage	-40-70 °C
Cut-out dimensions	92 x 92 mm
Depth	49 mm external:
Net weight	0.23 kg
Device composition	1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure	29 Pa flow rate 0 m³/h
Condition of use	filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, surrounding environment must be relatively clean, outside temperature must be 5 °C lower than inside temperature
Power range	3.6 W
Ambient air temperature for operation	-10-70 °C
Connections - terminals	cable
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15 cm
Package 1 Width	15 cm
Package 1 Length	10 cm
Package 1 Weight	265 g
