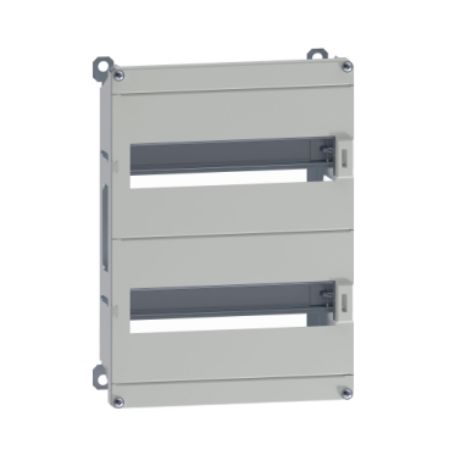

Picture of Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 24 modules, H400xW300mm
SKU:

NSYDLM24

Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 24 modules, H400xW300mm

$164.22
Available for Shipping : 18-Mar-2025
Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 24 modules, H400xW300mm
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet

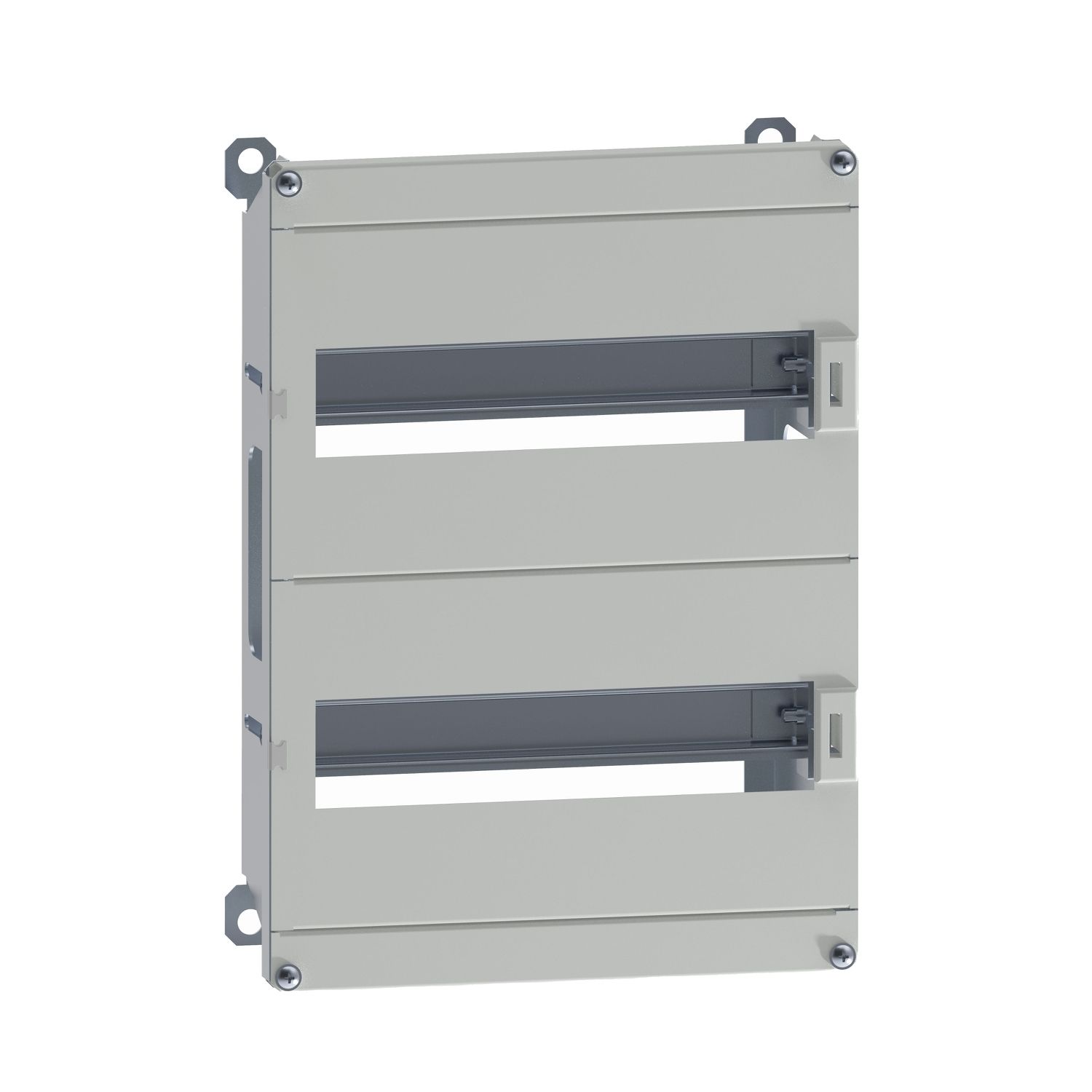

Modular chassis DLM type for SPACIAL WM enclosures. H is 400 x W is 300 mm, 24 (18mm) modules. Multi-purpose, modular distribution application. Step slide, front of enclosure mounting. Adjustment in height from 40 to 85 mm for DIN rail. Steel made. Grey RAL 7035. 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 front panel (35 mm DIN rail).

Products specifications

Attribute name Attribute value
Main
Device short name DLM
Device application multi-purpose, modular distribution application
Quantity per set set of 1
Mounting location step slide, front of enclosure
Range Spacial
Device composition 2 front panels with 35 mm DIN rail, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 1 chassis structure
Product or component type chassis
Accessory / separate part category mounting accessory
Range compatibility Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D
Enclosure nominal dimensions -
Complementary
Adjustment in height from 40 to 85 mm for DIN rail
Colour front panel: grey (RAL 7035)
Type of front plate plain and cut-out plates
Material steel
Height 353 mm
Width 255 mm
Number of cut-out 2 cut-outs
Depth 101.5 mm
Fixing mode by fixing element - on front and back with supports location
Surface finish polyester powder
Total number of 18 mm modules 24
Number of horizontal rows 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 27.000 cm
Package 1 Length 36.500 cm
Package 1 Weight 2.548 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.842 kg
