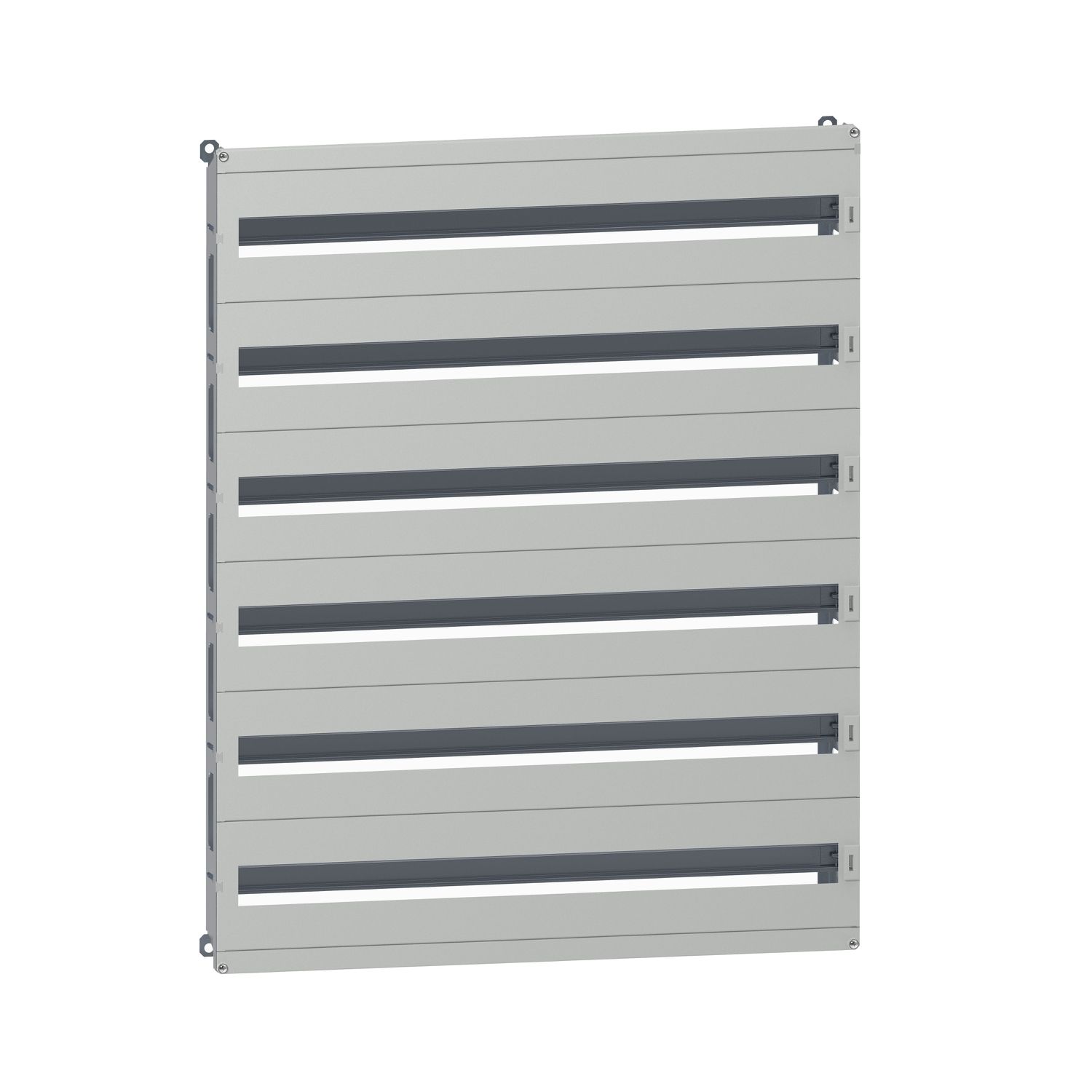

Picture of Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 234 modules, H1000xW800mm
SKU:

NSYDLM240

Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 234 modules, H1000xW800mm

$543.67 INC GST
Available for Shipping : 11-Feb-2025
Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 234 modules, H1000xW800mm
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
Modular chassis DLM type for SPACIAL WM enclosures. H is 1000 x W is 800 mm, 234 (18mm) modules. Multi-purpose, modular distribution application. Step slide, front of enclosure mounting. Adjustment in height from 40 to 85 mm for DIN rail. Steel made. Grey RAL 7035. 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 6 front panel (35 mm DIN rail).

Products specifications

Attribute name Attribute value
Main
Device short name DLM
Device application modular distribution application, multi-purpose
Quantity per set set of 1
Mounting location step slide, front of enclosure
Range Spacial
Device composition 6 front panels with 35 mm DIN rail, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 1 chassis structure
Product or component type chassis
Accessory / separate part category mounting accessory
Range compatibility Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D
Enclosure nominal dimensions -
Complementary
Adjustment in height from 40 to 85 mm for DIN rail
Colour front panel: grey (RAL 7035)
Type of front plate plain and cut-out plates
Material steel
Height 953 mm
Width 755 mm
Number of cut-out 6 cut-outs
Depth 101.5 mm
Fixing mode by fixing element - on front and back with supports location
Surface finish polyester powder
Total number of 18 mm modules 240
Number of horizontal rows 6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 76.500 cm
Package 1 Length 97.000 cm
Package 1 Weight 13.427 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 160.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 147.270 kg
