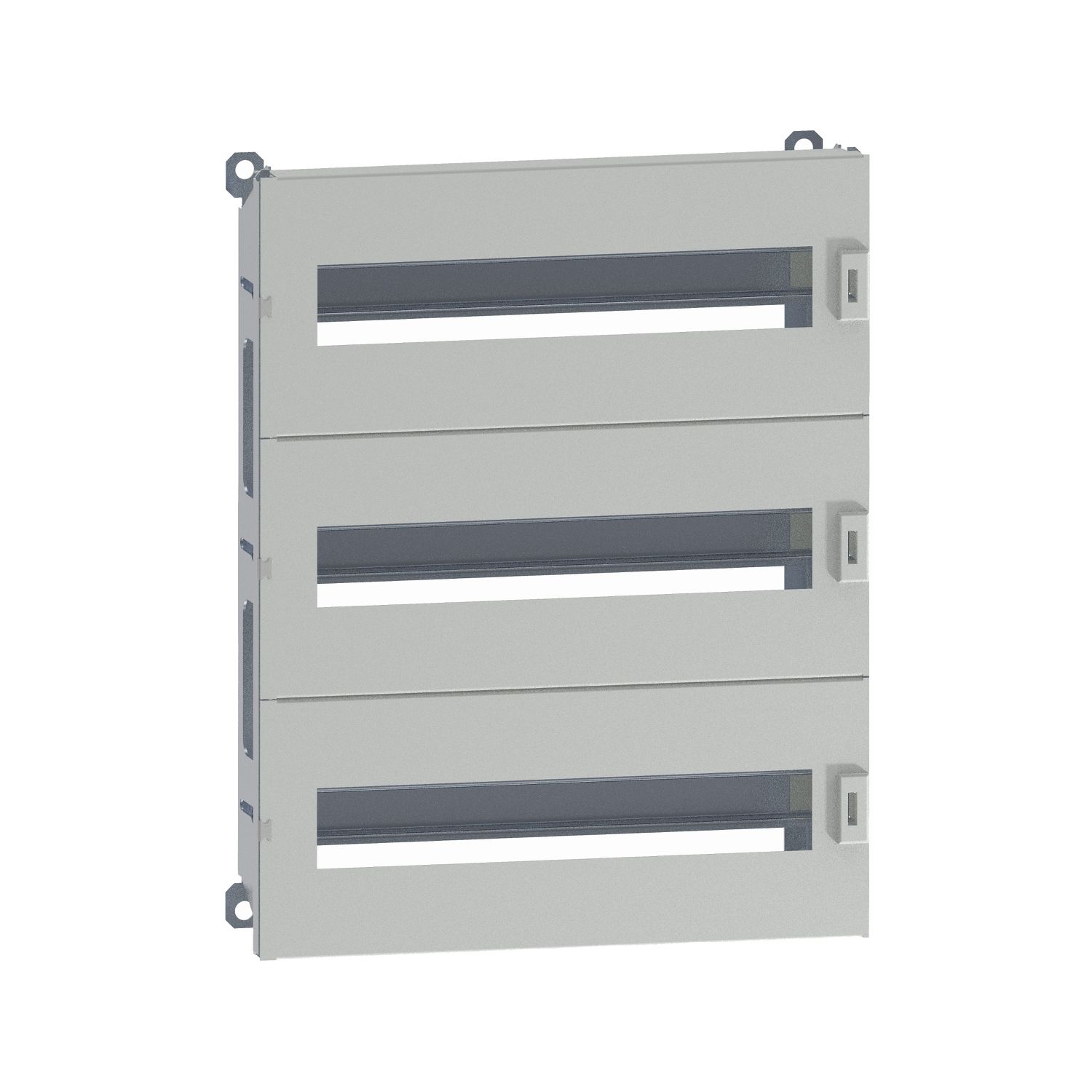

Picture of Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 48 modules, H500xW400mm
SKU:

NSYDLM48

Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 48 modules, H500xW400mm

$255.04
Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 48 modules, H500xW400mm
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Product environmental
Product Page Link
Product Data Sheet
Modular chassis DLM type for SPACIAL WM enclosures. H is 500 x W is 400 mm, 48 (18mm) modules. Multi-purpose, modular distribution application. Step slide, front of enclosure mounting. Adjustment in height from 40 to 85 mm for DIN rail. Steel made. Grey RAL 7035. 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panel (35 mm DIN rail).

Products specifications

Attribute nameAttribute value
Main
Device short nameDLM
Device applicationmodular distribution application, multi-purpose
Quantity per setset of 1
Mounting locationfront of enclosure, step slide
RangeSpacial
Device composition3 front panels with 35 mm DIN rail, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 1 chassis structure
Product or component typechassis
Accessory / separate part categorymounting accessory
Range compatibilitySpacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D
Enclosure nominal dimensions-
Complementary
Adjustmentin height from 40 to 85 mm for DIN rail
Colourfront panel: grey (RAL 7035)
Type of front plateplain and cut-out plates
Materialsteel
Height453 mm
Width355 mm
Number of cut-out3 cut-outs
Depth101.5 mm
Fixing modeby fixing element - on front and back with supports location
Surface finishpolyester powder
Total number of 18 mm modules48
Number of horizontal rows3
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.000 cm
Package 1 Width36.500 cm
Package 1 Length46.500 cm
Package 1 Weight3.654 kg
Unit Type of Package 22
Number of Units in Package 22
Package 2 Height30 cm
Package 2 Width40 cm
Package 2 Length60 cm
Package 2 Weight7.958 kg
Unit Type of Package 33
Number of Units in Package 316
Package 3 Height90.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight75.664 kg
