SKU:

NSYMM43

Plain mounting plate H400xW300mm made of galvanised sheet steel

$40.40 INC GST
Available for Shipping : 06-Feb-2025

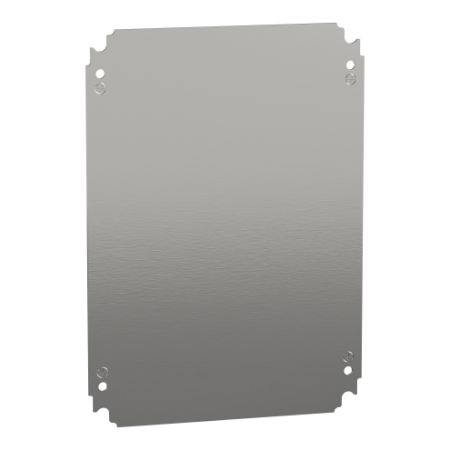

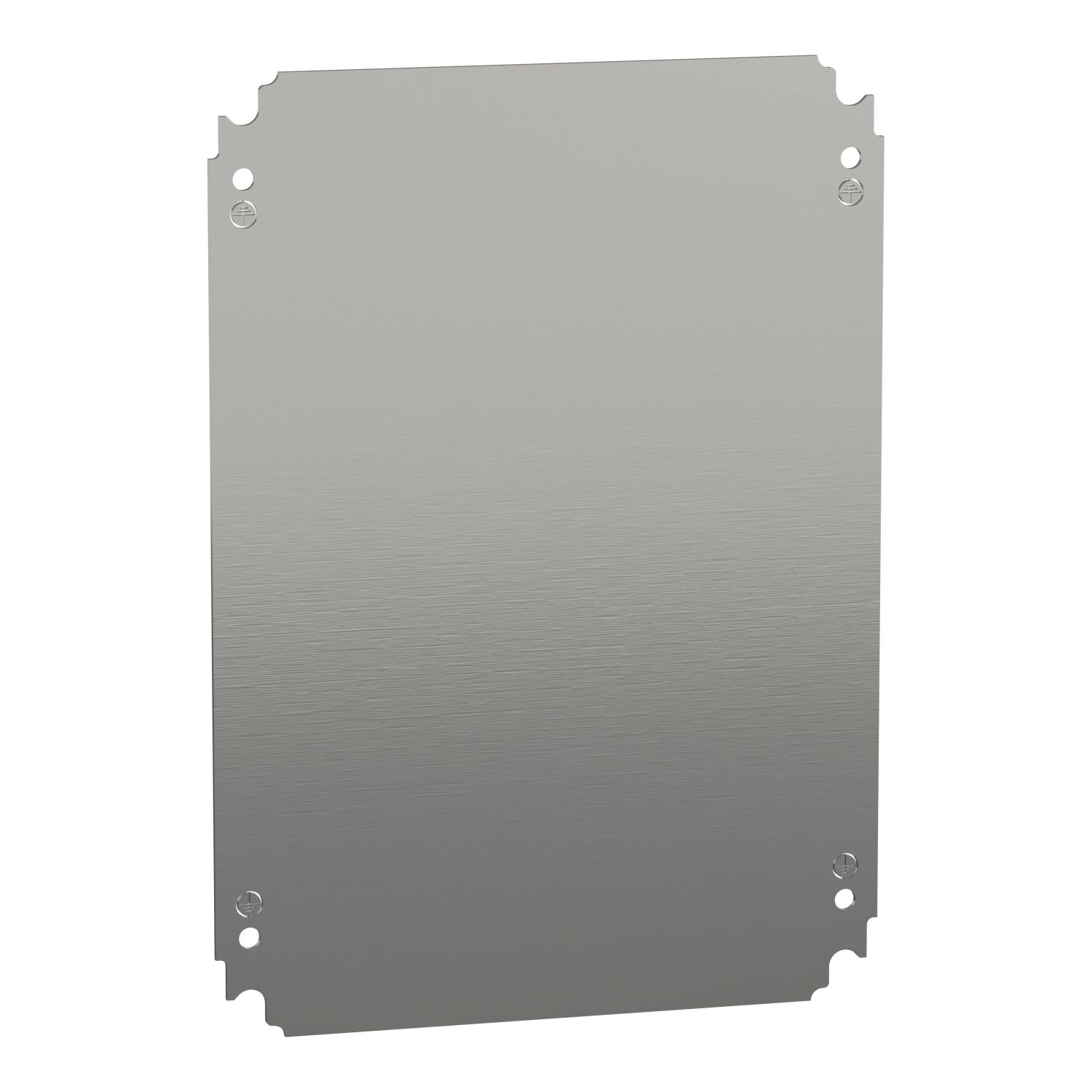

Plain mounting plate H400xW300mm made of galvanised sheet steel
Manufacturer: Schneider Electric
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is400 x W is300 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.

Products specifications

Attribute name Attribute value
Main
Mounting plate description plain
Device application multi-purpose
Quantity per set set of 1
Material galvanised steel
Mounting location direct fixing on backstuds, step slide
Range Spacial
Product or component type mounting plate
Accessory / separate part category mounting accessory
Range compatibility Thalassa Thalassa PLM, Spacial Spacial S3X, Spacial Spacial CRN, Spacial Spacial S3D
Enclosure nominal dimensions - H: 300 mm W: 400 mm , - H: 400 mm W: 300 mm
Complementary
Height 350 mm
Width 250 mm
Permanent permissible load 60 kg
Fixing mode by fixing element, screwed on backstuds - screw type M8
Net weight 1.28 kg
Thickness 1.8 mm
Variant particularity installation in enclosures with inverted dimensions
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 25.000 cm
Package 1 Length 35.000 cm
Package 1 Weight 1.280 kg
Unit Type of Package 2 2
Number of Units in Package 2 280
Package 2 Height 37.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 383.000 kg
