SKU:

NSYMP208

Plain mounting plate, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H2000 W800mm, galvanized steel

$227.46
Available for Shipping : 01-Jan-2025

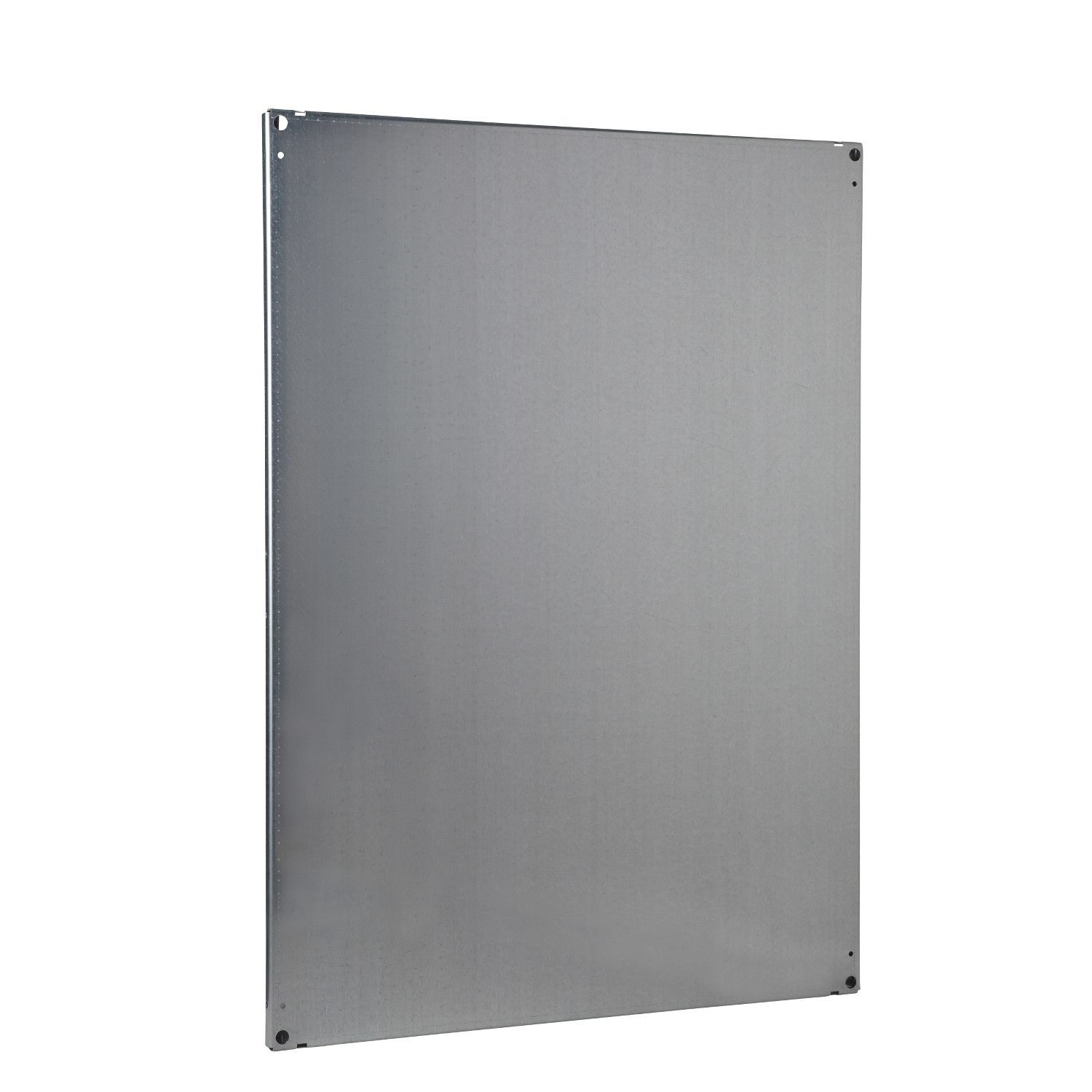

Plain mounting plate, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H2000 W800mm, galvanized steel
Manufacturer: Schneider Electric
Spacial SF/SM galvanized mounting plate. 1999 x 800 mm. Max. load is 600 kg if positioned in the back, 500 kg if in intermediate position of enclosure. Equipped with a perimeter reinforcement rib. Galvanised steel. 2 sliding shoes included.

Products specifications

Attribute name Attribute value
Main
Mounting plate description plain
Device application multi-purpose
Quantity per set set of 1
Material galvanised steel
Range Spacial
Device composition 2 sliding shoes, 1 mounting plate
Product or component type mounting plate
Accessory / separate part category mounting accessory
Range compatibility Spacial Spacial SMX, Spacial Spacial SFX, Spacial Spacial SM, Spacial Spacial SF
Enclosure nominal dimensions - H: 2000 mm W: 800 mm
Complementary
Maximum load 300 kg/m²
Height 1897 mm real: , 2000 mm nominal: , 1850 mm fixing centers:
Width 696 mm real: , 650 mm fixing centers: , 800 mm nominal:
Permanent permissible load 600 kg back of the enclosure, 500 kg intermediate position
Depth 27 mm
Fixing mode by fixing brackets
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 70.0 cm
Package 1 Length 191.5 cm
Package 1 Weight 31.0 kg
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 80.0 cm
Package 2 Width 200.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 641.0 kg
