SKU:

NSYMR43

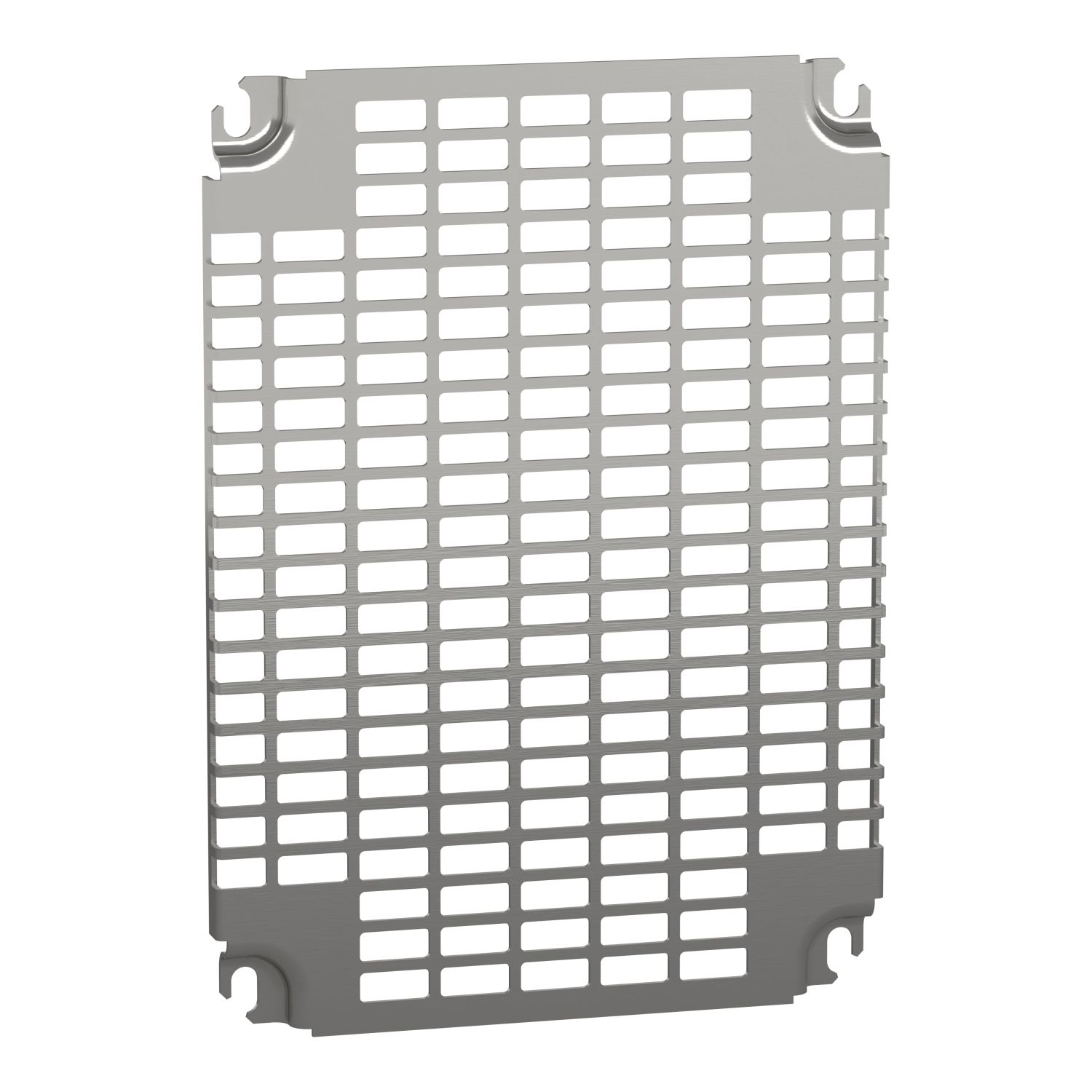

Monobloc perforated plates , H400xW300mm with universal perforations 11x26mm

$90.65 INC GST
Available for Shipping : 11-Feb-2025
Monobloc perforated plates , H400xW300mm with universal perforations 11x26mm
Manufacturer: Schneider Electric
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is400 x W is300 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 198 slots. Variant particularity is Installation in rear of enclosure.

Products specifications

Attribute name Attribute value
Main
Mounting plate description Telequick perforated
Device application multi-purpose
Quantity per set set of 1
Material steel
Mounting location step slide, direct fixing on backstuds
Range Spacial
Product or component type mounting plate
Surface finish zinc coated
Accessory / separate part category mounting accessory
Range compatibility Thalassa Thalassa PLM, Spacial Spacial S3X, Spacial Spacial CRN, Spacial Spacial S3D
Enclosure nominal dimensions - H: 400 mm W: 300 mm
Complementary
Height 348 mm
Width 251 mm
Number of slots 198
Cut-out dimensions 11 x 26 mm
Depth 15 mm
Fixing mode by fixing element, screwed on backstuds - screw type M8
Net weight 0.682 kg
Thickness 2 mm
Variant particularity installation in rear of enclosure
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 25.0 cm
Package 1 Length 35.0 cm
Package 1 Weight 720.0 g
Unit Type of Package 2 2
Number of Units in Package 2 572
Package 2 Height 90.0 cm
Package 2 Width 100.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 434.0 kg
