SKU:

NSYPIN43

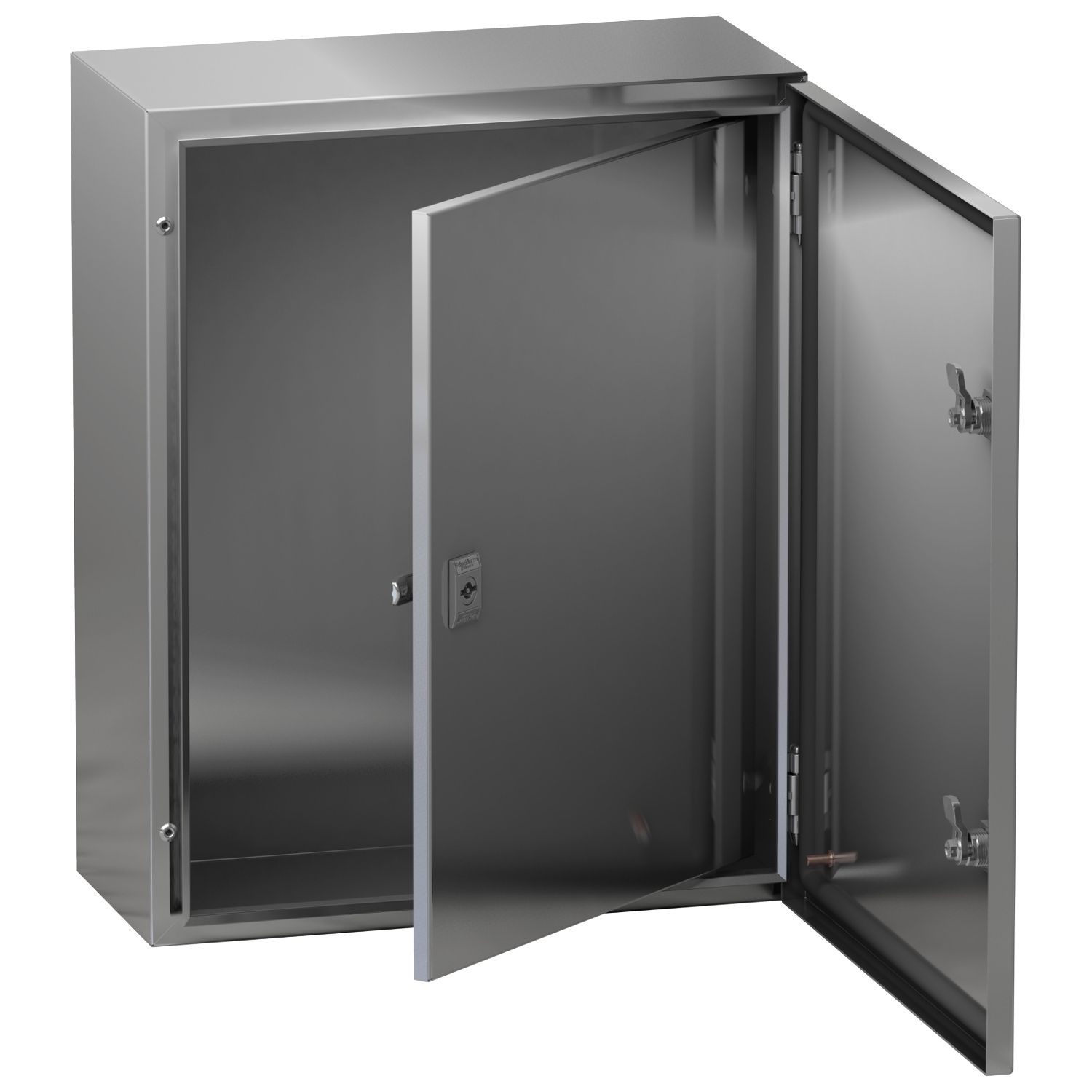

Internal door for Spacial WM encl. H400xW300 steel, RAL7035.Adjustable in depth

$318.36
Available for Shipping : 24-Nov-2024
Internal door for Spacial WM encl. H400xW300 steel, RAL7035.Adjustable in depth
Manufacturer: Schneider Electric
Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is400 x W is300 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Mounting location step slide, front side
Range Spacial
Device composition 2 mounting uprights, 4 fixing brackets, 1 door
Product or component type door
Accessory / separate part category enclosure accessory
Range compatibility Spacial Spacial S3X, Spacial Spacial S3D, Spacial Spacial CRN
Enclosure nominal dimensions -
Complementary
Door type internal plain
Colour all faces: grey (RAL 7035)
Maximum load 30 kg/m²
Material door: sheet steel
Height 400 mm nominal:
Width 300 mm nominal:
Door opening side reversible
Net weight 1.6 kg
Lock type lock 3 mm double bar
Surface finish polyester powder
Number of locks 1
Adjustment pitch 25 mm (on step slides)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 26.500 cm
Package 1 Length 39.000 cm
Package 1 Weight 1.633 kg
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 12.081 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 90.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 108.648 kg
