SKU:

NSYPLA754G

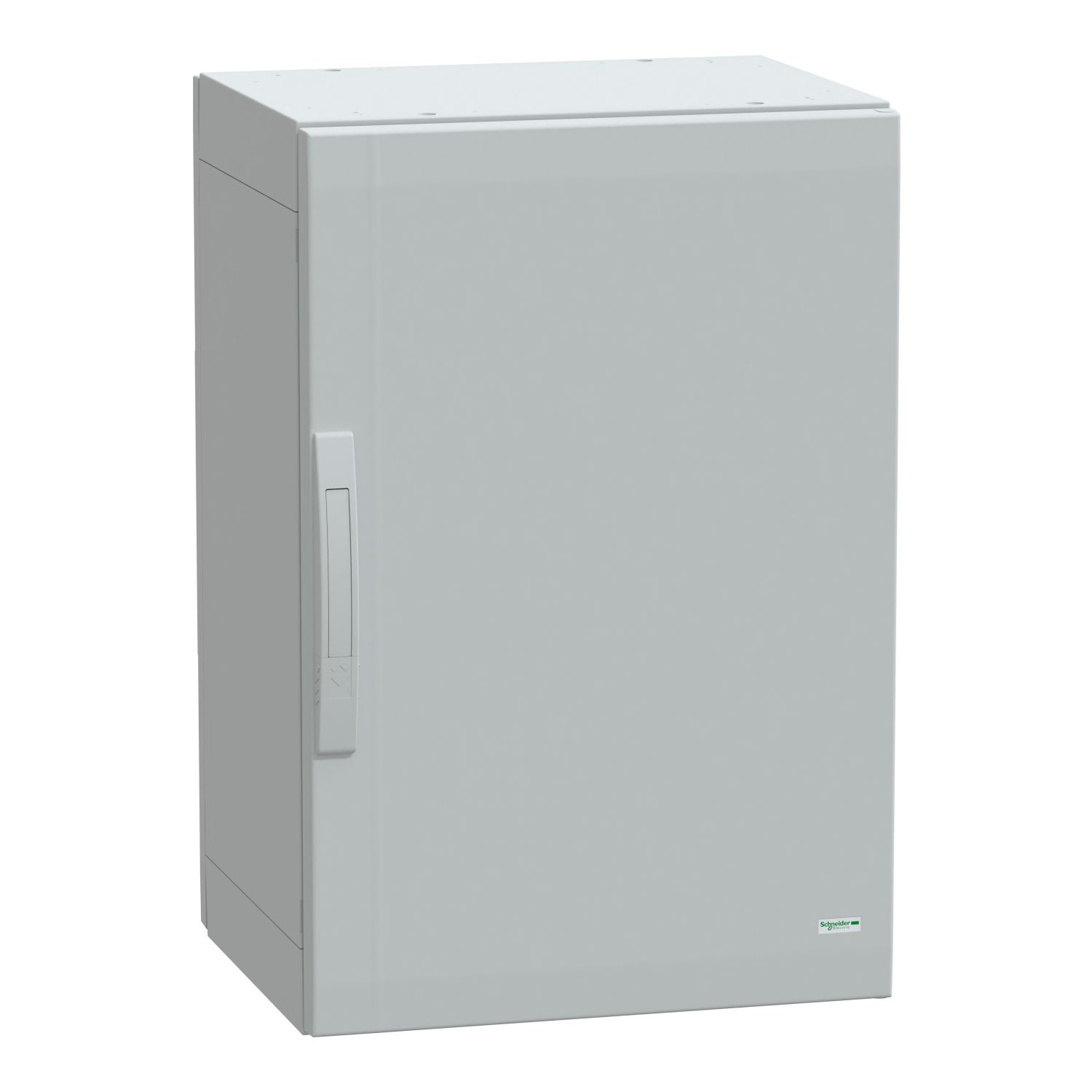

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, completely sealed, 750x500x420mm, IP65, IK10

$757.78

Qty:

Product Selector

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, completely sealed, 750x500x420mm, IP65, IK10

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

Product environmental

Product Page Link

Product Data Sheet

This PLA is a multi-purpose, floor-standing unit that is ideal for a variety of applications It measures 750mm in height, 500mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside The door features a two-point lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes The enclosure provides robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C, in accordance with the IEC 62208 standard, and has an IK10 rating according to IEC 62262, indicating high resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL/cUL listed and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Products specifications

Attribute name	Attribute value
Main
Enclosure nominal width	500 mm
Device short name	PLA
Device application	multi-purpose
Enclosure nominal depth	420 mm
Enclosure mounting	floor-standing
Range	Thalassa
Enclosure nominal height	750 mm
Device composition	1 door, 1 rear panel, 2 side part, 1 bottom part, 1 top part
Product name	Thalassa PLA
Product or component type	suitable enclosure
Complementary
Colour	grey (RAL 7035)
NEMA degree of protection	NEMA 1, NEMA 3X, NEMA 3R, NEMA 13, NEMA 5, NEMA 12, NEMA 3S, NEMA 2, NEMA 3
Electrical insulation class	class II
Lock type	2 points lock, 5 mm double-bar
Door type	plain front
Removable parts	rear panel by fixing element, door by hinges
Accessibility for operation	rear, front
Material	polyester reinforced with fibreglass
Body type	sealed top and bottom part assembled with side parts
Number of doors	1 door(s)
Door opening side	reversible (120 °)
Standards	IEC 62208, UL 508 A
Product certifications	DNV Marine, UL/cUL listed, Veritas
Environment
Fire resistance	960 °C conforming to IEC 62208
IP degree of protection	IP65 conforming to IEC 60529 (completely sealed)
Ambient air temperature for storage	-35-90 °C
IK degree of protection	IK10 conforming to IEC 62262 (plain door)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	45.0 cm
Package 1 Width	52.4 cm
Package 1 Length	74.6 cm
Package 1 Weight	19.2 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	165.5 cm
Package 2 Width	100.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	166.0 kg
