SKU:

NSYPLAZ12104G

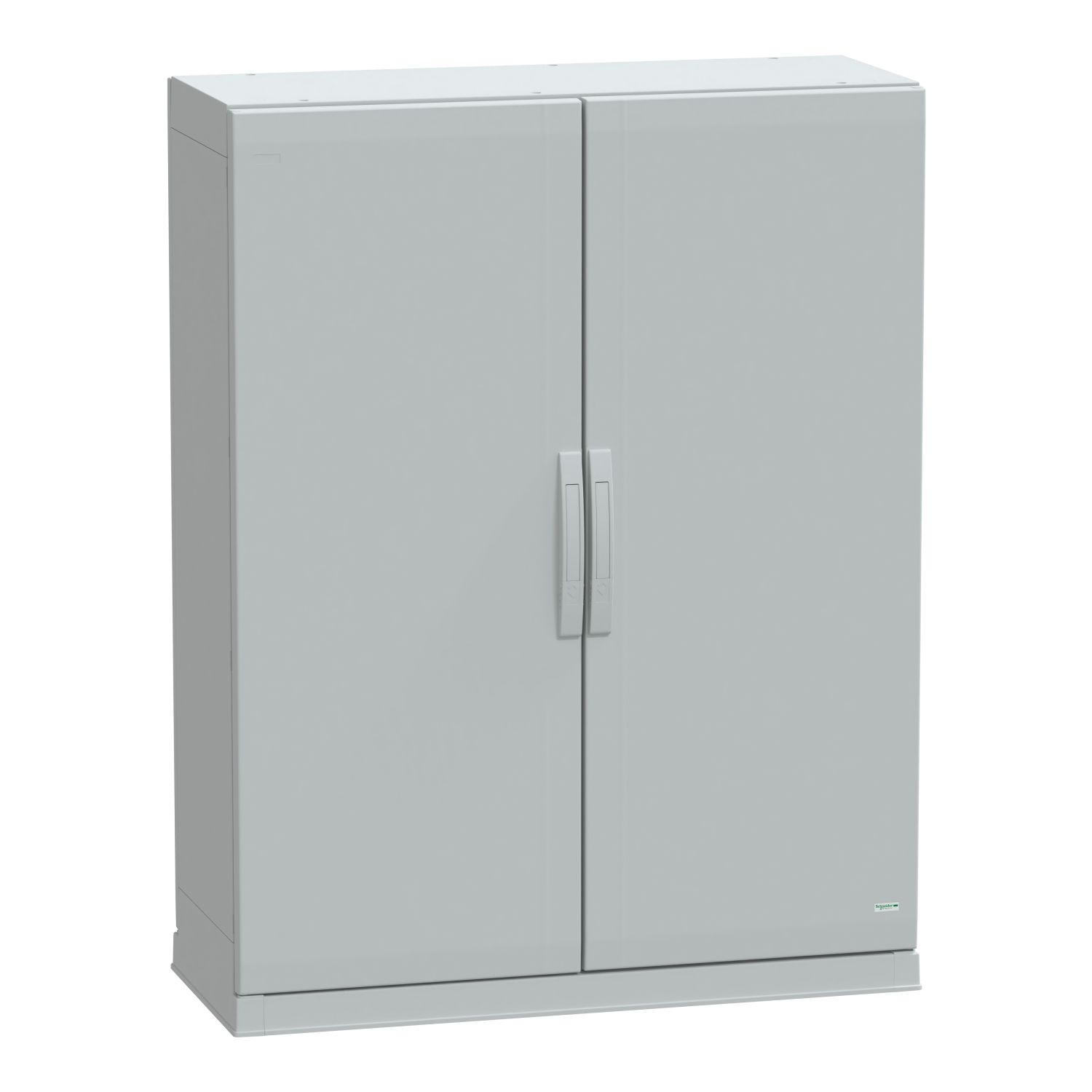

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1250x1000x420mm, IP54, IK10

$1,297.57

Qty:

Available for Shipping : 10-Mar-2025

Product Selector

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1250x1000x420mm, IP54, IK10

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Product environmental

Product Page Link

Product Data Sheet

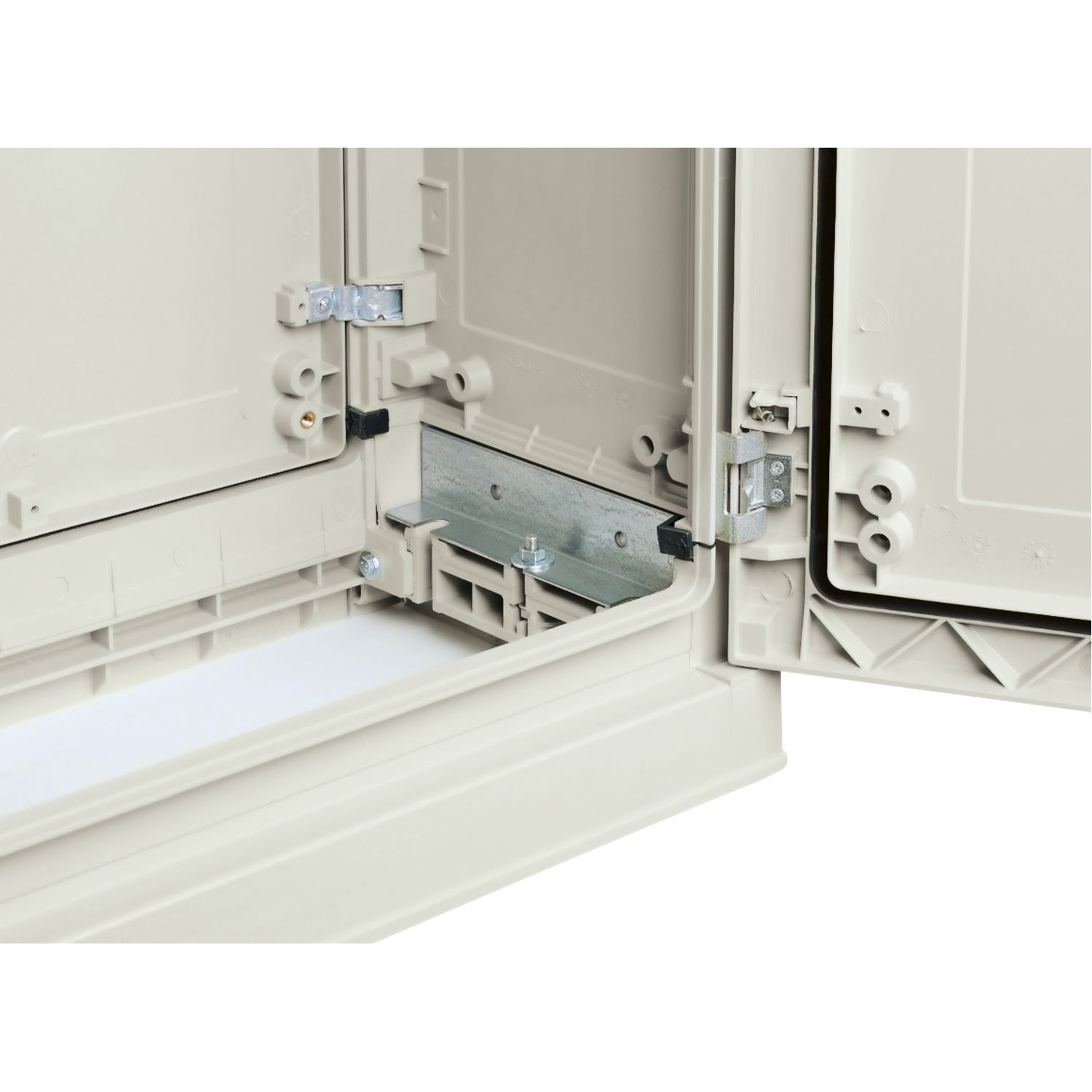

This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for a variety of applications It has a nominal height of 1250mm, a width of 1000mm, and a depth of 420mm The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments It is available in grey (RAL 7035) and consists of two side parts, two plain front doors, two rear panels, and one plinth The doors can be opened up to 120° from both the right and left sides, and feature a four-point lock with a handle that has a 5mm double-bar insert The doors and rear panels can be removed for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C, in accordance with the IEC 62208 standard It has an IK10 rating (IEC 62262), indicating high resistance to impacts, and an IP54 rating (IEC 60529), providing protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and enable the construction of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance It is designed for easy access to the equipment inside, with rear, bottom, and front accessibility
