SKU:

NSYPLAZ1553G

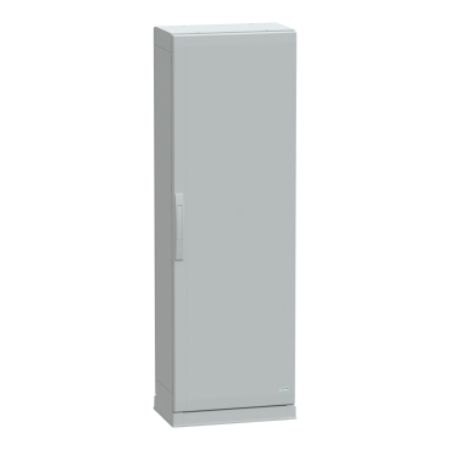

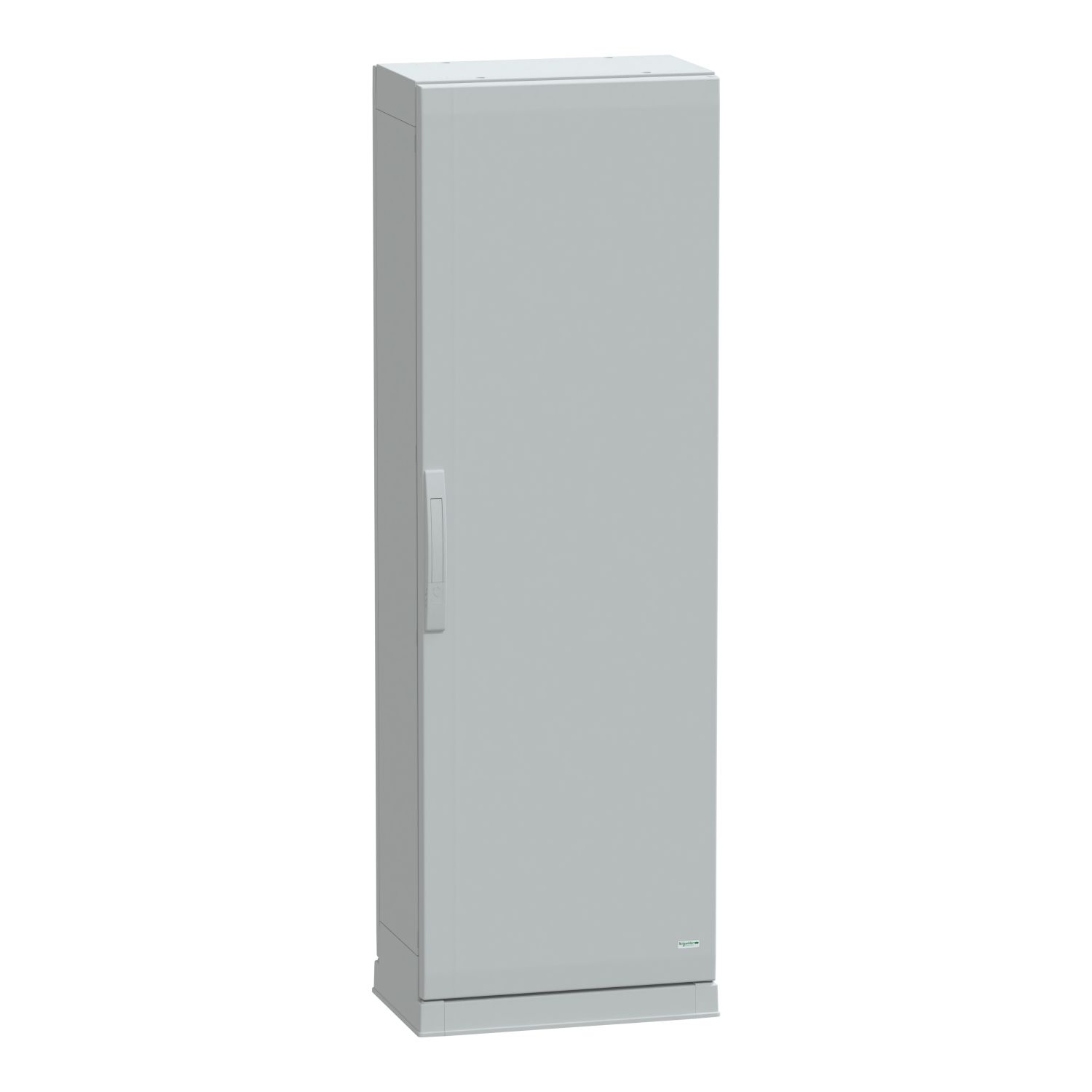

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1500x500x320mm, IP54, IK10

$1,683.56

Qty:

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1500x500x320mm, IP54, IK10

Estimated Delivery Date: 01-Nov-2024

Attribute name	Attribute value
Main
Enclosure nominal width	500 mm
Device short name	PLAZ
Device application	multi-purpose
Enclosure nominal depth	320 mm
Enclosure mounting	floor-standing
Range	Thalassa
Enclosure nominal height	1500 mm
Device composition	1 plinth, 1 door, 1 rear panel, 2 side part, 1 bottom part, 1 top part
Product name	Thalassa PLA
Product or component type	suitable enclosure
Complementary
Colour	grey (RAL 7035)
Material	polyester reinforced with fibreglass
Body type	sealed top and open bottom part assembled with side parts
Electrical insulation class	class II
Number of doors	1 door(s)
Door opening side	reversible (120 °)
Lock type	4 points lock, handle with 5 mm double bar insert
Door type	plain front
Standards	IEC 62208
Removable parts	rear panel by fixing element, door by hinges
Accessibility for operation	bottom, front, rear
Product certifications	Veritas
Environment
Fire resistance	960 °C conforming to IEC 62208
IP degree of protection	IP54 conforming to IEC 60529 (plinth type open bottom)
Ambient air temperature for storage	-35-90 °C
IK degree of protection	IK10 conforming to IEC 62262 (plain door)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	156.5 cm
Package 1 Width	53.0 cm
Package 1 Length	35.0 cm
Package 1 Weight	31.713 kg
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	120 cm
Package 2 Width	100 cm
Package 2 Length	171 cm
Package 2 Weight	177 kg
