SKU:

NSYPLM86G

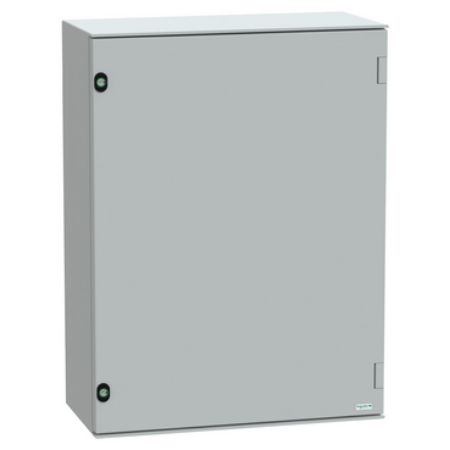

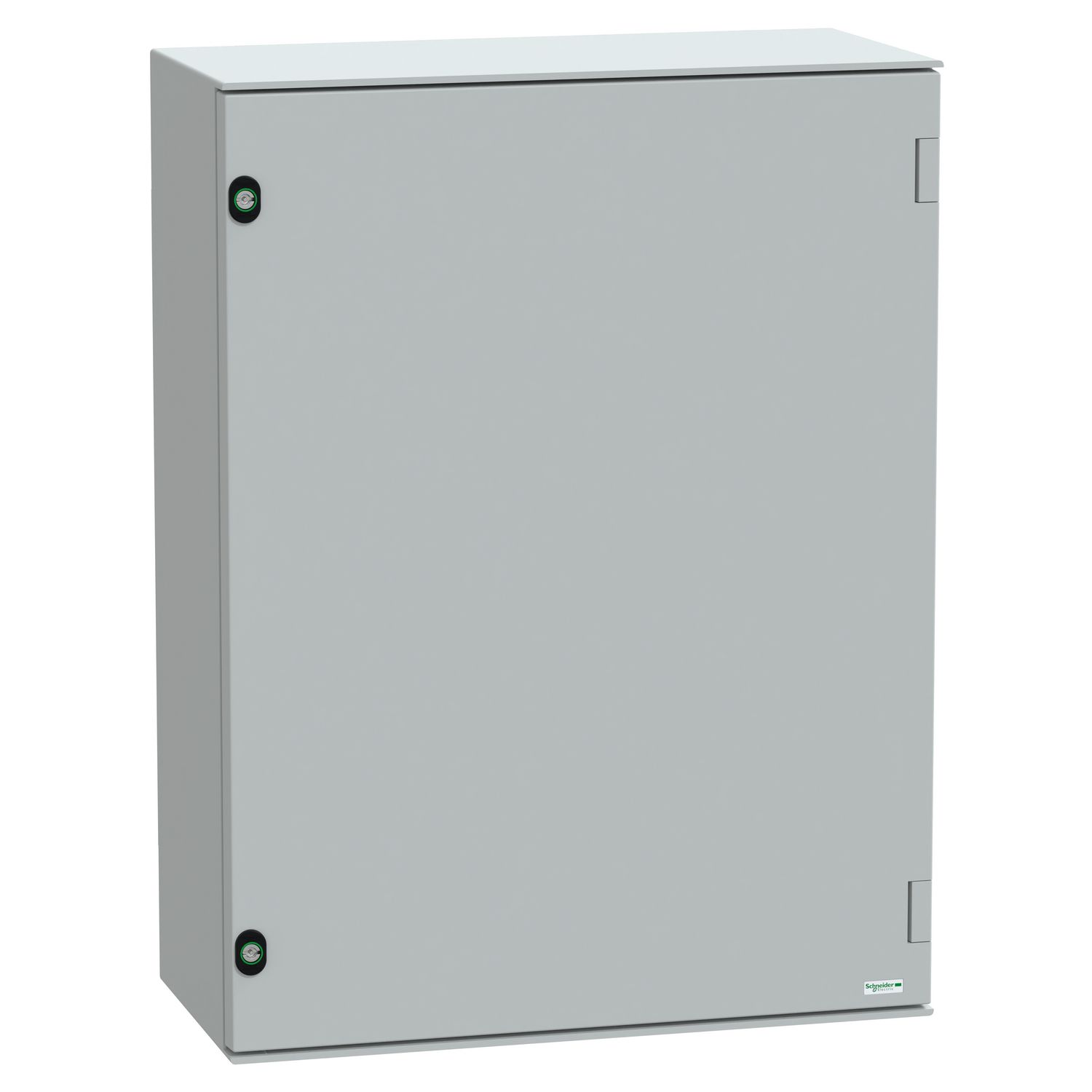

Thalassa, Wall mounted polyester enclosure, Thalassa PLM, plain door, 847x636x300mm, IP66, IK10, RAL 7035

$612.26 INC GST
Available for Shipping : 12-May-2025
Thalassa Wall-Mounted Polyester Enclosure
  • Wall-mounted enclosure with a plain door
  • Model: Thalassa PLM
  • Dimensions: 847 x 636 x 300 mm
  • IP66 for high ingress protection
  • IK10 for superior impact resistance
  • Constructed from durable polyester
  • Finished in RAL 7035 light grey
Manufacturer: Schneider Electric

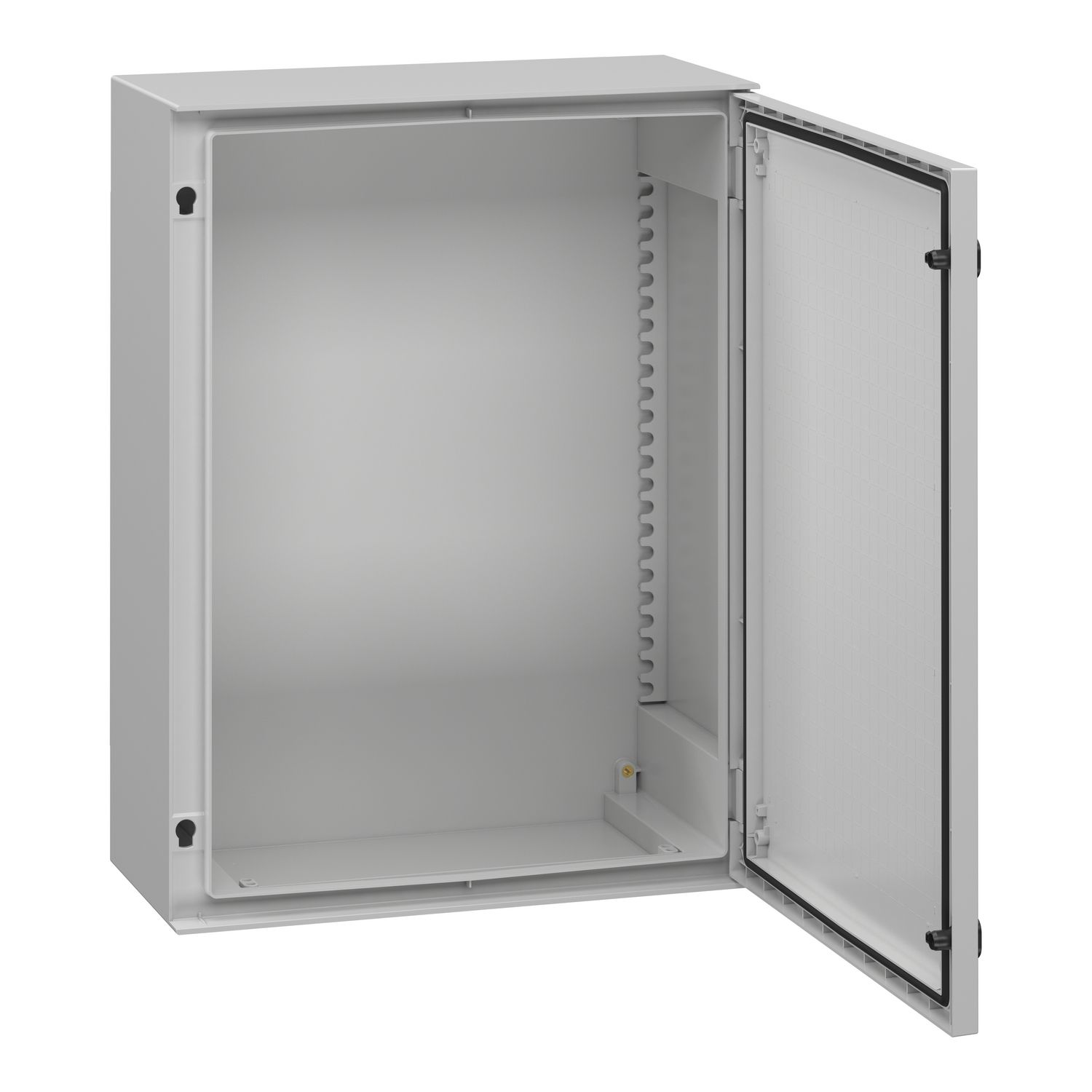

Thalassa PLM is a strong and reliable wall-mounting enclosure. The enclosure measures 847 x 636 x 300 mm and comes without a mounting plate.

For security, it includes two locks with a 3 mm double-bar key. The front panel is easily accessible, making it convenient to use. This enclosure is tough with fibreglass-reinforced polyester. It comes in a grey RAL 7035 finish.

With IP66 protection it is dust proof and resistant to strong water jets. With an IK10 rating, it can handle heavy impacts without damage. The enclosure also meets NEMA 13 and 4X standards, providing extra protection against dirt, water, and corrosion. It has a fire resistance rating of 960°C, ensuring safety in high-temperature environments.

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 636 mm
Device short name PLM
Device application multi-purpose
Enclosure nominal depth 300 mm
Enclosure mounting wall mounted
Range Thalassa
Door type plain
Lock type 3 mm double-bar lock
Enclosure nominal height 847 mm
Device composition 2 lock, 1 door, 1 body
Product name Thalassa PLM
Product or component type compact enclosure
Complementary
Colour grey (RAL 7035)
Electrical insulation class class II
Number of locks 2
Removable parts door by hinges
Mounting plate description without mounting plate
Accessibility for operation front
Material polyester reinforced with fibreglass
Standards NEMA classification 13, NEMA classification 4X, IEC 62208
Product certifications UL
Environment
Fire resistance 960 °C conforming to IEC 62208
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -40-80 °C
IK degree of protection IK10 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 33.000 cm
Package 1 Width 66.500 cm
Package 1 Length 92.500 cm
Package 1 Weight 19.341 kg
