KIT FLUSH-MOUNTING POUR ATV T1

$515.23
Available for Shipping : 05-Jan-2025
KIT FLUSH-MOUNTING POUR ATV T1
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

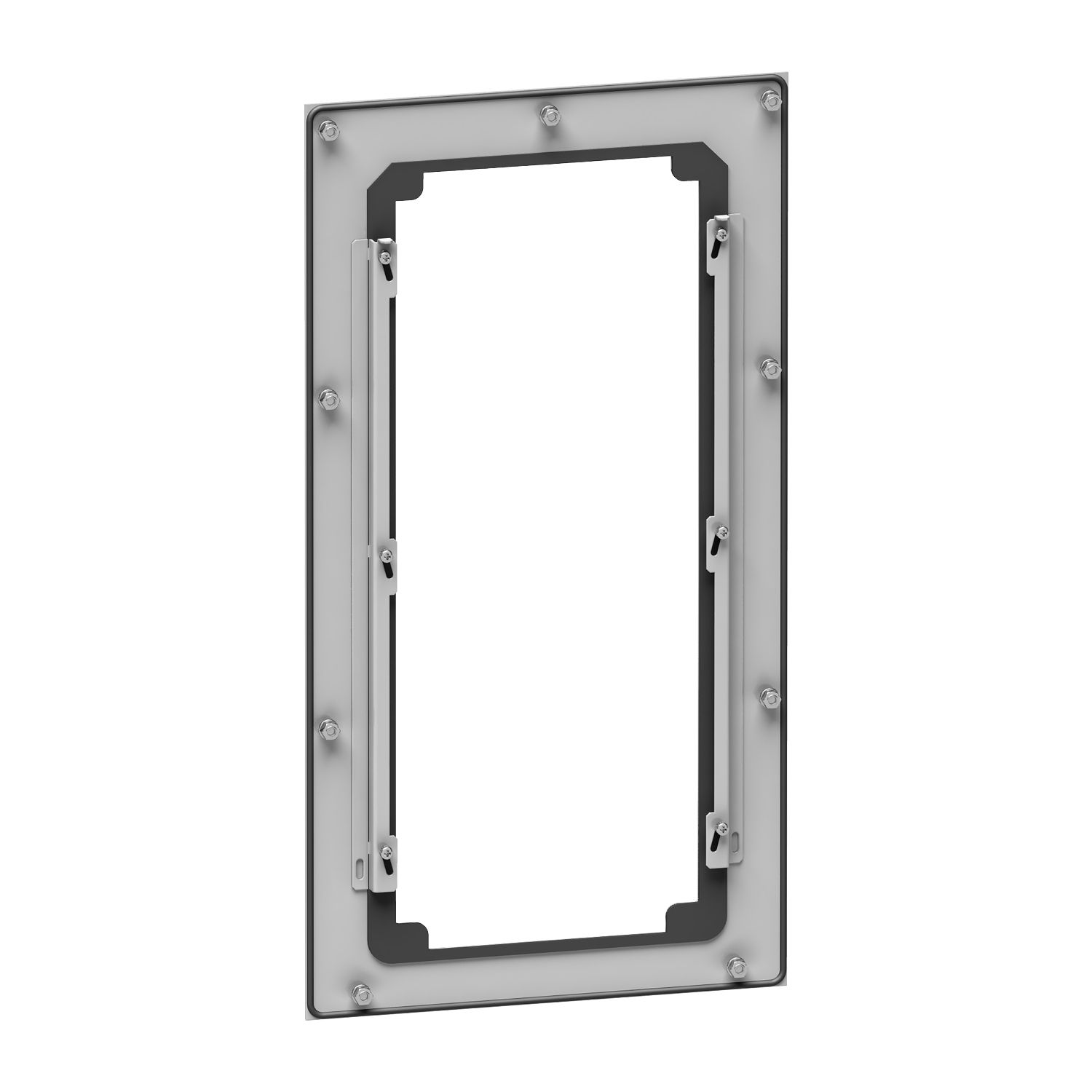

Flush mounting kit for variable speed drives in PanelSeT SFN, and Spacial SM and S3D electrical enclosures. It has nominal height and width of 360 and 235 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.

Products specifications

Attribute name Attribute value
Main
Mounting location mode 2 : inside enclosure, mode 1 : back of enclosure on mounting plate
Kit composition 1 x edge protector profile, plastic. , 1 x instruction sheet, 1 x drilling template, 1 x fixing accessories, 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts
Product specific application process and utilities
Range Spacial
Motor power kW 3 kW 380/480 V, 2.2 kW 380/480 V, 1.5 kW 380/480 V, 0.75 kW 380/480 V, 4 kW 220/240 V, 3 kW 220/240 V, 2.2 kW 220/240 V, 1.5 kW 220/240 V, 5.5 kW 380/480 V, 4 kW 380/480 V, 0.75 kW 220/240 V
Product or component type drive flush mounting kit
Accessory / separate part category mounting and fixing accessory
Range compatibility Altivar variable speed drive ATV930, Altivar variable speed drive ATV630, Spacial S3D enclosure: H:>=400 mm x W:>=300 mm, Spacial SF and SM enclosures: H:>=400 mm x W:>=300 mm
NEMA size 1
Complementary
Colour grey (RAL 7035)
Height 307 mm cut-out: , 360 mm external:
Width 190 mm cut-out: , 235 mm external:
Permanent permissible load 4.8 kg
Depth 22 mm wall-enclosure separation:
Net weight 1.58 kg
Services factory installation drive flush mounting kit on enclosure , configuration of enclosurepre-drilled back at requested dimensions
Environment
NEMA degree of protection NEMA 12 conforming to UL 508, NEMA 3R conforming to UL 508, NEMA Type 1 conforming to UL 508
IP degree of protection IP55 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 25 cm
Package 1 Length 38 cm
Package 1 Weight 1.58 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 29 cm
Package 2 Width 45 cm
Package 2 Length 120 cm
Package 2 Weight 15.8 kg
