SKU:

NSYS3X3215

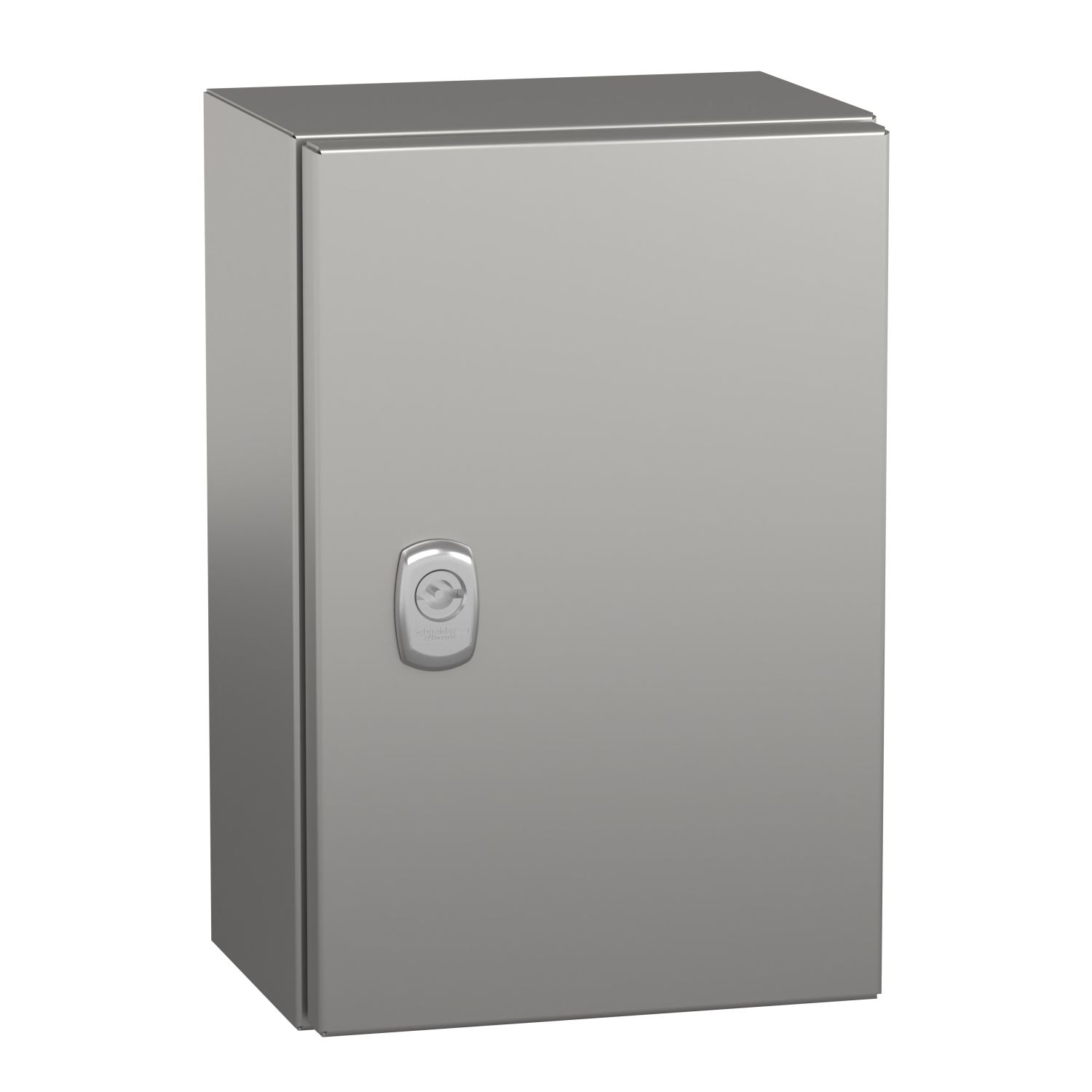

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 300x200x150mm, IP66

$435.62 INC GST
Available for Shipping : 11-Feb-2025
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 300x200x150mm, IP66
Manufacturer: Schneider Electric
Spacial S3X compact steel enclosure with plain front door. 300 x 200 x 150 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 200 mm
Device application multi-purpose
Enclosure nominal depth 150 mm
Range Spacial
Installation accessory type wall-mounting
Enclosure nominal height 300 mm
Device composition 1 door, 1 lock: door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Complementary
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Body type gutter shaped front rail, single piece body, cross-shaped structure
Removable parts door by hinges
Accessibility for operation front
Mounting plate description without mounting plate
Door type plain
Material hinge: stainless steel, lock: zamak, body and door: stainless steel 304L
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 3.08 kg
Lock type 3 mm double-bar lock
Type of gland plate without gland plate
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
IK degree of protection IK10 conforming to IEC 62262
Standards IEC 62208
Product certifications CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.5 cm
Package 1 Width 21.0 cm
Package 1 Length 31.0 cm
Package 1 Weight 2.95 kg
Unit Type of Package 2 2
Number of Units in Package 2 168
Package 2 Height 120 cm
Package 2 Width 100 cm
Package 2 Length 180 cm
Package 2 Weight 508 kg
