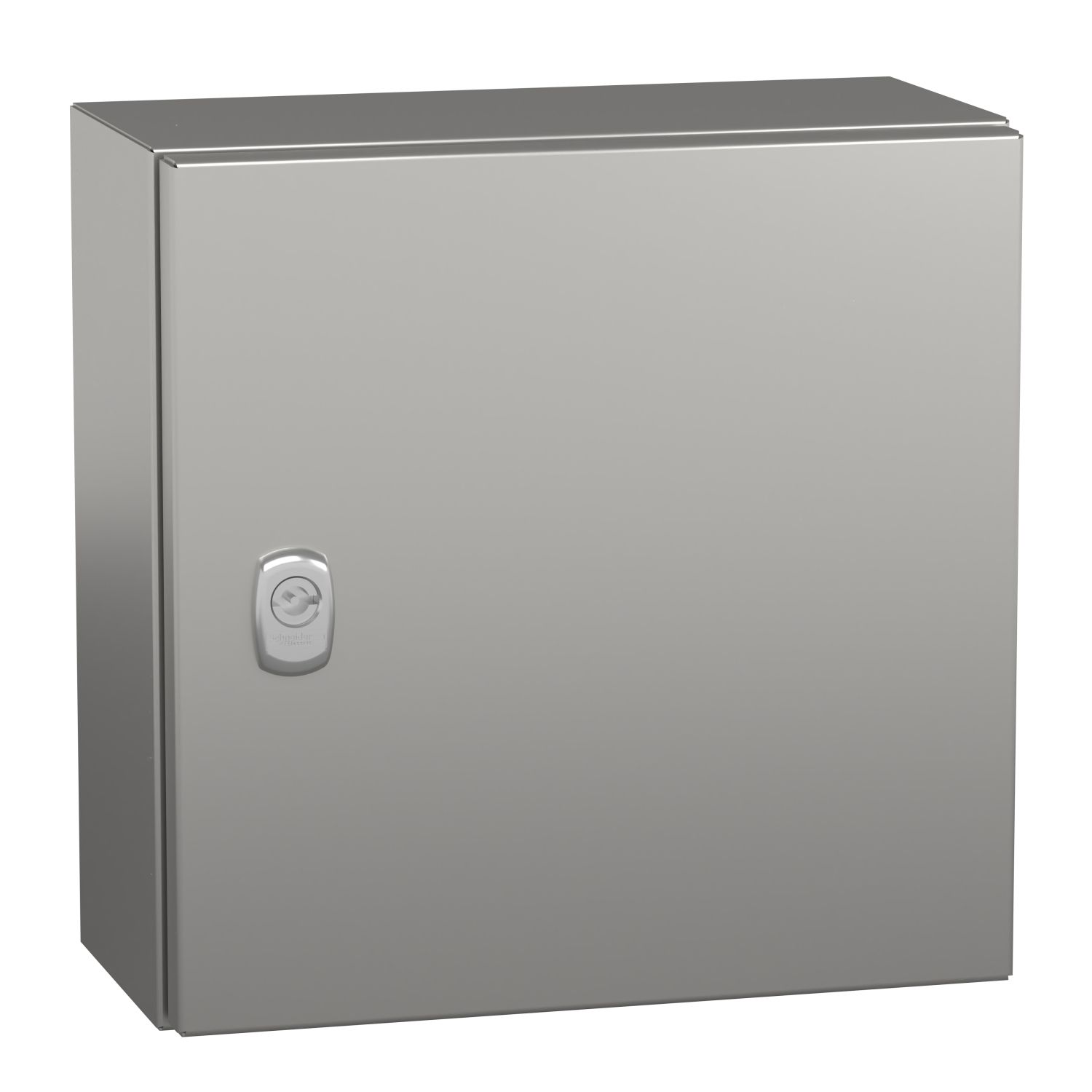

Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 300x300x150mm, IP66
SKU:

NSYS3X3315

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 300x300x150mm, IP66

$453.80
Available for Shipping : 24-Nov-2024
Product Selector
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 300x300x150mm, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Spacial S3X is a wall-mounting stainless steel 304L enclosure designed for multi-purpose applications and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 300mm, 300mm and 150mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door and one lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a 3mm double-bar lock insert The door can be removed for maintenance purposes The net weight of the enclosure is 4,062kg

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 300 mm
Device application multi-purpose
Enclosure nominal depth 150 mm
Range Spacial
Enclosure nominal height 300 mm
Device composition 1 door, 1 lock: door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Material hinge: stainless steel, lock: zamak, body and door: stainless steel 304L
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 4.062 kg
Lock type 3 mm double-bar lock
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications UL 508 type A, CAN/CSA 22
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.5 cm
Package 1 Width 31.0 cm
Package 1 Length 31.0 cm
Package 1 Weight 3.961 kg
Unit Type of Package 2 2
Number of Units in Package 2 126
Package 2 Height 120 cm
Package 2 Width 100 cm
Package 2 Length 200 cm
Package 2 Weight 487 kg

Related products

Picture of Chrome-plated handle lock 1242 E for PanelSeT S3X enclosure

Chrome-plated handle lock 1242 E for PanelSeT S3X enclosure

NSYCL1242ECSX
$46.01
View Detail
Picture of Door stay for PanelSeT WM enclosure encl. Mounted on encl. with a height >400

Door stay for PanelSeT WM enclosure encl. Mounted on encl. with a height >400

NSYAEDRSCST
$48.59
View Detail
Picture of Replace. Round lock, DB 3mm, for PanelSeT S3X enclosure, 100% stainless steel

Replace. Round lock, DB 3mm, for PanelSeT S3X enclosure, 100% stainless steel

NSYSTDCXH
$119.24
View Detail

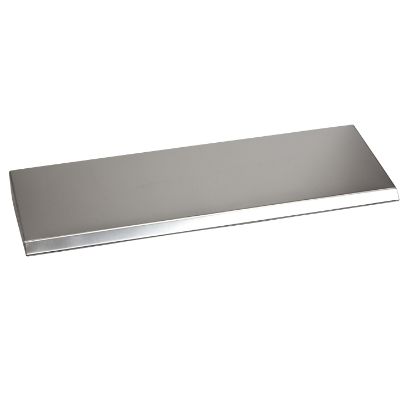

Picture of Stainless canopy 304L, Scotch Brite® finish. for WM enclosure W300xD150mm

Stainless canopy 304L, Scotch Brite® finish. for WM enclosure W300xD150mm

NSYTX3015
$354.98
View Detail

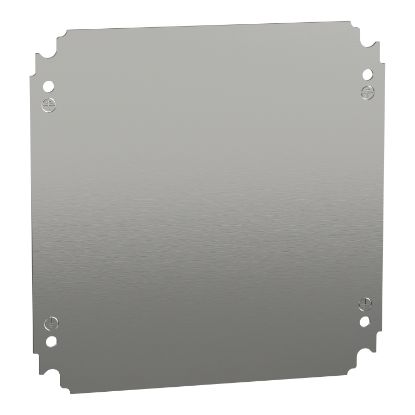

Picture of Plain mounting plate H300xW300mm made of galvanised sheet steel
