SKU:

NSYS3X6625

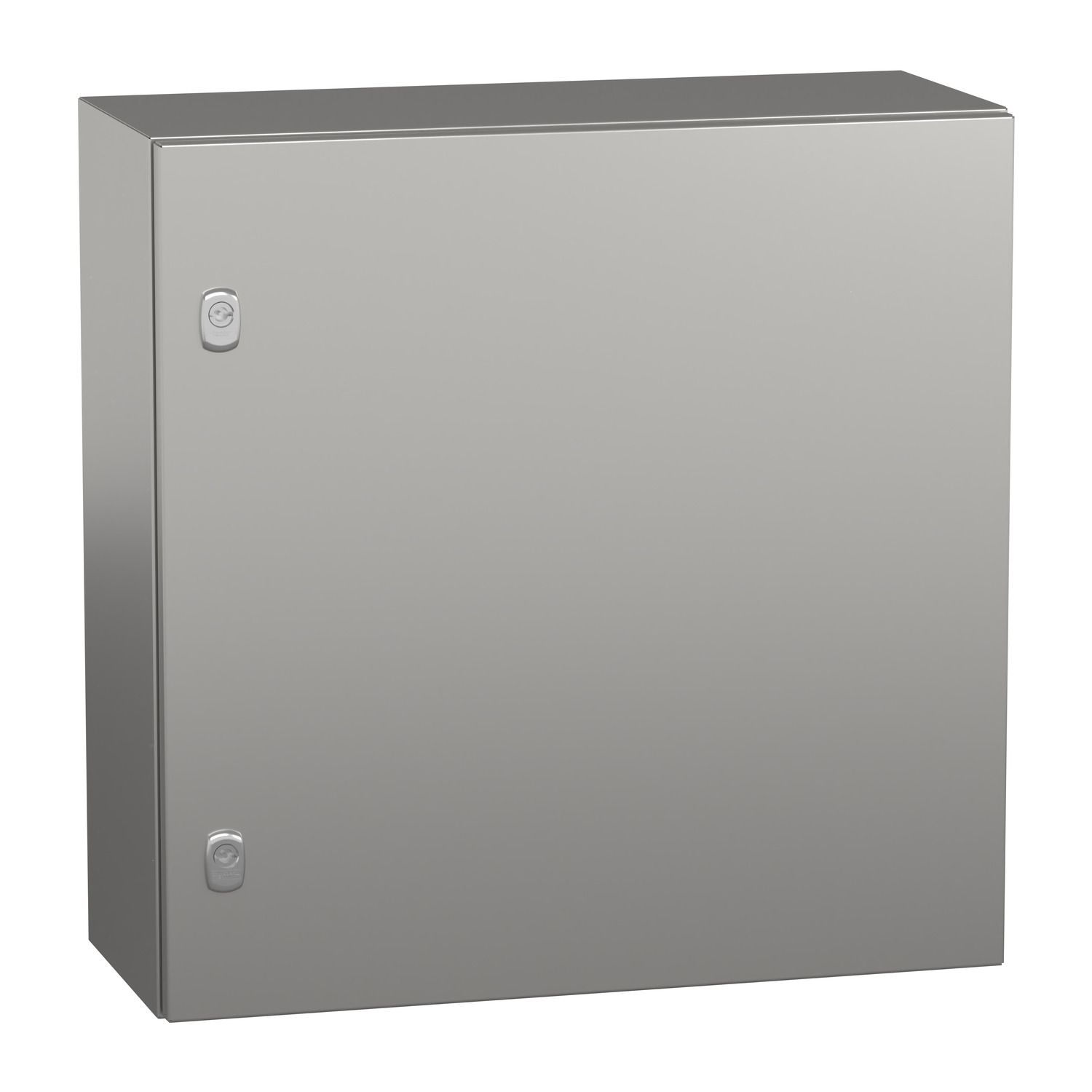

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x600x250mm, IP66

$897.26 INC GST
Available for Shipping : 23-Jan-2025
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x600x250mm, IP66
Manufacturer: Schneider Electric
Spacial S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion It has a nominal height, width and depth of 600mm, 600mm and 250mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door and two locks The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 13,902kg It has a high resistance to dust and water with an IP66 rating (IEC60529) and it can withstand high impact due its IK10 (IEC62262) It is certified to UL 508 type A and CAN/CSA 22 standards

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 600 mm
Device application multi-purpose
Enclosure nominal depth 250 mm
Range Spacial
Enclosure nominal height 600 mm
Device composition 2 perforated vertical profile drilled: door, 2 lock: door, 1 door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Material hinge: stainless steel, lock: zamak, body and door: stainless steel 304L
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 13.902 kg
Lock type 2 points lock, 3 mm double-bar
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.5 cm
Package 1 Width 61.0 cm
Package 1 Length 61.5 cm
Package 1 Weight 13.902 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 198.0 cm
Package 2 Width 100.0 cm
Package 2 Length 122.0 cm
Package 2 Weight 271.0 kg
