SKU:

NSYS3X6420

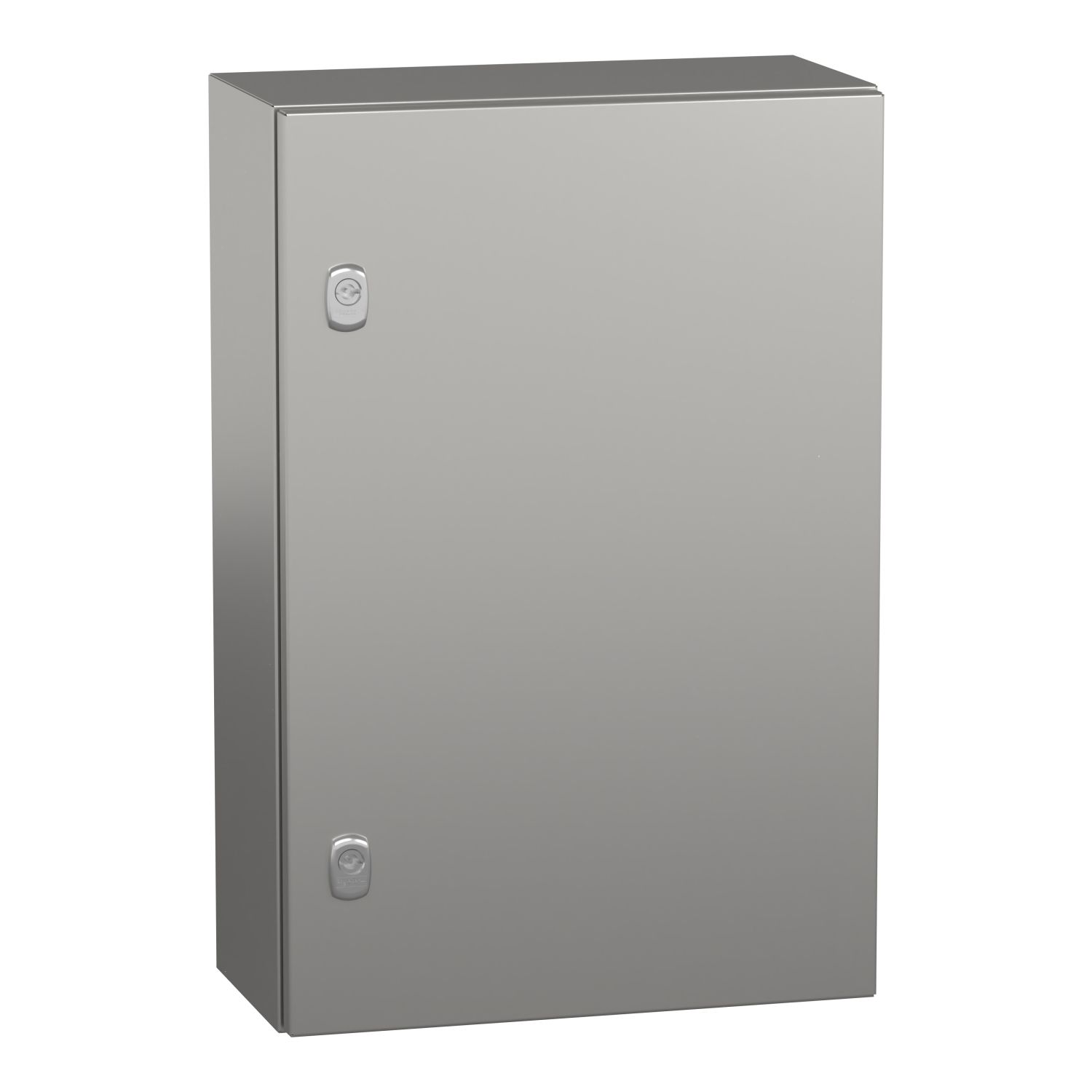

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x400x200mm, IP66

$768.12

Qty:

Available for Shipping : 05-Mar-2025

Product Selector

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x400x200mm, IP66

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Product environmental

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

Spacial S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 600mm, 400mm and 200mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door and two locks The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 9,446kg It is UL 508 type A and CAN/CSA 22 certified

Products specifications

Attribute name	Attribute value
Main
Enclosure nominal width	400 mm
Device application	multi-purpose
Enclosure nominal depth	200 mm
Range	Spacial
Enclosure nominal height	600 mm
Device composition	2 perforated vertical profile drilled: door, 2 lock: door, 1 door, 1 body
Product name	Spacial S3X
Product or component type	compact enclosure
Installation accessory type	wall-mounting
Complementary
Mounting plate description	without mounting plate
Door type	plain
Surface finish	lock: chromium plated, body and door: Scotch-Brite® brushed
Material	hinge: stainless steel, lock: zamak, body and door: stainless steel 304L
Number of doors	front face: 1 door(s)
Door opening side	reversible (120 °)
Net weight	9.446 kg
Lock type	2 points lock, 3 mm double-bar
Body type	gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate	without gland plate
Removable parts	door by hinges
Accessibility for operation	front
Environment
IP degree of protection	IP66 conforming to IEC 60529
Environmental characteristic	corrosive, specific hygiene
Standards	IEC 62208
IK degree of protection	IK10 conforming to IEC 62262
Product certifications	CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	21.5 cm
Package 1 Width	41.0 cm
Package 1 Length	61.0 cm
Package 1 Weight	9.446 kg
Unit Type of Package 2	2
Number of Units in Package 2	30
Package 2 Height	198.0 cm
Package 2 Width	100.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	307.0 kg
