SKU:

NSYSBM152012

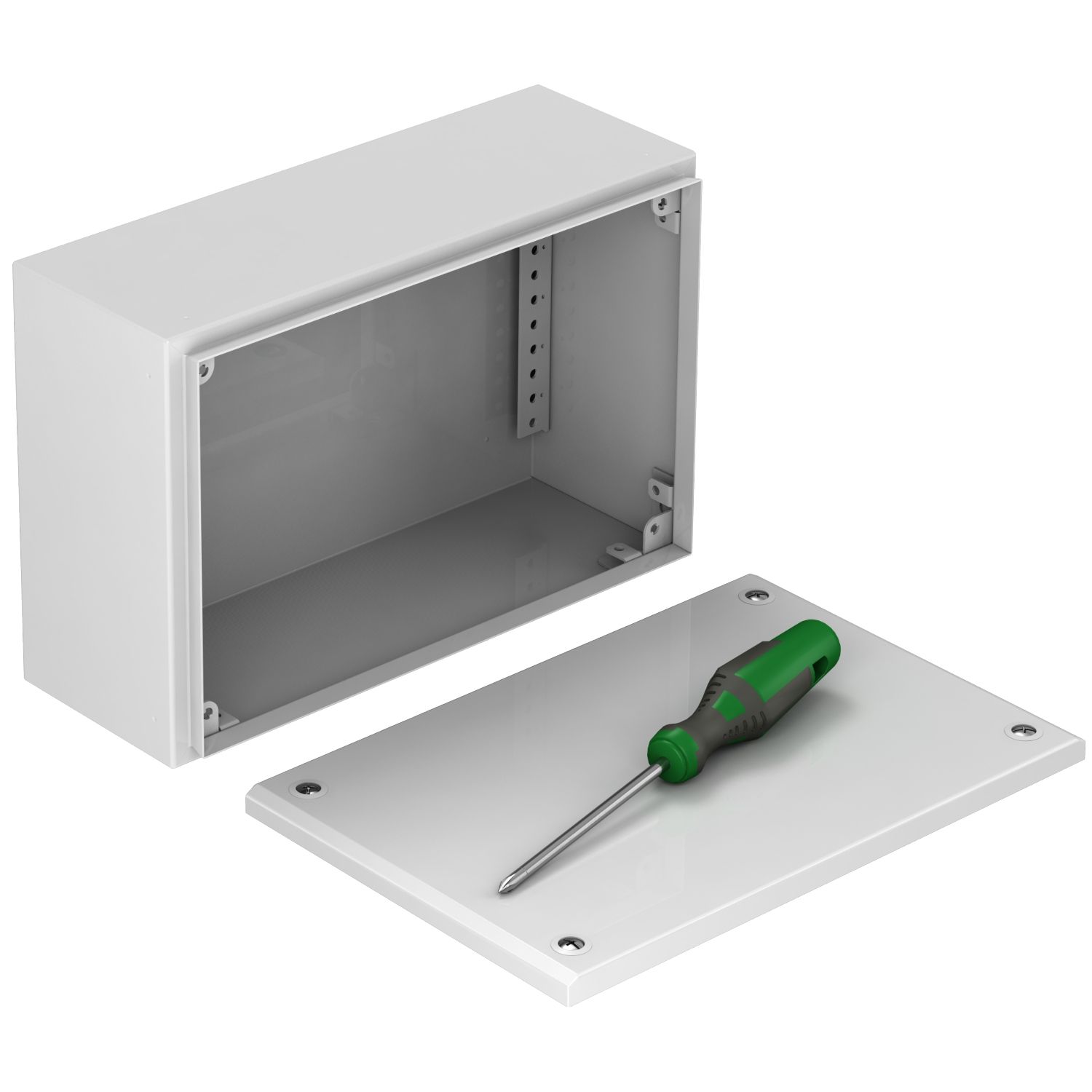

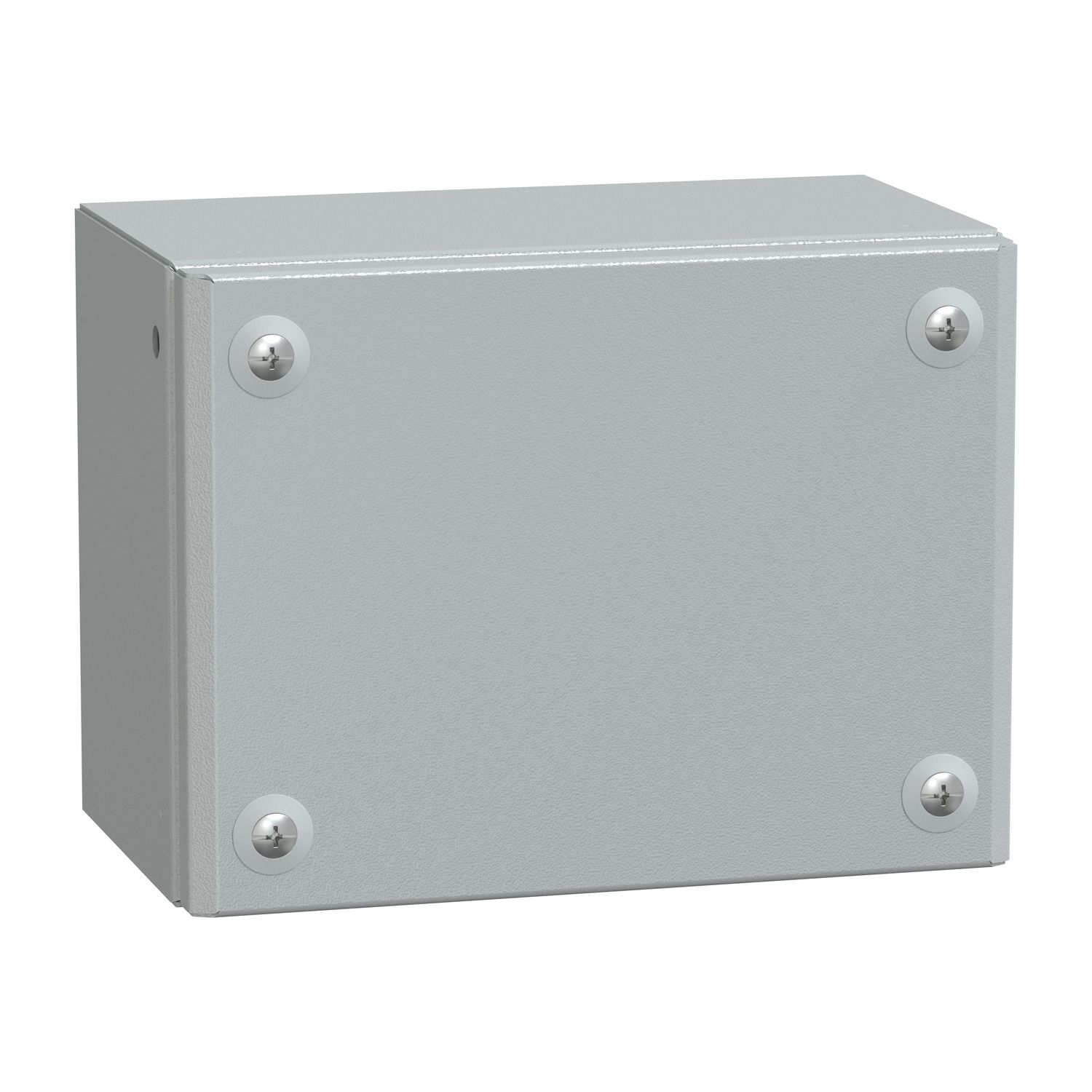

Metal industrial box plain door H150xW200xD120 IP66 IK10 RAL 7035

$82.20
Available for Shipping : 24-Nov-2024
Metal industrial box plain door H150xW200xD120 IP66 IK10 RAL 7035
Manufacturer: Schneider Electric
Industrial box for Spacial SBM. Multi purpose. 150 x 200 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of steel with polyester powder finish. Protection IP 66, IK10.

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 200 mm
Device short name SBM
Device application multi-purpose
Enclosure nominal depth 120 mm
Enclosure mounting wall mounted
Cover fixing half turn metal screw
Body type single piece body folded and welded
Range Spacial
Type of front cover plain door
Enclosure nominal height 150 mm
Device composition 1 body, 1 cover, 4 cover screw
Lock type captive screw PZ2 outside sealed area
Product name Spacial SBM
Enclosure type flat face box
Product or component type industrial box
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Material sheet steel
Ambient air temperature for storage -35-60 °C
Net weight 1.542 kg
IP degree of protection IP66 conforming to IEC 60529
Surface finish polyester powder
Standards IEC 62208
Ambient air temperature for operation -35-80 °C
IK degree of protection IK10 conforming to IEC 62262
Product certifications BV, UL, DNV-GL, LR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 17.0 cm
Package 1 Length 22.0 cm
Package 1 Weight 1.542 kg
Unit Type of Package 2 2
Number of Units in Package 2 155
Package 2 Height 180.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 275.0 kg
