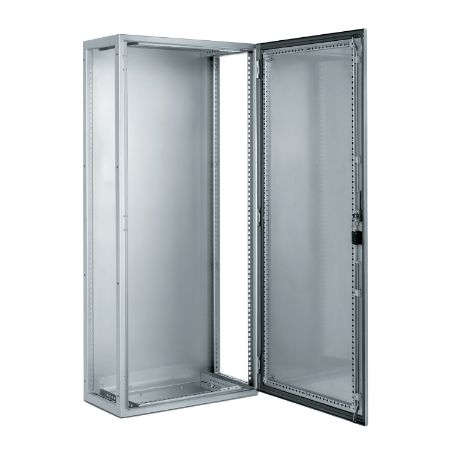

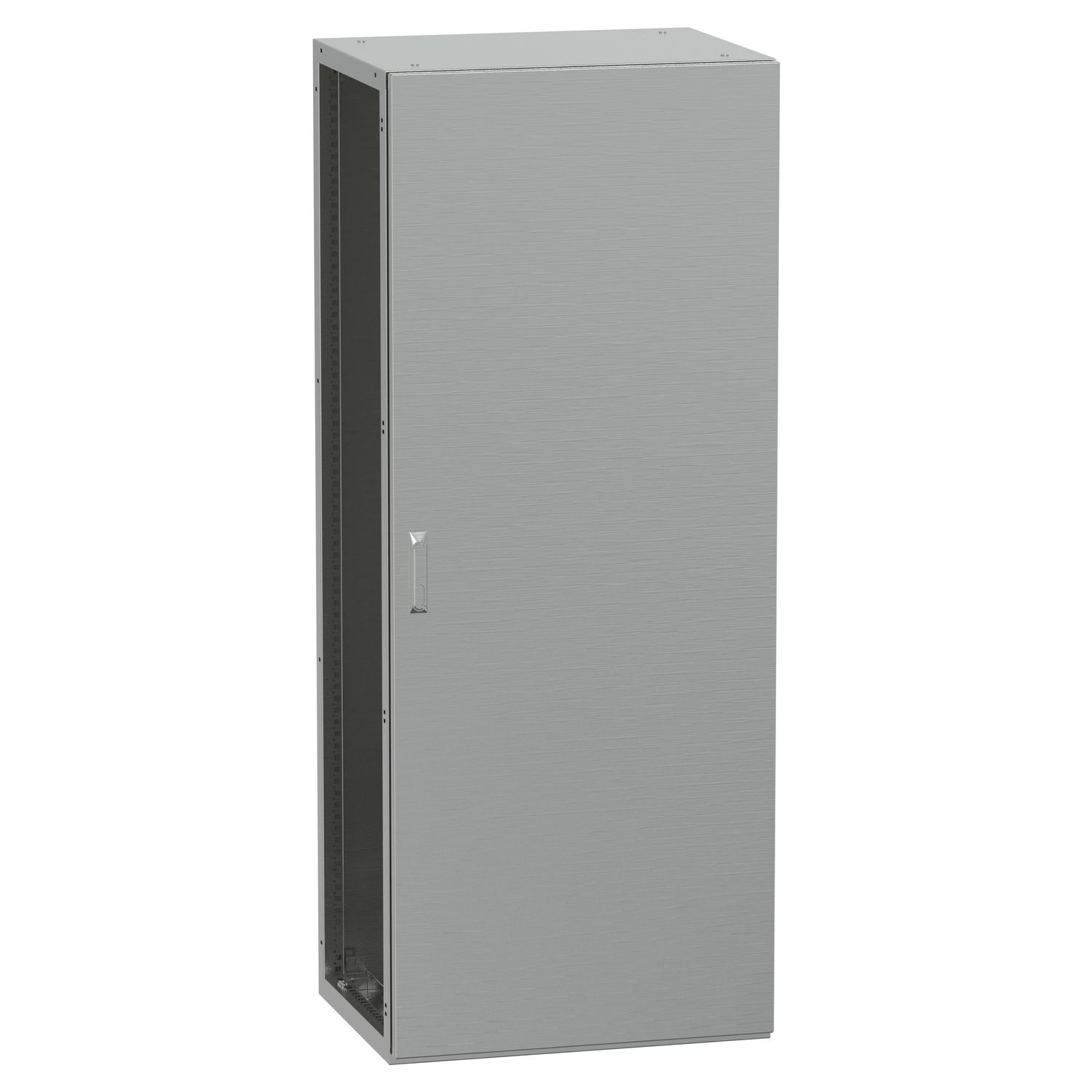

Picture of SFX 304L stainless suitable enclosure, H2000xW800xD600mm, Scotch Brite® finish.
SKU:

NSYSFX20860

SFX 304L stainless suitable enclosure, H2000xW800xD600mm, Scotch Brite® finish.

$5,949.35
Available for Shipping : 10-Mar-2025
Product Selector
SFX 304L stainless suitable enclosure, H2000xW800xD600mm, Scotch Brite® finish.
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
Spacial SFX is a versatile, multi-purpose floor-standing enclosure made of stainless steel 304L with a Scotch-Brite® brushed surface finish for superior corrosion resistance It is designed for use in harsh environments, and can withstand high impact, dust, and water with an IK10 (IEC62262) and IP66 (IEC60529) rating respectively This enclosure has a nominal height, width and depth of 2000mm, 800mm and 600mm respectively, and is composed of a single piece structure folded and welded with a rear panel integrated It has one plain door with reinforcement frame, four mounting plate brackets, a cable gland plate, and a three-point lock with a handle with 5mm double-bar insert The door is reversible, allowing it to open up to 120° for easy access to the equipment inside It has removable parts such as the door by hinges, the mounting plate bracket by screws, and the cable gland plate by clips The net weight of the enclosure is 81kg, and it is compliant with industry standards such as IEC 62208 and NEMA 4X

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 800 mm
Device application multi-purpose
Enclosure nominal depth 600 mm
Range Spacial
Enclosure nominal height 2000 mm
Device composition 1 door with reinforcement frame, 1 cable gland plate, 4 mounting plate bracket, 1 locking system with handle: door, 1 structure
Product name Spacial SFX
Product or component type suitable enclosure
Installation accessory type floor-standing
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish handle: painted, enclosure: Scotch-Brite® brushed
Material hinge: stainless steel, handle: zamak, structure and door: stainless steel 304L
Body type single piece structure folded and welded, rear panel integrated
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 81 kg
Lock type 3 points lock, handle with 5 mm double-bar insert
Type of gland plate plain
Removable parts cable gland plate by clips, mounting plate bracket by screws, door by hinges
Accessibility for operation side, front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic corrosive, specific hygiene
Standards NEMA 4X, IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 70.0 cm
Package 1 Width 85.0 cm
Package 1 Length 212.0 cm
Package 1 Weight 98.0 kg

Related products

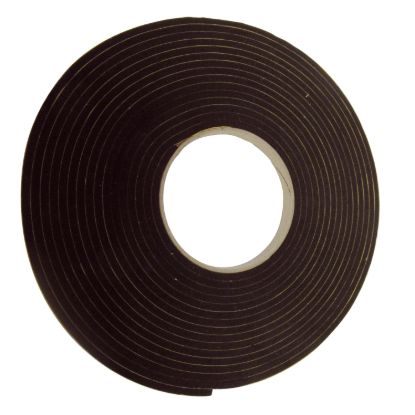

Picture of Rubber sealing gasket 4 x 9 for joining stainless steel enclosures SFX

Rubber sealing gasket 4 x 9 for joining stainless steel enclosures SFX

NSYSFXJG
$18.35
View Detail
Picture of 2 side panels stainless 304L, Scotch Brite® finish, for SFX H2000xD600mm

2 side panels stainless 304L, Scotch Brite® finish, for SFX H2000xD600mm

NSY2SPX206
$1,988.57
View Detail
Picture of Coupling kit for enclosures equipped with swinging 19" rack, PanelSeT SFN, Spacial SF, Set of 1

Coupling kit for enclosures equipped with swinging 19" rack, PanelSeT SFN, Spacial SF, Set of 1

NSYSFBK19
$55.32
View Detail

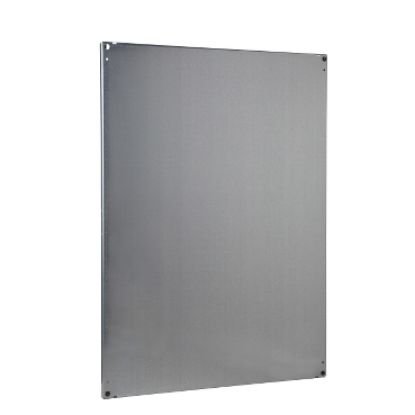

Picture of Plain mounting plate, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H2000 W800mm, galvanized steel
