SKU:

NSYSPF12200

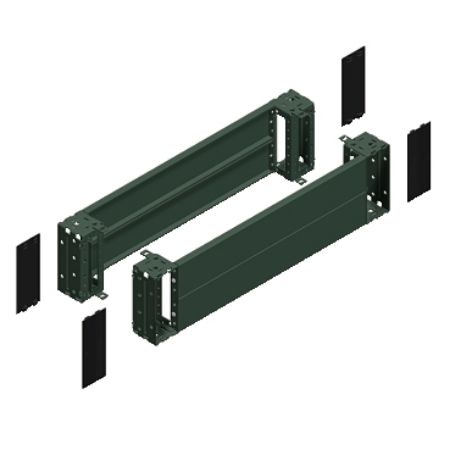

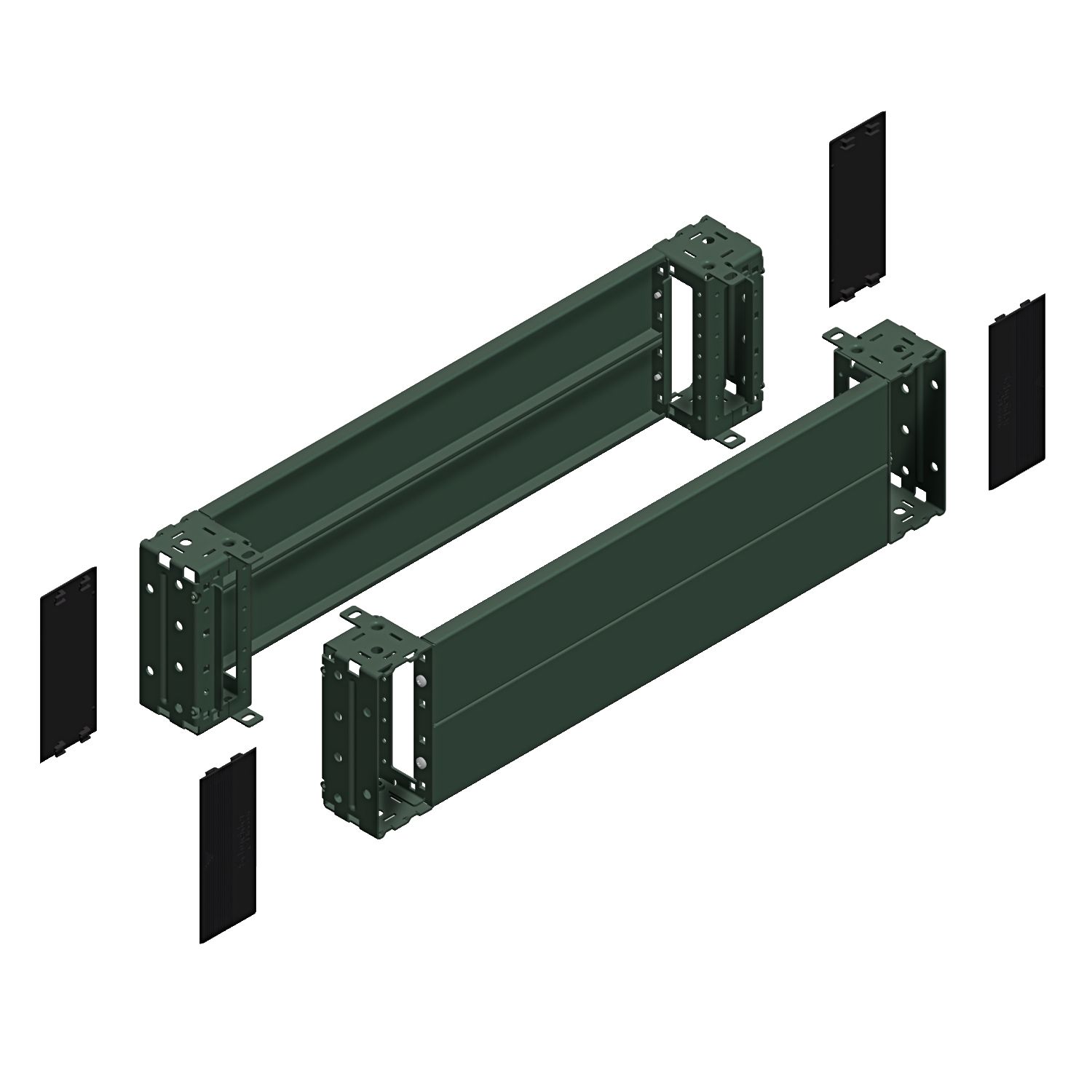

Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W1200mm , plinth H200mm

$164.22
Available for Shipping : 01-Jan-2025
Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W1200mm , plinth H200mm
Manufacturer: Schneider Electric
Front plinth for Spacial CRN, S3D, SF, SM, SD. 100 x 1200 mm. Multi-purpose enclosure accessory. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10 .

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Range Spacial
Accessory / separate part category enclosure accessory
Enclosure nominal dimensions -
Mounting support plinth side panels
Device composition 2 rear panel, 2 front panel, 4 corner, 4 corner cover, fixing elements
Product or component type plinth front
Range compatibility Spacial Spacial CRN, Spacial Spacial S3D, Spacial Spacial SD, Spacial Spacial SM, Spacial Spacial SF
Complementary
Colour grey (RAL 7022)
Width 1200 mm nominal:
Surface finish epoxy-polyester powder
Fixing mode by fixing element - on structure location
Permanent permissible load 1300 kg
Height 200 mm
Environment
IP degree of protection IP20 (complete plinth)
IK degree of protection IK10
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.500 cm
Package 1 Width 21.000 cm
Package 1 Length 121.000 cm
Package 1 Weight 14.641 kg
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 160.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 232.615 kg
