SKU:

NSYSPF8200

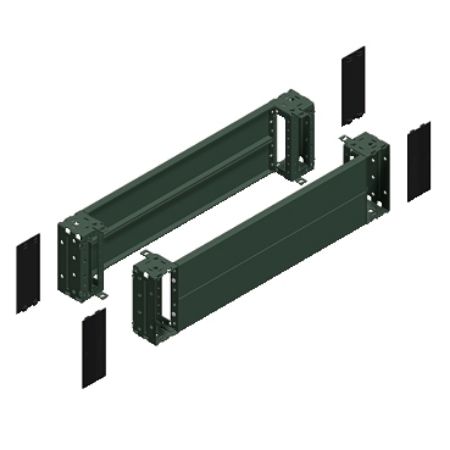

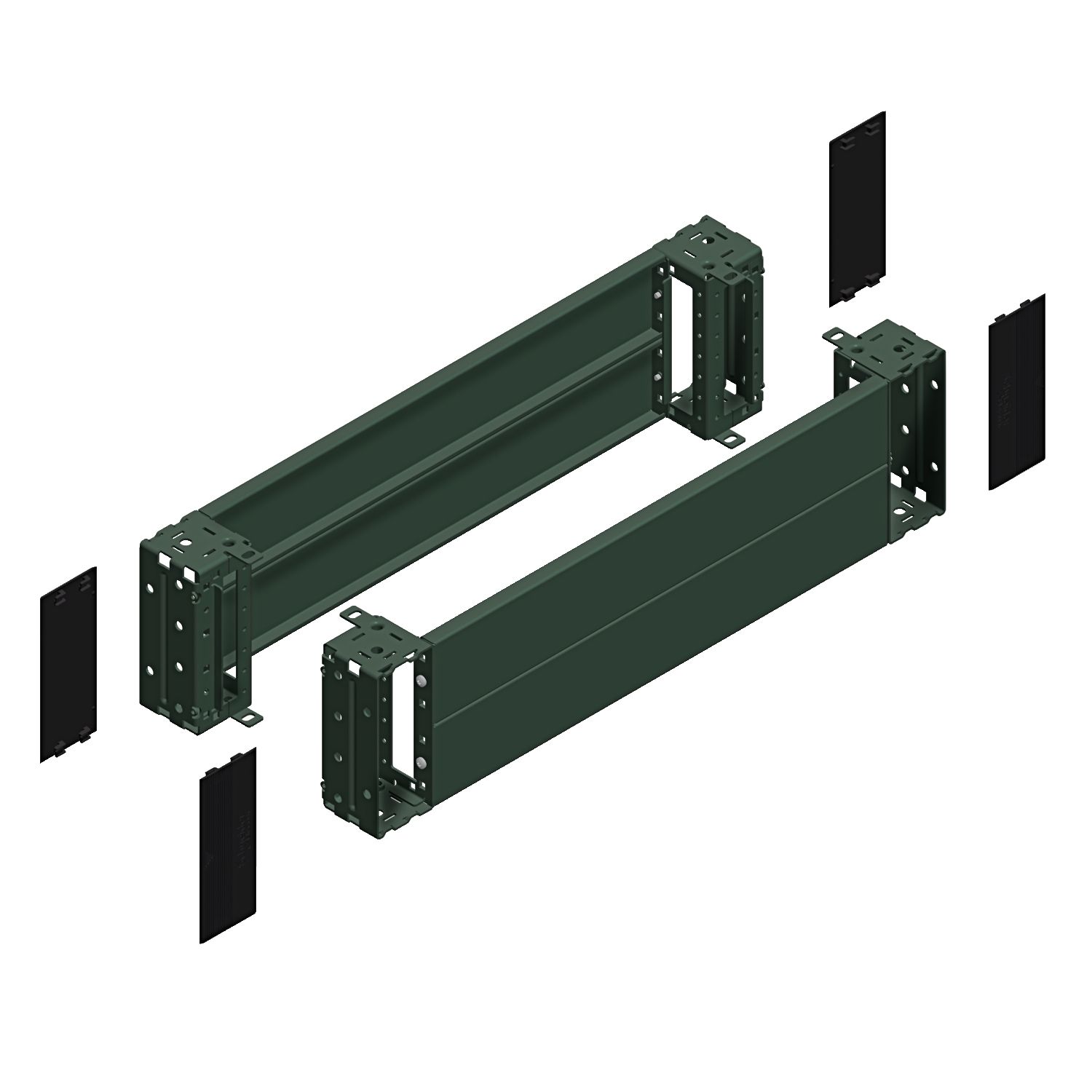

Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W800mm, plinth H200mm

$576.84
Available for Shipping : 01-Jan-2025
Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W800mm, plinth H200mm
Manufacturer: Schneider Electric
Front plinth for Spacial SF, SM. 200 x 800 mm. Multi-purpose enclosure accessory. Electronic and comparmentalised application. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.

Products specifications

Attribute name Attribute value
Main
Device application compartmentalised application, electronic application, multi-purpose
Range Spacial
Accessory / separate part category enclosure accessory
Enclosure nominal dimensions -
Mounting support plinth side panels
Device composition 2 rear panel, 2 front panel, 4 corner, 4 corner cover, fixing elements
Product or component type front and rear plinth
Range compatibility Spacial Spacial CRN, Spacial Spacial S3D, Spacial Spacial SD, Spacial Spacial SM, Spacial Spacial SF
Complementary
Colour grey (RAL 7022)
Width 800 mm nominal:
Surface finish epoxy-polyester powder
Fixing mode by fixing element - on structure location
Permanent permissible load 1300 kg
Height 200 mm
Environment
IP degree of protection IP20 (complete plinth)
IK degree of protection IK10
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 21.000 cm
Package 1 Length 81.500 cm
Package 1 Weight 9.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 160.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 265.000 kg
