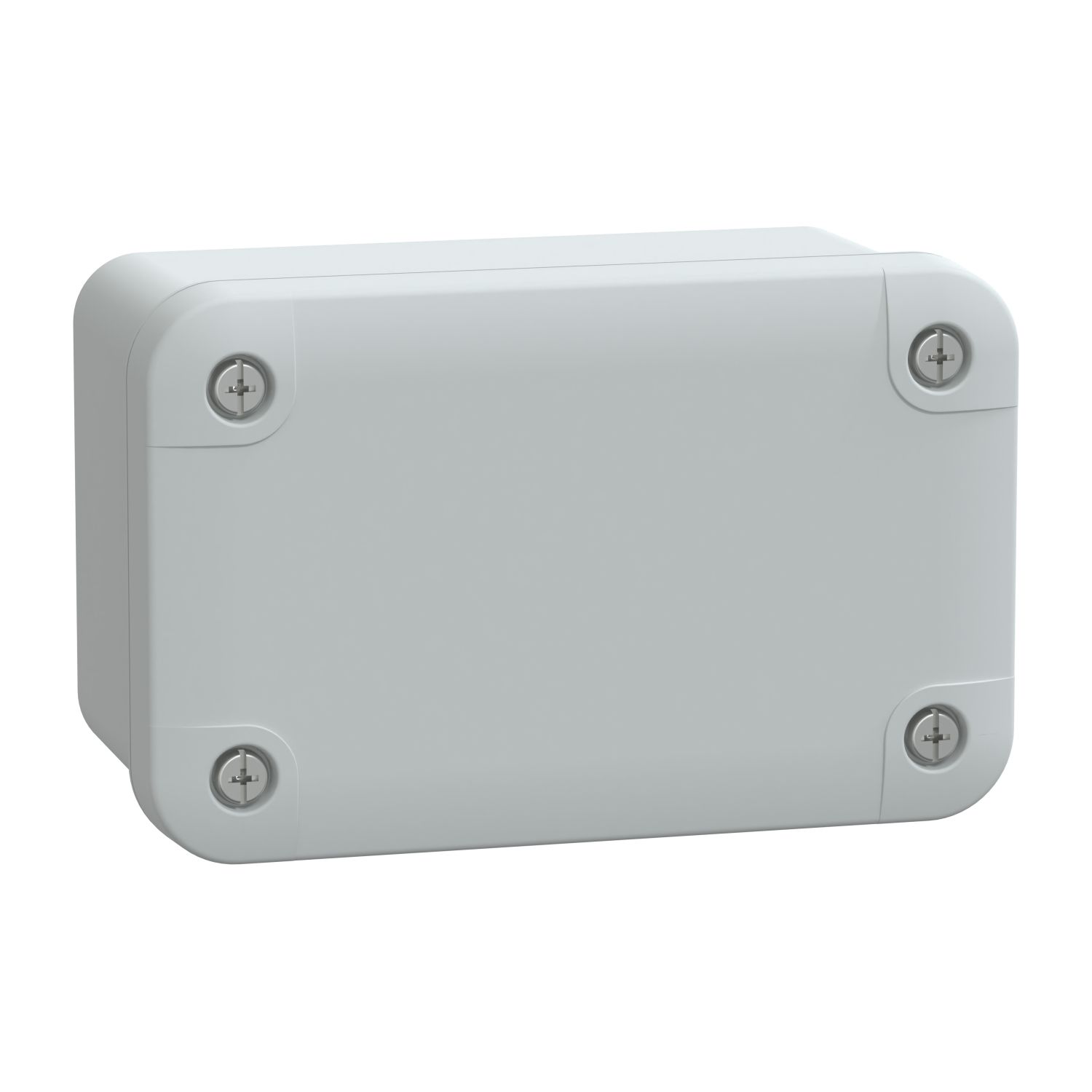

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10

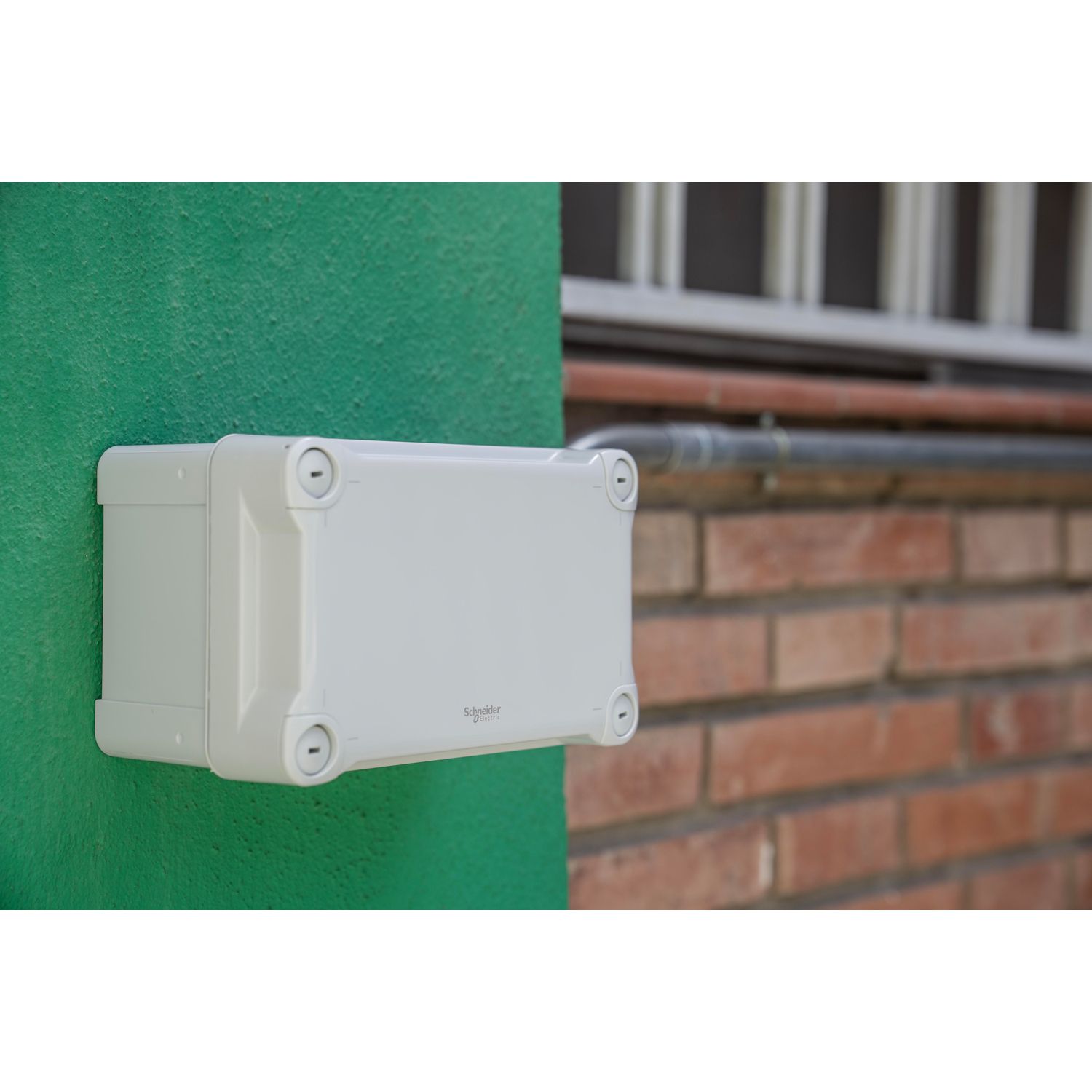

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10

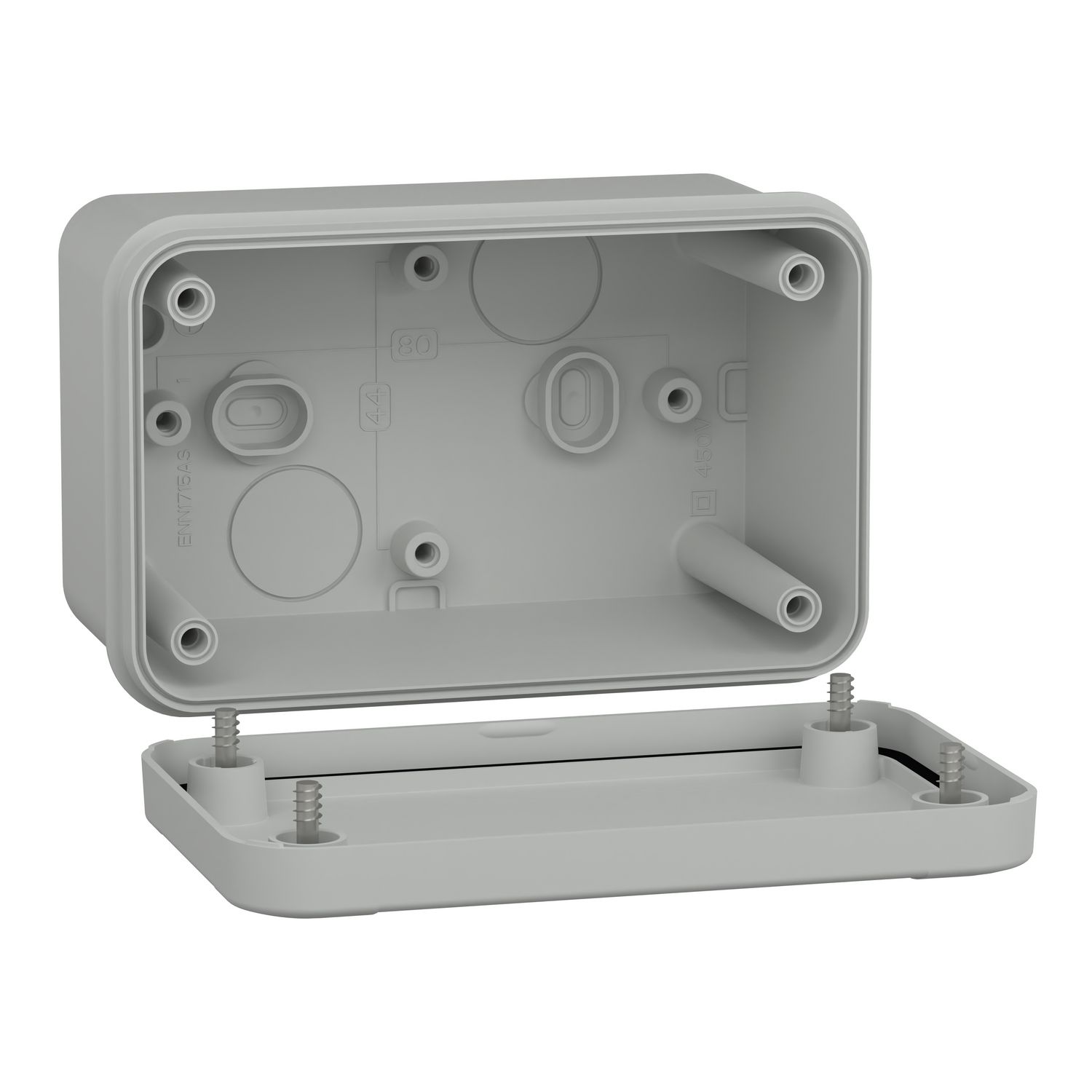

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10
SKU:

NSYTBP1176

Thalassa, PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10

$10.76
Available for Shipping : 24-Nov-2024
Thalassa, PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with opaque PC cover H10. Int is 105 x 65 x 55 mm. Ext is 116 x 74 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Quantity per set set of 5
Enclosure mounting wall mounted
Cover fixing metal screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 55 mm
Internal height 105 mm
Height 116 mm
Removable parts cover by captive screws
Depth 62 mm
Width 74 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBP
Internal width 65 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Electrical insulation class class II
Material polycarbonate
Net weight 0.124 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.7 cm
Package 1 Width 2.58 cm
Package 1 Length 6.68 cm
Package 1 Weight 124 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 33.4 cm
Package 2 Width 12.4 cm
Package 2 Length 8.5 cm
Package 2 Weight 620 g
Unit Type of Package 3 3
Number of Units in Package 3 105
Package 3 Height 60 cm
Package 3 Width 40 cm
Package 3 Length 40 cm
Package 3 Weight 14.26 kg
Unit Type of Package 4 4
Number of Units in Package 4 1260
Package 4 Height 120 cm
Package 4 Width 80 cm
Package 4 Length 135 cm
Package 4 Weight 184 kg
